Unicraft SSK 4
Professional Abrasive Sandblaster
825 L Cabin

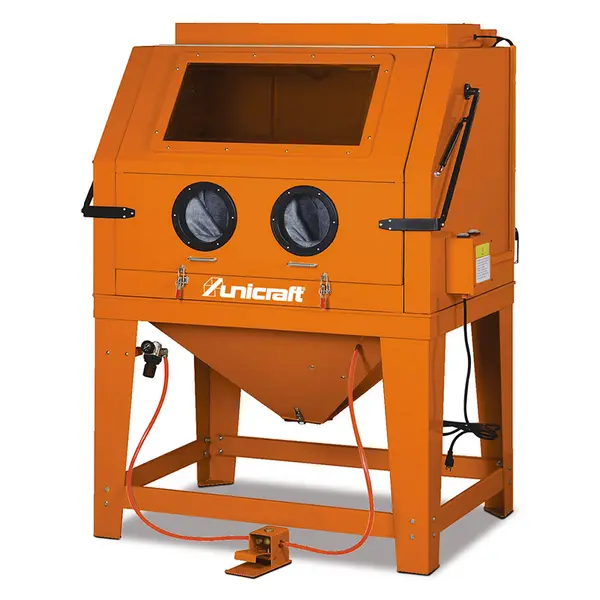

Unicraft SSK 4 - Abrasive Sandblaster Front Hood and Integrated Suction

The Unicraft SSK 4 abrasive sandblaster is a large sandblasting cabinet , which offers a perfect combination of power , efficiency and precision .

Featuring a spacious 825L cabin , this Unicraft sandblaster allows you to sandblast a wide range of parts and materials with ease and efficiency.

The operation of the Unicraft SSK 4 sandblaster is based on the use of compressed air. With an air consumption of 800 L/min and a maximum pressure of 8.6 bar, the user can precisely adjust the air flow according to the specific needs of the product to be blasted. This ensures optimal control of the process and effective removal of dirt, rust and paint from the treated surfaces.

The air hose , of standard 3/8" size, guarantees uniform distribution of the air inside the cabin, allowing uniform sandblasting over the entire surface of the piece. This helps to obtain consistent and high-quality results , reducing minimizing the need for subsequent finishing or touch-ups.

To use the Unicraft sandblaster, the operator wears personal protective equipment (PPE), in order to minimize exposure to abrasive materials. The sandblasting gun and an air compressor are connected to the SSK 4 sandblasting cabin: the compressed air generates a flow of air and abrasive material at high pressure which the user shoots onto the object to be treated through the gun.

Functional specifications

Cabin sandblaster for cleaning paint and rust

The Unicraft SSK 4 sandblasting cabin is ideal for removing rust or paint from metals of all kinds, including engine parts, crankcases, crowns, hinges, etc.

Suitable for quartz and glass spheres

This Unicraft SSK abrasive blasting cabinet is suitable for different materials including quartz , glass spheres , plastic spheres etc.

Latex gloves fixed to the structure

Attached to the professional sandblasting booth are high quality latex gloves, fixed to the structure.

Sandblaster with large loading and unloading doors

Unicraft SSK 4 is a sandblasting cabinet for professional use equipped with two large doors for loading and unloading on both sides.

Large opening front bonnet

The Unicraft SSK 4 shaving cabin has an upward opening front hood for easy and quick loading and unloading.

Integrated suction system

The Unicraft SSK 4 abrasive sandblaster is equipped with an integrated extraction system with replaceable air filter.

Air flow control with pedal

This sandblaster has a triggerless gun with air flow control via foot control.

Pressure adjustment gauge and equipment

Equipped with a pressure gauge for pressure regulation , the Unicraft LTF sandblaster is also equipped with 4 230V lamps separated by protective casing and replaceable film, with 5 spare films .

Technical specifications

Abrasive core from 0.12 - 0.42 mm

The abrasive core used in this booth ranges in size from 0.12 to 0.42, which ensures optimal grain size for a variety of sandblasting applications. This size range allows you to select the abrasive material best suited to the specific needs of the project, ensuring effective removal of dirt and impurities from the treated surface.

Sandblasting cabin internal weight 150 kg

The LTF SSK 4 cabin is designed to support a maximum weight of 150kg within the grate of the Unicraft SSK 4, allowing even objects of considerable size and weight to be handled safely and stably during the blasting process. Furthermore, the maximum weight of the blasting agents supported is 75kg, ensuring that the operator can handle the abrasive material efficiently and without risk of overloading.

Operating pressure 8 bar

This LTF SSK 4 sandblaster has a working pressure that varies from 3.4 to 8 bar.

UNICRAFT - sandblasting experts

Unicraft is a leading German company in handling and lifting equipment, promoting technologies for industry, workshops and commerce, including professional abrasive sandblasters. This Made in Germany brand stands for high technical quality.

Characteristics

• Professional sandblasting cabin
• 825 L cabin volume
• Suitable for different materials such as quartz, glass spheres, plastic spheres
• Removes rust and paint
• Latex gloves fixed to the structure
• Foot pedal for flow control
• Sturdy support surface
• Large front bonnet that opens upwards for easy loading/unloading
• Integrated intake system with air filter

Standard equipment

• Air gun with 4 ceramic nozzles (4/5/6/7 mm)
• 5 safety window protection films
