LTF GSD12000EP-SE
Generatore Diesel Equal Power

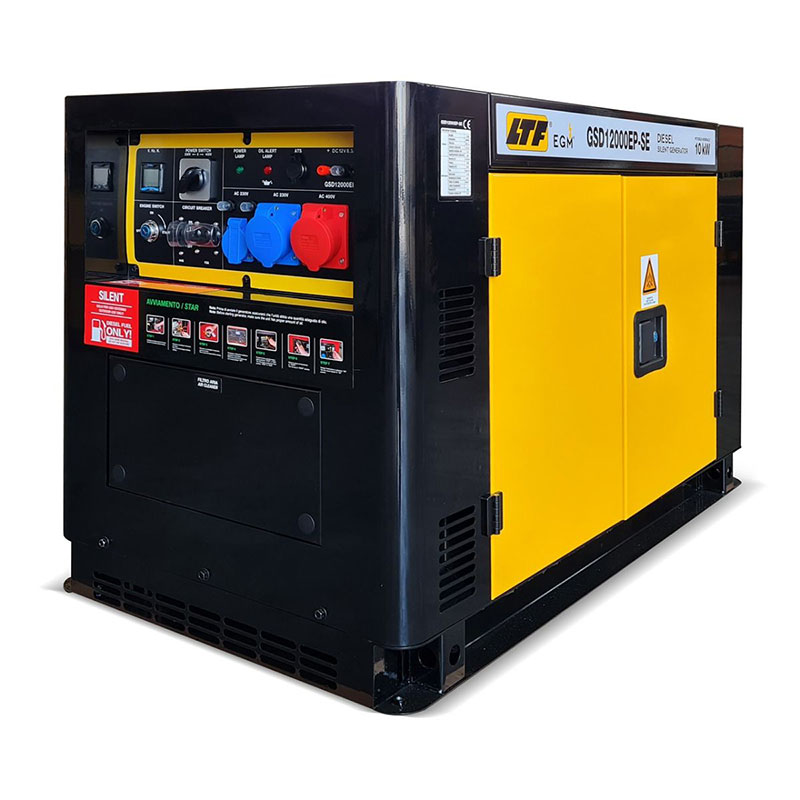

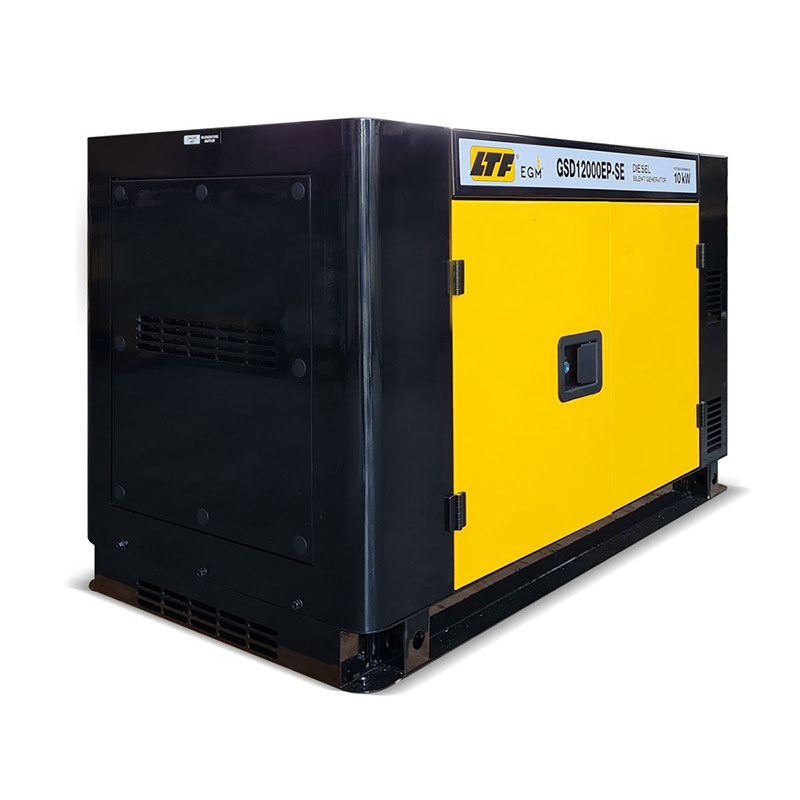

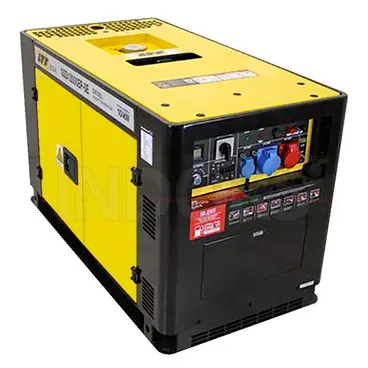

LTF GSD12000EP-SE - Silenced Diesel Generator

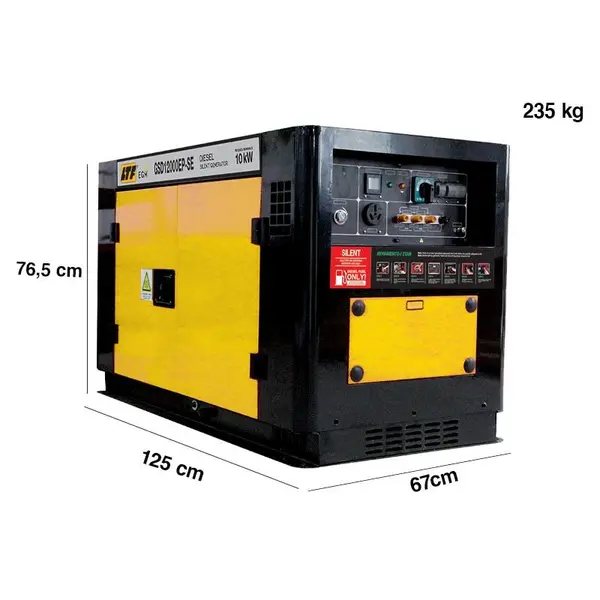

The LTF GSD12000EP-SE power generator is diesel powered and silenced , making it a product with excellent performance. It is a product with considerable dimensions and a total weight of 235 kg.

LTF GSD12000EP-SE is equipped with a battery electric starter which makes it very convenient and fast , an ideal product for connecting and powering electronic devices that are affected by voltage fluctuations, thanks to the AVR voltage regulator.

The AVR allows greater voltage and frequency stability regardless of the load and motor rotation, reducing current drops or peaks.

The generator supplies single-phase and three-phase mains voltage on:

• 1X32A/230V
• 1X16A/230V
• DC 12V 8
• 3A

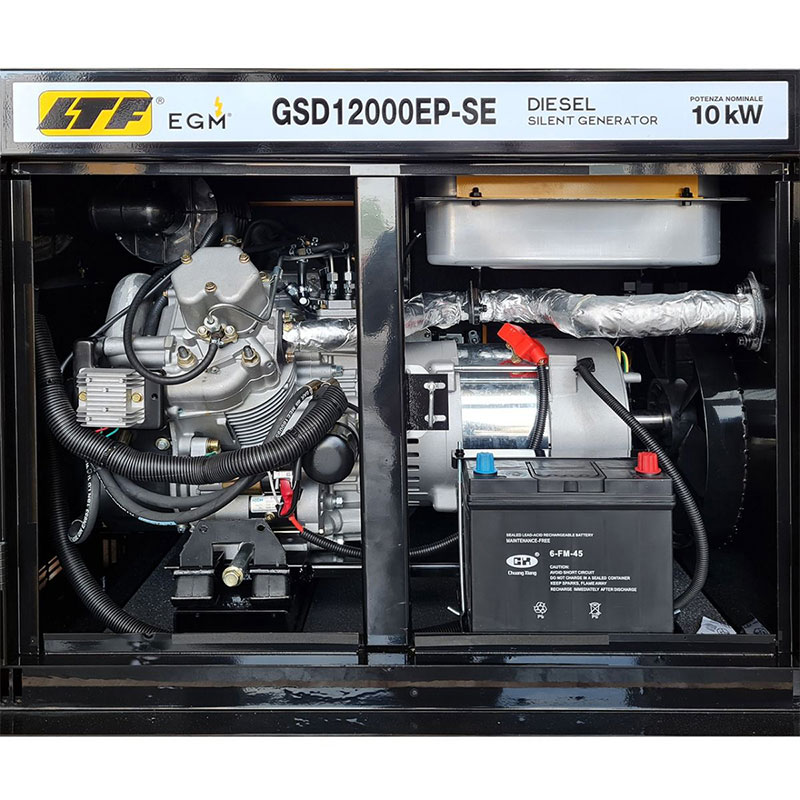

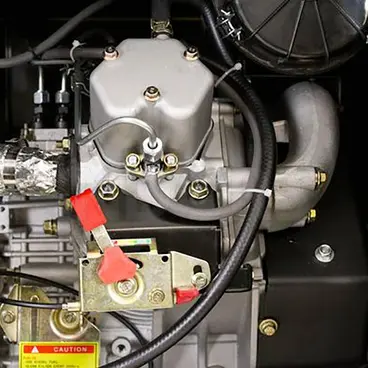

Thanks to the 870 cc engine with 26 L diesel tank; this fuel allows you to work for a long time and is capable of generating 11 kW of maximum power, while the nominal power is 10 kW . This model is equipped with an electronic accelerator , thanks to which the car machinery regulates power delivery based on demand.

This generator produces 65 (dBA) at 7 meters away, while as regards performance this generator is able to work for 4 hours at 50% of the load , it also has the possibility of being connected to the ATS automatic panel .

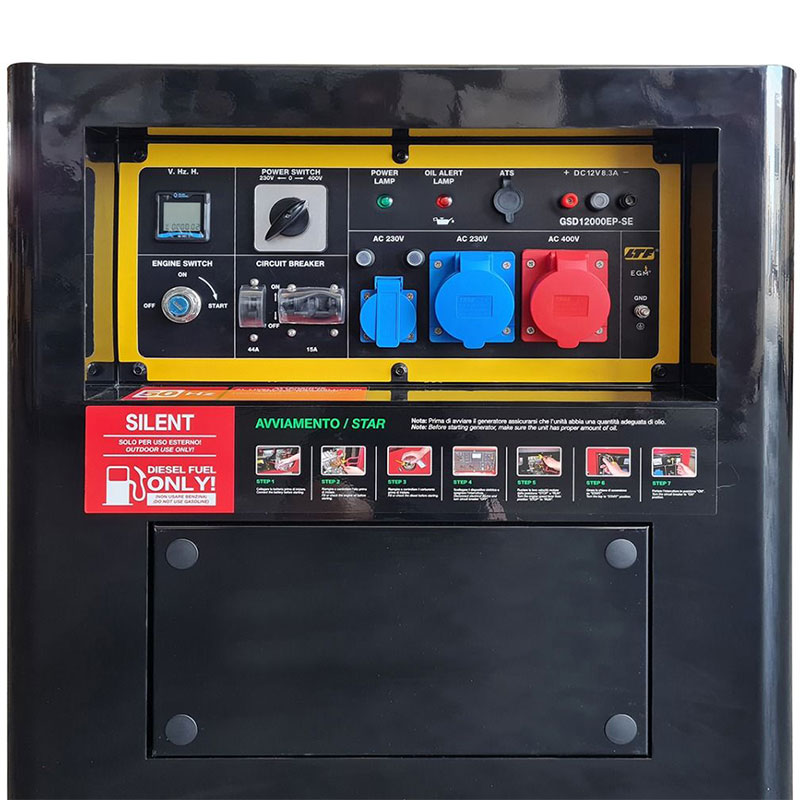

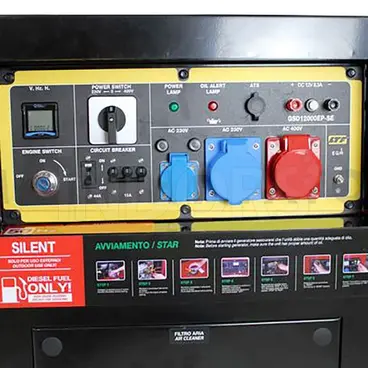

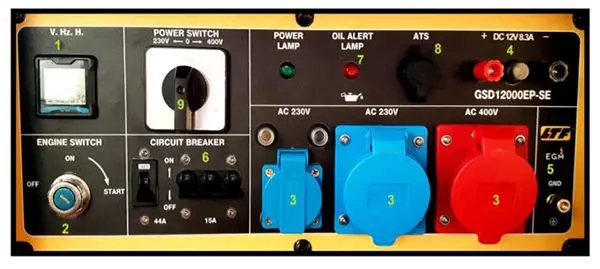

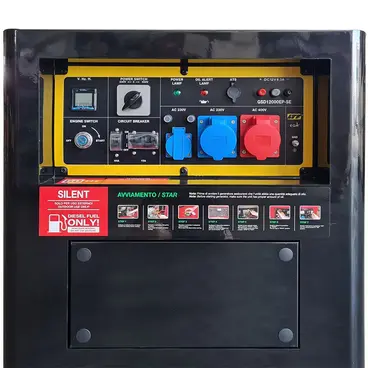

Control Panel

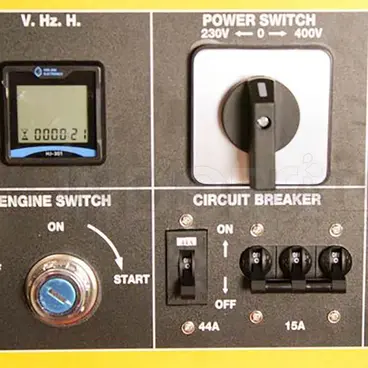

• 1) Digital hour, voltage and frequency counter
• 2) Electric start with key
• 3) AC 230V / 400V outputs
• 4) DC 12V/8.3A
• 5) Earth terminal
• 6) Circuit breaker
• 7) Oil alarm light
• 8) ATS connection
• 9) 230V / 400V selector

Equal Power functionality

This generator is able to deliver the same power working in single phase or three phase , which would not be possible without this special Equal Power feature.

Upon arrival, before ignition, it is necessary to introduce oil and petrol.

Characteristics

• 870 cc petrol engine
• Voltage regulation system with AVR card
• Battery electric starter
• Equal Power functionality
• Electronic accelerator
