Eco Fresh Air HVLS Milano Design
Ceiling Fan for Residential Use
Reversible Summer/Winter

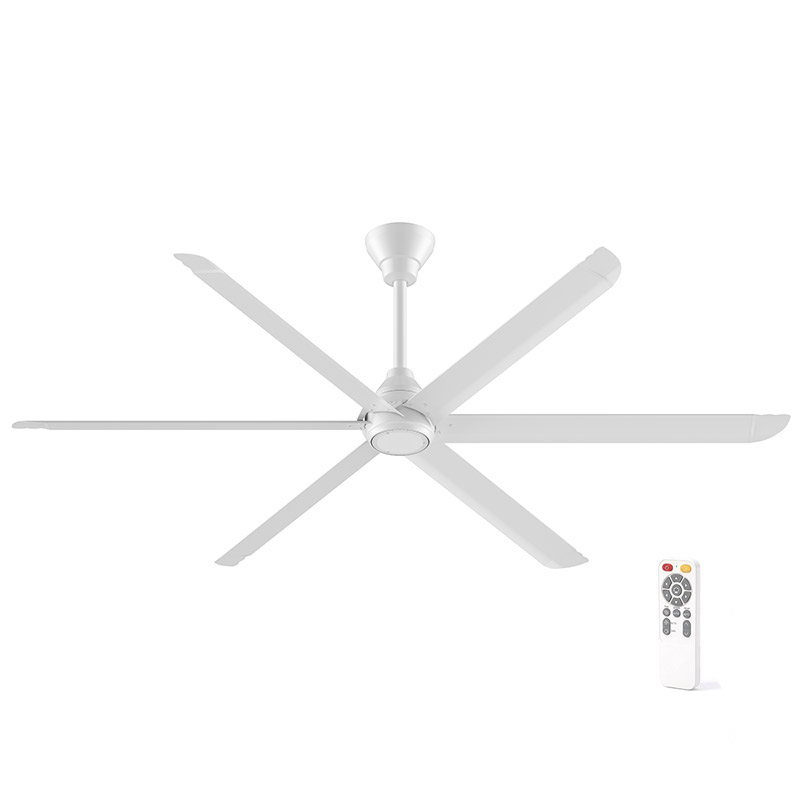

Eco Fresh Air HVLS Milano Design - Ceiling Fan for Residential and Commercial Use

The Eco Fresh Air HVLS Milano Design fan is an advanced solution for ventilation in commercial and residential environments, combining energy efficiency, silence, and high performance. Designed to ensure maximum comfort year-round, this system uses HVLS (High Volume Low Speed) technology to move large volumes of air with low consumption. The reversible function allows for optimal use both in summer, promoting natural ventilation, and in winter, improving the distribution of accumulated heat. Thanks to its robust construction and the use of high-quality materials such as aluminum and magnesium alloy, the fan ensures long-lasting durability and easy maintenance. Ideal for installations between 3 and 6 m in height , Eco Fresh Air Milano Design also stands out for its elegant design and ease of installation, making it a reliable and modern choice.

REVERSIBLE SUMMER/WINTER FUNCTION
Ventilated area 100-200 m²

Available models

• 4/20 code V4420 : 2-meter blade diameter, 0.11 kW motor, air flow rate up to 127,800 m3/h
• 4/30 code V4430 : 3-meter blade diameter, 0.28 kW motor, flow rate up to 201,600 m3/h

Functional specifications

Ceiling fans for residential and commercial use

The Eco Fresh Air HVLS Milano Design fan uses a permanent magnet synchronous motor with an external rotor , designed for high performance and low consumption. It ensures stable, quiet operation without any loss of efficiency. The absence of gears and lubrication reduces maintenance , increasing its durability. Furthermore, it ensures high torque even at low speeds, ideal for moving large volumes of air uniformly.

6 blades in aluminum and magnesium alloy

Eco Fresh Air HVLS Milano Design features 6 blades made of aluminum and magnesium alloy . The blades are lightweight and easy to clean; the reinforced structure ensures greater resistance to deformation.

Reversible Summer/Winter Function

The reversible function allows the fan to be used in any season . In summer, it generates natural ventilation, reducing the perception of heat. In winter, however, it helps redistribute heat downward, improving the energy efficiency of the rooms.

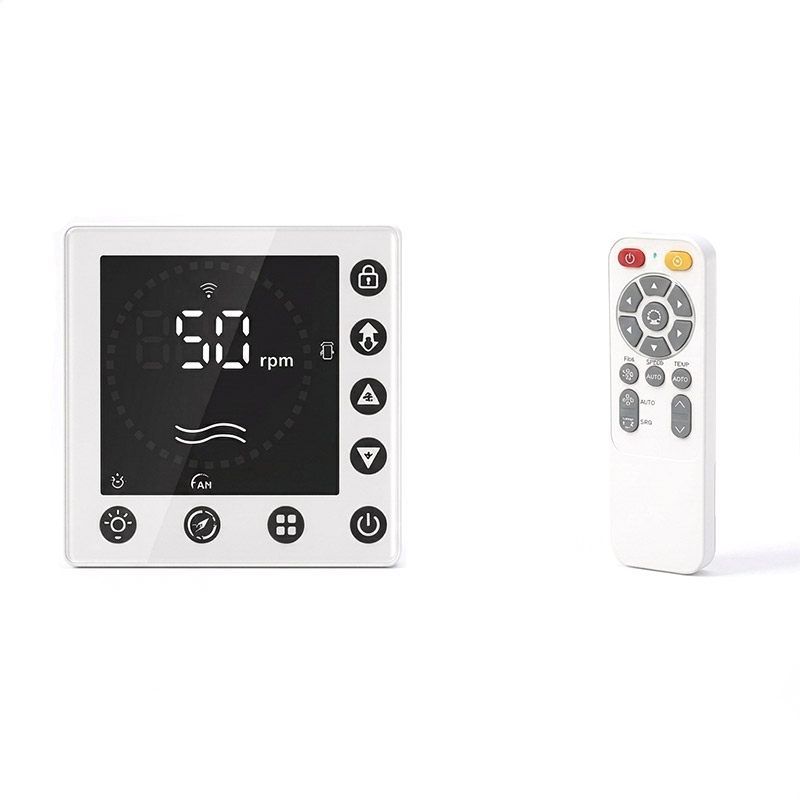

OPTIONAL CONTROLLER - REMOTE CONTROL SUPPLIED AS STANDARD

Safety system with suspension bar structure

The reinforced frame and sturdy suspension bar ensure maximum safety and stability. The aluminum and magnesium alloy blades resist deformation and improve reliability. The fan complies with CE regulations and can be installed from 3 to 6 meters.

Energy Efficiency and Acoustic Comfort

This fan for civil use has extremely silent operation <36 dB and top-of-the-range efficiency with air flow ranging from 127800 m3/h for the 4/20 and 201600 m3/h for the 4/30.

Standard equipment

• Controller control unit
• Standard anchoring kit
• Wired collectors
• Dowels
• Remote control

Characteristics

• Industrial and civil fans
• High efficiency HVLS technology
• Reversible Summer/Winter Function
• 6 blades in aluminum and magnesium alloy
• Permanent magnet synchronous external rotor motor
• Safety system with suspension bar
• Remote Control Included
• Controller Control Unit as OPTIONAL
• PMSM IP64 brushless motor
• Installation height 3.5/6 m
