Nuair B3800 100C SIL
Compressore a Pistoni 100L
€1,065.00
€872.95 tax excl.
| or in 3 rates from 355.00 € with |  |
library_add more options
230V - 2 ÷ 3 HP
10 bar - 283 ÷ 390 L/min - 69 dB(A)
100 L tank
Warranty 2 years
14 days to change your mind
Shipped on Pallet

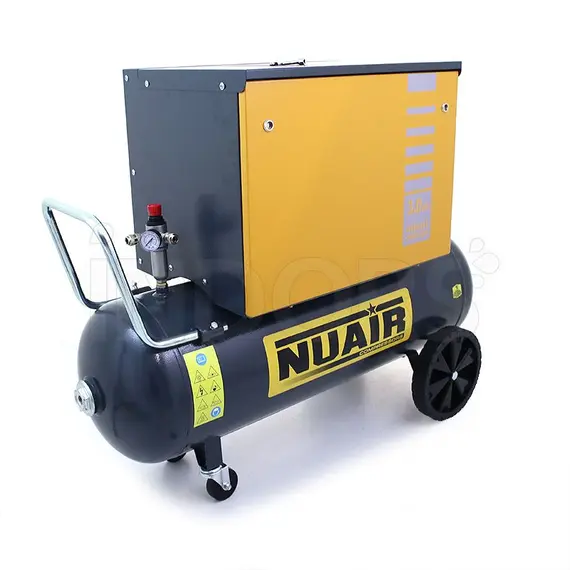

Nuair B3800 100C SIL - Silenced Piston Compressor
Nuair B3800 100 C SIL is a silenced professional piston compressor . The new range of NUAIR silencers is the result of recent technology and design studies.
The Nuair B3800 100 C SIL compressor is available in three versions, which can be selected from the drop-down menu:
- B3800/2M/100C SIL cod. 36FR404NUA - 2 HP / 1.5 kW
- B3800/3M/100C SIL cod. 36FR504NUA - 3 HP / 2.2 kW
- B3800/3T/100C SIL code 36FR541NUA - 3 HP / 2.2 kW
Made to solve the noise problem in the workplace, these compressors stand out for their very low noise level . Noise reduction was obtained by enclosing the machine in a soundproof cabinet with special sound-absorbing panels.
Nuair B3800 100 C SIL the combination of high quality materials and maximum accuracy in the assembly of the machine ensure excellent performance and long life . The range of silenced compressors has been entirely designed and manufactured in Italy.
Functional specifications
100 L tank
Nuair B3800 100 C SIL compressor with 100 L tank has a power of 2 ÷ 3 HP , 1.5 ÷ 2.2 kW at 800 ÷ 1100 RPM with pressure 10 bar . Oil lubrication.
Intake air 283 ÷ 390 L/min . B3800 pump unit .
Total accessibility of components
Nuair B3800 100 C SIL has total accessibility to mechanical parts.
Silent operation
This compressor has a very low noise level: 69dB .
Nuair: Italian excellence in compressed air
.jpg)
Synonymous with innovation , design and technology , Nuair is an Italian excellence which, thanks to its consolidated experience in the compressed air sector, has become the largest manufacturer in the world of piston compressors and among the major manufacturers of screw compressors. Established on the market thanks to the great innovative propulsion , design and dynamism of its compressors, Nu Air combines high technical quality of the compressors, with the search for new technical solutions to satisfy the professional, the craftsman and the hobby user.
Characteristics
- Power supply 230V ÷ 400V
- Piston compressor
- Silenced
- 100 L tank
- Electric motor 2 ÷ 3 HP
- Pressure 10 bars
- High technical quality Made in Italy
- B3800B pump unit
- Flow rate 283 ÷ 390 L/min
Standard equipment
- Attack
- Instruction manual
Technical data
| Code | 36FR404NUA | 36FR504NUA | 36FR541NUA |
| Pump group | B3800 | B3800 | B3800 |
| Power Supply | 230V | 230V | 400V |
| Absorbed power | 1.5 kW | 2.2 kW | 2.2 kW |
| Horses | 2hp | 3 HP | 3 HP |
| Tank capacity | 100L | 100L | 100L |
| Number of Cylinders | 2 | 2 | 2 |
| Number of laps | 800RPM | 1100RPM | 1100RPM |
| Scope | 283 L/min | 390 L/min | 390 L/min |
| pressure max | 10 bars | 10 bars | 10 bars |
| Lubricated | Yes | Yes | Yes |
| Noisiness | 69dB(A) | 69dB(A) | 69dB(A) |
| Dimension | 120x47x100cm | 120x47x100cm | 120x47x100cm |
| Weight | 109kg | 109kg | 110kg |
Technical data
| Code | 36FR404NUA | 36FR504NUA | 36FR541NUA |
| Pump group | B3800 | B3800 | B3800 |
| Power Supply | 230V | 230V | 400V |
| Absorbed power | 1.5 kW | 2.2 kW | 2.2 kW |
| Horses | 2hp | 3 HP | 3 HP |
| Tank capacity | 100L | 100L | 100L |
| Number of Cylinders | 2 | 2 | 2 |
| Number of laps | 800RPM | 1100RPM | 1100RPM |
| Scope | 283 L/min | 390 L/min | 390 L/min |
| pressure max | 10 bars | 10 bars | 10 bars |
| Lubricated | Yes | Yes | Yes |
| Noisiness | 69dB(A) | 69dB(A) | 69dB(A) |
| Dimension | 120x47x100cm | 120x47x100cm | 120x47x100cm |
| Weight | 109kg | 109kg | 110kg |
