ABAC S A39B 150
3 HP 150 Liter Silent Compressor
230/400V - 3 HP
10 bar - 393 L/min
Serbatoio 150 L
€1,199.00
€982.79 tax excl.
Warranty 2
years
Shipped on Pallet

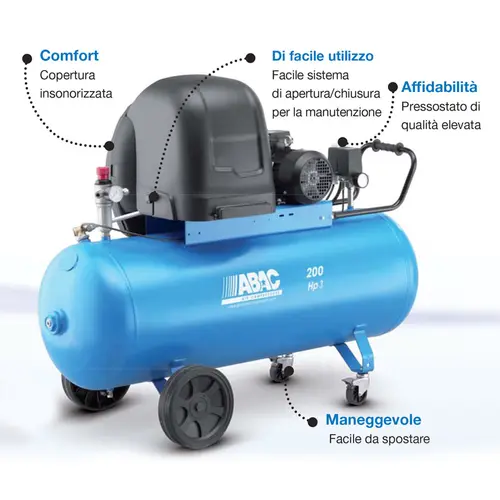

ABAC S A39B 150 CM3/CT3 - Three-Phase Silent Compressor
ABAC S A39B 150 silenced compressor, available in single-phase CM3 or three-phase CT3 versions , is made in Italy and is always ready to support you in your work, offering high-level performance. This compressor is equipped with an acoustic hood above the pump unit to reduce noise.
Available Models
- Three-phase: CT3 - 400V - 3 HP trolley (S A39B 150 CT3)
- Single phase: CM3 - Wheeled 230V - 3 HP (S A39B 150 CM3)
Characteristics
- Trolley for professional use
- Maximum pressure 10 bar
- Innovative belt guard design for improved cooling airflow
- Intake air capacity 393 L/min
- 150-litre steel tank
- 3 HP (2.2 kW) induction motor
- Low rotation speed: 1050 RPM (to ensure low operating temperatures )
- Ideal for professional use
- Belt drive - Drive pulley with ventilation fins
- Single-Stage Two-Cylinder Pumping Unit
- Ball valve
- Double front foot: maximum stability - anti-tipping
Advantages of a silenced ABAC S A39B 150 CM3/CT3 compressor
- Silent operation
- High performance
- Ease of Maintenance
- Limited footprint
- It can also be installed inside environments where low noise impact is required: the condensation and cold start problems typical of compressors installed outdoors are eliminated .
Pumping group
ABAC pumping units are the result of advanced technology and are unique in terms of reliability, durability, low operating temperatures, and efficiency.
ABAC pumping units use innovative materials with a low friction coefficient and high resistance to use:
- oversized oil sumps
- cast iron cylinders for longer life
- die-cast aluminum heads for better heat dissipation
- high-strength stainless steel reed valves ,
- aluminum final cooler with fins
Technical Data
| CM3 | CT3 | |
| Power Supply | 230V | 400V |
| Power Absorbed | 3 HP - 2.2 kW | 3 HP - 2.2 kW |
| Tank Capacity | 150 L | 150 L |
| Number of Cylinders | 2 / SINGLE STAGE | 2 / SINGLE STAGE |
| Number of Turns | 1050 RPM | 1050 RPM |
| Flow rate | 393 L/min | 393 L/min |
| Max Pressure | 10 bars | 10 bars |
| Noise at 4m | 71 dB | 71 dB |
| Size | 137.5 x 42 x 103 cm | 137.5 x 42 x 103 cm |
| Weight | 90 kg | 90 kg |
