Fiac AB 150-3 MC
150 L Belt Driven Compressor

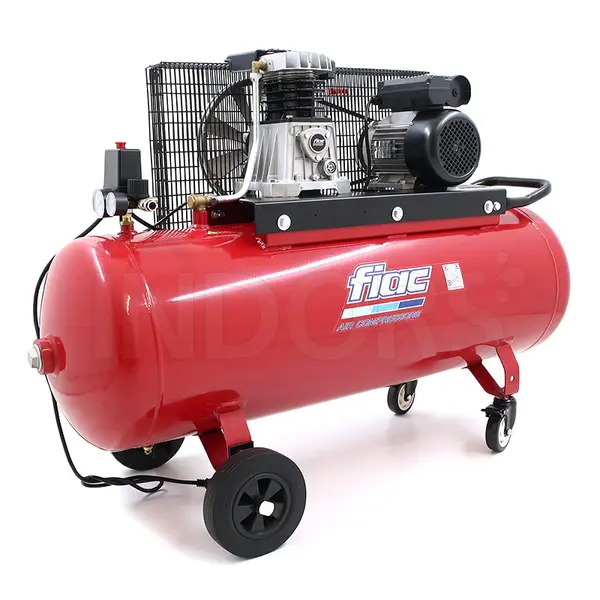

Fiac AB 150-3 MC - 150 L belt-driven trolley compressor

The 150 litre Fiac AB 150 air compressor is an ideal compressor for professional and industrial use, positioned among the most competitive belt compressors on the market. Equipped with a trolley with wheels and handle , this Fiac AB 150/348 compressor combines high performance and energy efficiency, guaranteeing greater durability over time. This Fiac compressor works at a low rotation speed with reduced vibrations and lower noise than similar models on the market.

The Fiac AB 150-3 MC compressor has a 150 litre tank and is equipped with an AB348 pump unit. With an air flow rate of 260 L/min at a maximum pressure of 10 bar, it has a power of 3 HP .

Fiac is a leading Italian brand in the production of compressed air machines. The company is certified according to the latest EU regulations, ensuring reliable professional quality.

Functional Specifications

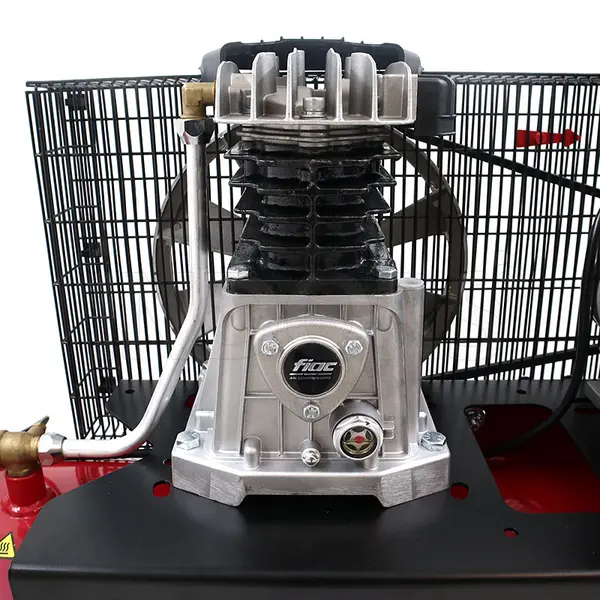

AB 348 Pumping Group

This belt-driven piston compressor is oil-lubricated and ideal for professional use . The Fiac AB 150 compressor is a single-stage compressor equipped with an AB348 pump unit with a twin-cylinder head with cast iron cylinders . Thanks to the low revolutions of the pump unit, which works at 1300 rpm , this compressor guarantees greater durability over time.

When choosing the best compressor for industrial use it is important to evaluate the number of revolutions: in fact, the lower this value, the longer the compressor will last over time.

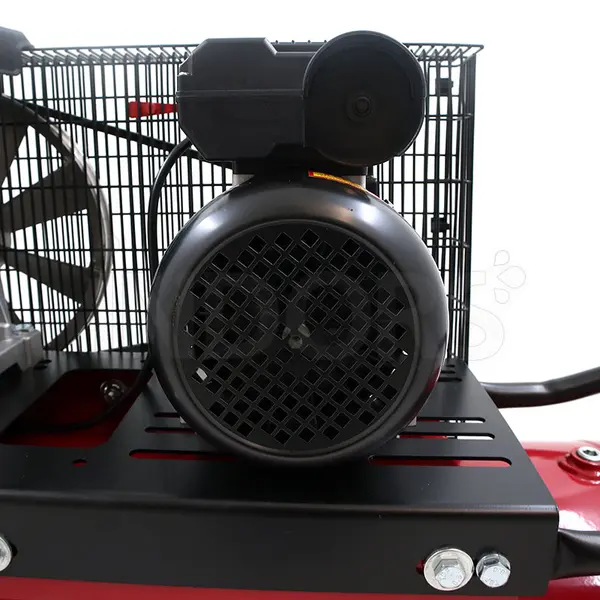

Electric Induction Motor

The Fiac AB 150-3 MC Brushless Motor is an electric induction type with maximum power of 3 HP (2.2 kW). Single-phase 230V power supply.

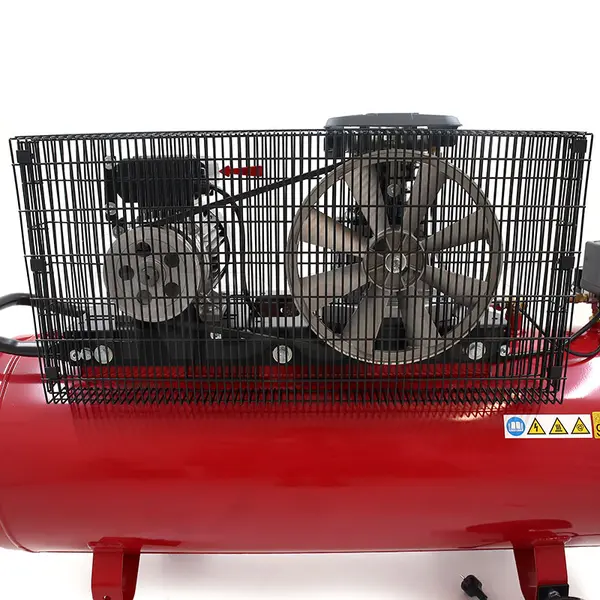

Belt Drive

The presence of the belt transmission contributes to a longer life of the compressor, as it drastically reduces the number of revolutions of the head and consequently reduces wear.

Thanks to the grid protection, the belt and the transmission are better preserved and limit the possibility of any external objects coming into contact with them. This system allows simultaneously to protect the components while always keeping an eye on the condition of the belt.

150 Litre Tank

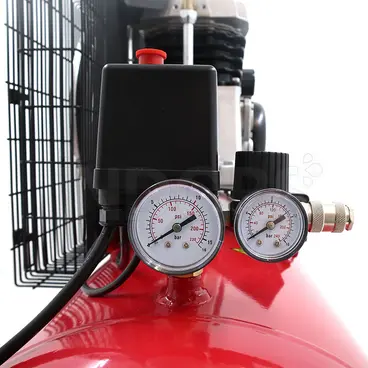

Fiac AB 150 has a tank with a capacity of 150 litres and a flow rate of 260 L/min . With a maximum air pressure of 10 bar , this single-phase compressor for industrial and professional use is easy and intuitive to use. The adjustment knob on the upper part of the compressor allows you to adjust the output pressure which can be monitored via a pressure gauge . There are two pressure gauges in total: one for the tank pressure and one for the output pressure.

Fiac AB 150-3 MC is equipped with a pressure switch , which has the task of automatically reactivating the compressor as soon as the pressure drops below a certain threshold. In addition, there is a safety valve that activates automatically in the event of too much pressure in the tank.

Output with female quick coupling as standard.

Trolley with wheels

The 10 bar air compressor in question has four wheels , of which the two front ones are pivoting , and a handling handle that allows the compressor to be easily moved to the areas of use even by a single operator .

Characteristics

• Belt driven compressor
• 150 L tank
• Pressure 10 bar
• One-piece crankcase
• Low vibration and low noise
• Safety valve
• Pressure switch as standard
• Double pressure gauge
