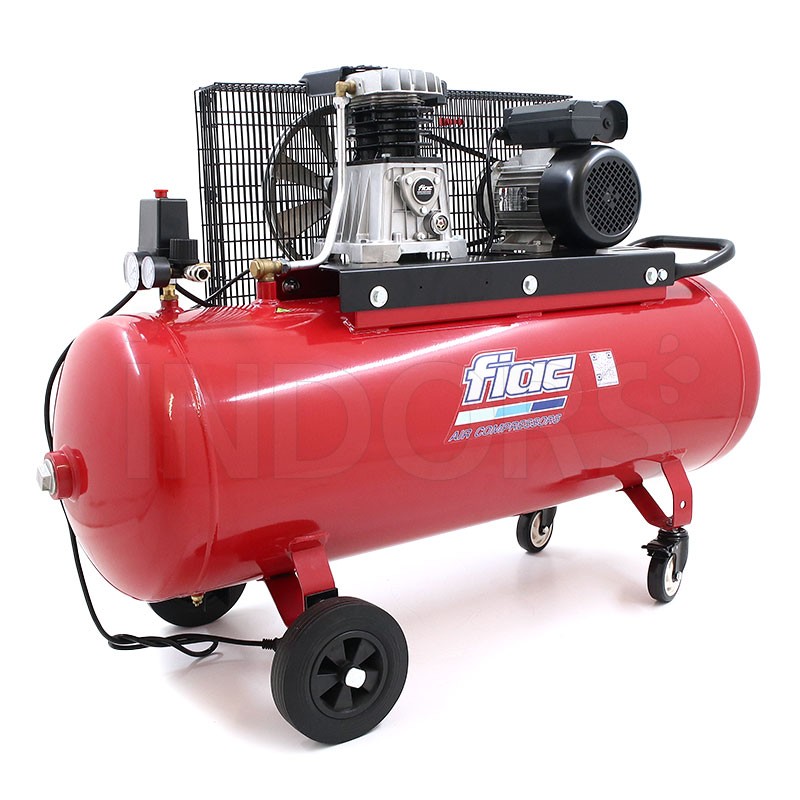

Fiac AB 150-3 MC / TC
Air Compressor 3 HP 150L Tank 230V / 400V

Fiac AB 150-3 MC / TC - 3 HP 150L Tank Air Compressor available in 230V / 400V version

The Fiac AB 150 150-liter Air Compressor is ideal for professional and industrial use, positioned among the most competitive belt-driven compressors on the market. Equipped with a trolley with wheels and handle, this Fiac AB 150 compressor combines high performance and energy efficiency, ensuring longer durability. This Fiac compressor operates at a low rotation speed with reduced vibrations and lower noise levels compared to similar models on the market.

The Fiac AB 150/3-3 MC and Fiac AB 150/3-3 TC compressors feature a 150-liter tank and are equipped with the AB348 pump unit. With an air flow rate of 300 L/min at a maximum pressure of 10 bar, it has a power of 3 HP.

Fiac is a leading Italian brand in the production of compressed air machinery. The company is certified according to the latest EU regulations, guaranteeing reliable professional quality.

Functional Specifications

AB 348 Pump Unit

This piston compressor with belt drive is oil-lubricated and ideal for professional use. The Fiac AB 150 compressor is a single-stage compressor equipped with the AB348 pump unit with a two-cylinder head with cast iron cylinders. Thanks to the low speed of the pump unit, which operates at 1500 rpm, this compressor ensures longer durability.

When choosing the best compressor for industrial use, it is important to consider the number of revolutions: the lower this value, the greater the compressor's lifespan.

Induction Electric Motor

The Fiac AB 150/3-3 MC Brushless Motor is an electric induction type with a maximum power of 3 HP (2.2 kW). Available in single-phase 230V or three-phase 400V versions.

Belt Drive

The presence of the belt drive contributes to the compressor's long-term durability, as it drastically reduces the head's rotation speed and consequently reduces wear.

Thanks to the grille guard, the belt and drive are better protected, limiting the possibility of external objects coming into contact with them. This system simultaneously protects the components while keeping the belt's condition visible.

150 Liter Tank

The Fiac AB 150 features a 150-liter tank capacity and a flow rate of 300 L/min. With a maximum air pressure of 10 bar, this single-phase compressor for industrial and professional use is easy and intuitive to operate. The adjustment knob on the top of the compressor allows for regulating the output pressure, which can be monitored via a pressure gauge. There are a total of two pressure gauges: one for tank pressure and one for output pressure.

The Fiac AB 150/3-3 is equipped with a pressure switch, which automatically reactivates the compressor as soon as the pressure drops below a certain threshold. Additionally, there is a safety valve that automatically activates in case of excessive pressure in the tank.

Standard female quick coupling outlet.

Trolley with Wheels

The 10 bar air compressor in question features four wheels, two of which are swiveling, and a handling bar that allows the compressor to be easily moved to the areas of use, even by a single operator.

Features

• Belt-driven compressor
• 150 L Tank
• 10 bar Pressure
• One-piece crankcase
• Reduced vibrations and low noise
• Safety valve
• Standard pressure switch
• Double pressure gauge
