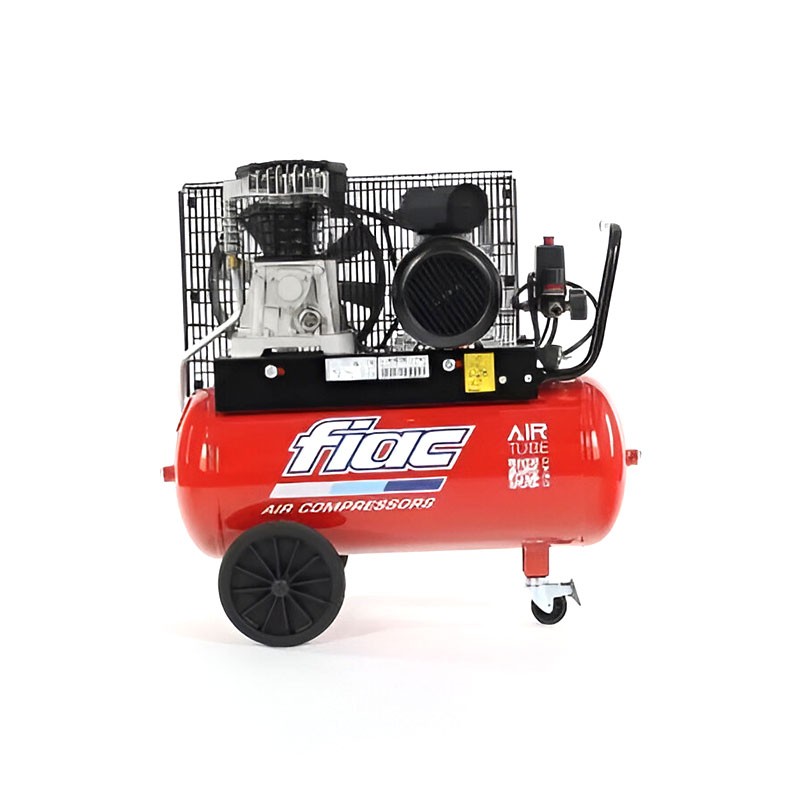

Fiac AB 50/268-2-MC
50L Wheeled Air Compressor 2 HP Made in Italy

Fiac AB 50/268-2-MC - 50L Wheeled Air Compressor 2 HP Made in Italy

The Fiac AB 50 belt-driven compressor is a reliable solution to meet air compression needs in various industrial and commercial settings. Thanks to its excellent features, it is widely used for a wide range of applications such as mechanical workshops, painting jobs, pneumatic systems, and much more.

The Fiac AB 50 belt-driven compressor is a 50 L compressor that combines power, efficiency, and practicality. With its versatility and performance, this Fiac compressor can significantly improve industrial operations, ensuring a constant flow of compressed air to meet the most demanding work needs.

The Fiac AB 50 belt-driven compressor is equipped with important features that make it reliable and efficient for various applications.

Features

To ensure optimal and long-lasting operation, the compressor is equipped with cooling pipes that help maintain an adequate temperature during use. The cast iron cylinder offers a robust and resistant structure, ensuring consistent and reliable performance over time. Furthermore, the compressor is designed to offer user comfort and practicality, thanks to the ergonomic handle that facilitates transport and the effective anti-shock foot system, which provides stability and protection during use.

A large oil sight glass allows for easy monitoring of the oil level, ensuring proper lubrication. The rubber wheels allow for easy maneuverability of the Fiac AB 50 and help move it easily from one place to another.

In addition, the pressure regulator and the dual pressure gauge offer precise control of air pressure both in the tank and in the outlet line, allowing for flexible and customized use of the Fiac AB 50 compressor to meet a wide range of industrial and professional needs.

Functional Specifications

Fiac Compressor with 50 L Tank

This compressor is equipped with a 50 L tank that allows for accumulation of a significant amount of compressed air. Fiac AB 50 operates at a maximum pressure of 10 bar. The AB 50/268 model guarantees a continuous airflow of 250 L/min.

Compact Compressor

The Fiac AB 50 compressor is quite compact and can be easily moved and positioned as needed. In terms of power, the Fiac AB 50-268 model is equipped with a 2 HP (1.5 kW) motor which gives it the necessary strength to ensure optimal performance.

Quiet Operation

The pumping unit offers a series of advantages, including quiet operation, an important feature in noise-sensitive work environments.

Features

• Single-phase 230V compressor with belt drive
• 2-cylinder single-stage motor
• Max pressure 10 bar
• Capacity 50 L
• Power 2 HP
• Motor speed 1240 RPM
• Flow rate 250 L/min
• Noise level 75 dB(A)
