Fiac AB 500-858 F
Compressor 500 Liters

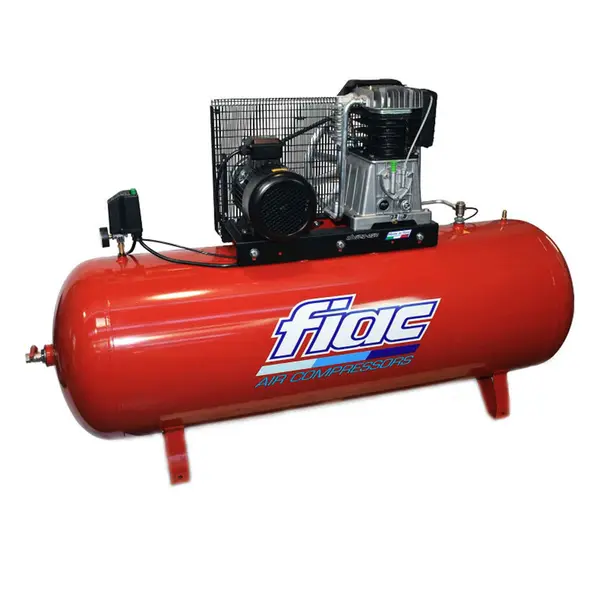

Fiac AB 500-858 F - 500 L Belt Driven Air Compressor 7.5 HP

The Fiac AB 500/858 F compressor is a piston compressor , with belt drive and pressure switch with overload protection . Specially designed for professional use, it has an operating pressure of 10 bar and is able to offer an air volume of 830 L/min.

This compressor with a 500 L tank is equipped with an AB 858 type pump unit and has a power of 5.5 kW to 7.5 HP.
This compressor features a two-stage, two-cylinder, belt-driven motor with oil lubrication. The power supply required is 400 Volts .

Fiac is a leading Italian brand in the production of compressed air machines. The company is certified according to the latest EU regulations, ensuring reliable professional quality.

Functional specifications

Piston compressor

This piston compressor with belt drive is oil lubricated and ideal for professional use . The Fiac AB 500-858 F compressor is a two-stage compressor , equipped with 2 pistons that compress the air with 2 pressure jumps, to obtain a lower air temperature. With cooling pipes , cast iron cylinder , pressure switch and overload protection , double pressure gauge , metal bearing cover and large oil sight glass . Vibrations and noise impact reduced to 76 dB .

Epoxy powder coating

Perfectly maintained over time.

This model is also available on our website in versions with different power and capacity. Do not hesitate to contact us for more information.

Characteristics

• Piston compressor
• 500 L tank
• Pressure 10 bar
• Belt drive
• Pressure switch with overload protection
• Cast iron cylinder
• Double pressure gauge
• Oil level warning light
• Epoxy powder coating
• Metal bearing cover
