Fiac Leonardo XSS 138
Oilless Air Compressor
MPN: 1129741163
230V - 1 HP
8 bar - 105 L/min
6 L Tank
€289.00
€236.89 tax excl.
Warranty 2 years
Shipped on Pallet

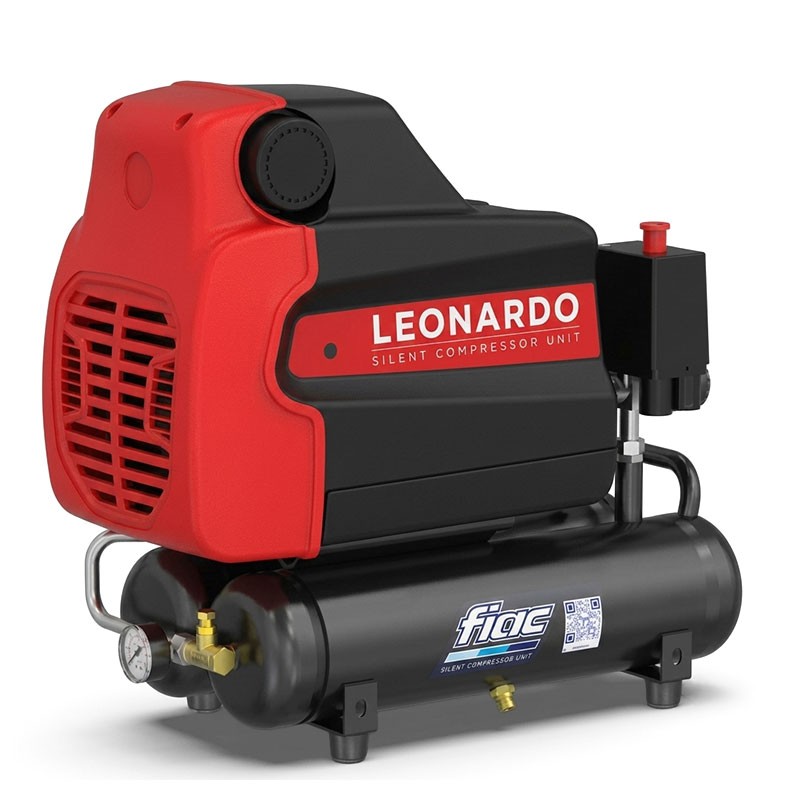

FIAC Leonardo XSS 138 - 1 HP Electric Compressor with Double 3-Liter Tank
The FIAC Leonardo XSS 138 is a compact and versatile 1 HP electric compressor, designed to power pneumatic tools and perform maintenance, advanced DIY, and workshop tasks. With a maximum pressure of 8 bar, an air flow rate of 105 L/min, and a configuration with two 3-liter tanks, it offers adequate air reserve in an easily transportable format.
The low-speed induction electric motor, combined with direct coaxial drive and an oil-free single-stage pump, ensures reliable operation and simplified management.
Entirely Made in Italy, this portable FIAC compressor is a practical solution for professionals, artisans, and users seeking a compact machine without compromising on build quality.
Functional Specifications
Compact Portable Compressor for Workshop and Maintenance
The compact dimensions and weight of only 18 kg make this portable compressor particularly easy to transport between different work areas. The top and bottom handles facilitate lifting, while the anti-vibration rubber feet improve stability during operation.
1 HP Induction Motor for Reliable Operation
The 1 HP induction electric motor, with a speed of 1450 rpm, operates at a low rotation speed to ensure smooth and constant performance. The single-phase 230 V power supply allows the compressor to be used on the standard electrical grid, making it suitable for professional environments as well as workshops and garages.
Oil-Free Coaxial Compressor with Single-Stage Pump
The FIAC F114 single-stage pump, combined with the direct coaxial drive, allows for suction of up to 105 L/min of compressed air. The oil-free operation with dry lubrication eliminates the need for oil in the pump unit, simplifying maintenance and offering a practical solution for powering pneumatic tools and performing numerous tasks with compressed air.
Pressure Regulation and Immediate Controls
The compressor is equipped with a complete set of controls for simple management of the pneumatic system. The panel includes the pressure gauge for output and tank pressure, the pressure adjustment knob, the female quick coupler for connecting pneumatic tools, and the main switch. The equipment is completed by the Schuko socket and the condensate drain valve, useful for proper compressor management during use.
Features
- Fiac Coaxial Compressor
- Made in Italy
- Oilless Operation
- Single-Stage Pump and Induction Motor
- 2 x 3 L Tanks
- Easy to Transport
Technical Data
| Power Supply | 230 V |
| Tank Capacity | 6 Liters |
| Horsepower | 1 HP |
| Transmission | Direct Coaxial |
| Single-Stage Pump | Fiac 114 |
| Air Intake | 105 L/min |
| Rotation | 1450 RPM |
| Max Pressure | 8 bar |
| Tanks | 2 |
| Tank Capacity | 2 x 3 L |
| Noise Level | 61 dB |
| Dimensions | 45 x 22 x 44 cm |
| Weight | 18 kg |
