Fiac Leonardo XSS 138
Oilless Coaxial Compressor
MPN: 1129741163
230V - 1 HP
8 bar - 105 L/min
Serbatoio 6 L
€289.00
€236.89 tax excl.
Warranty 2 years
Shipped on Pallet

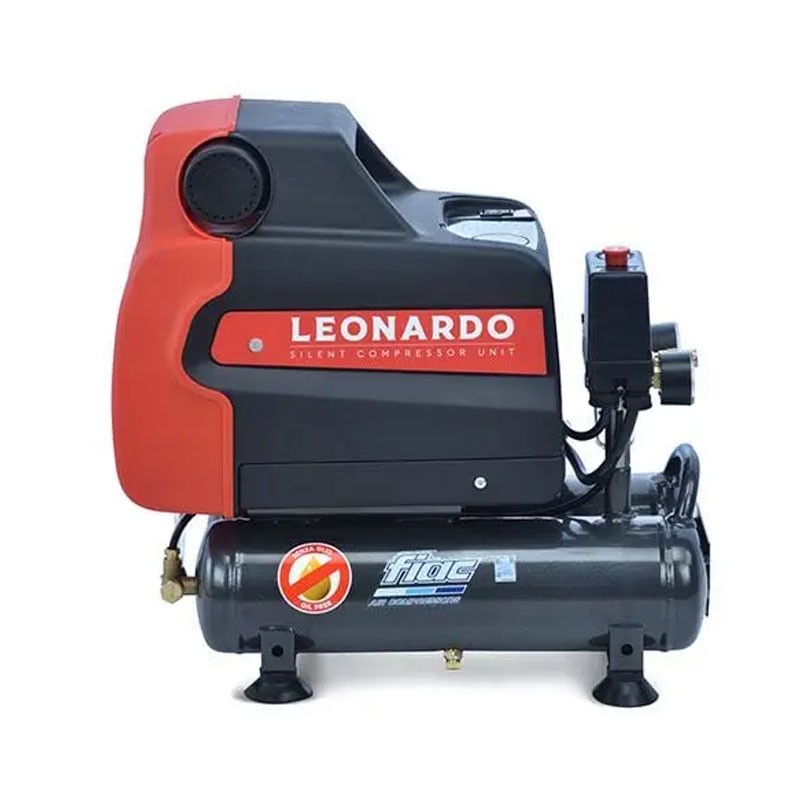

Fiac Leonardo XSS 138 - 1 HP Electric Compressor
The Fiac Leonardo XSS 138 compressor is an 8 bar Fiac compressor, with 105 L/min of compressed air.
With its low rotation speed, Fiac Leonardo XSS is a Fiac compressor with a 1 HP electric motor , 2 tanks of 3 L each for excellent cooling of the air itself.
Designed to be combined with portable compressed air tools , the particularly small dimensions of the Leonardo XSS 138 make it ideal as a hobby compressor and workshop compressor, to be transported anywhere.
Fiac Leonardo XSS 138 combines the excellent technical quality , performance of a professional Fiac compressor with the reliability of a Made in Italy machine .
Functional specifications
Portable 8 bar compressor
Fiac Leonardo XSS 138 is a Fiac compressor equipped with anti-vibration rubber pads for greater stability, upper and lower lifting handles . Compact dimensions 45 x 22 x 44 cm , for a weight of 18 kg which make Leonardo XSS 138 a coaxial compressor ideal for transport.
Compressor with induction motor
This Fiac compressor is equipped with a 1 HP , 1450 rpm induction motor . Power supply: 230V.
Coaxial compressor with single-stage pump
Fiac Leonardo XSS is an oilless compressor , with dry lubrication , equipped with a single-stage Fiac F114 pump which allows it to draw air at 105 L/min . The transmission of this Fiac compressor is direct coaxial , with 1450 rpm.
Controls and safety devices
The Fiac Leonardo XSS controls are simple and intuitive and include: practical air outlet and tank pressure gauge , main switch, female compressor outlet fitting , pressure regulation knob . With Schuko socket and condensate drain valve .
Characteristics
- Fiac Coaxial Compressor
- Made in Italy
- Oilless Operation
- Single-stage pump and induction motor
- 2 x 3L tanks
- Easy to carry
Technical Data
| Food | 230 V |
| Tank Capacity | 6 Liters |
| Horses | 1 HP |
| Transmission | Direct Coaxial |
| Single-stage pump | Tooth 114 |
| Aspirated Air | 105 L/min |
| Rotation | 1450 RPM |
| Max Pressure | 8 bars |
| Serbia | 2 |
| Capacity of the Sebatoi | 2 x 3 L |
| Rumors | 61 dB |
| Dimensions | 45 x 22 x 44 cm |
| Peso | 18 kg |
Technical Data
| Food | 230 V |
| Tank Capacity | 6 Liters |
| Horses | 1 HP |
| Transmission | Direct Coaxial |
| Single-stage pump | Tooth 114 |
| Aspirated Air | 105 L/min |
| Rotation | 1450 RPM |
| Max Pressure | 8 bars |
| Serbia | 2 |
| Capacity of the Sebatoi | 2 x 3 L |
| Rumors | 61 dB |
| Dimensions | 45 x 22 x 44 cm |
| Peso | 18 kg |
