ABAC LN2 A49B 270 T4 DOL
Silenced Compressor 4 HP
Lubricated Continuous Use
MPN: 4116026001
400V - 4 HP
11 bar - 553 L/min
270 L tank
€3,036.00
€2,488.52 tax excl.
Warranty 2
years
Shipped on Pallet

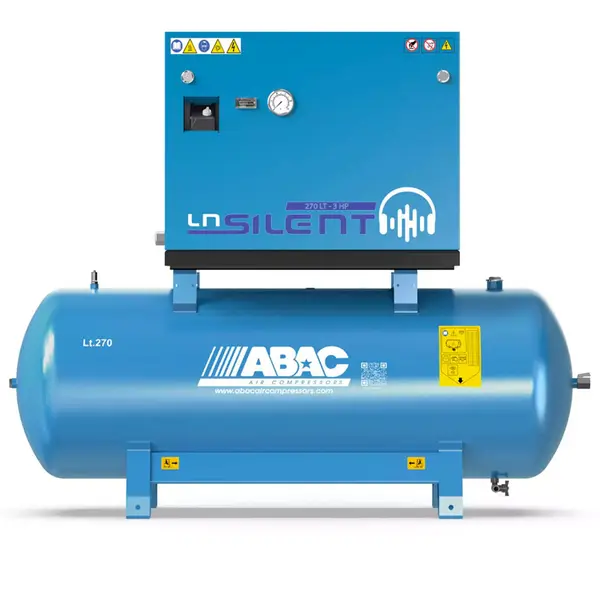

ABAC LN2 A49B 270 T4 DOL - Silenced Three-Phase Compressor
ABAC LN2 A49B 270 T4 DOL three-phase silenced compressor with two-stage belt transmission guarantees maximum noise reduction associated with particularly simple operation. Air compressor with soundproof metal hood which makes the use of the ABAC LN2 A49B 270 T4 DOL incredibly comfortable with a noise level of only 69 dB at 4 meters.
Functional Specifications
Silenced compressor
The ABAC S A39B 270 CT3/CM3 silenced air compressor is the ideal solution for those seeking high performance with a level of silent operation that offers high comfort. With its advanced design, this compressor guarantees silent operation compared to traditional non-silenced compressors.
Simplified Maintenance
Ease of maintenance is another strong point of this compressor. The intelligent design allows easy access to key components, simplifying maintenance operations and ensuring long life. Routine interventions become quick and simple, allowing the compressor to always be kept in excellent condition.
Pumping group
ABAC pumping units are the result of advanced technology and unique in terms of reliability, durability, low operating temperatures and efficiency.
ABAC pumping units use innovative materials with a low friction coefficient and high resistance to use:
- dynamically balanced ductile iron shafts ,
- oversized oil sumps ,
- cast iron cylinders for greater durability,
- Die-cast aluminum heads for better heat dissipation
- highly resistant stainless steel reed valves ,
- connecting rods with special anti-wear processing
Characteristics
- High silence and comfort
- 270 liter tank
- Centralized control panel
- Easy to use
- Easy Maintenance
- Ideal for installations inside environments where a low sound level is required
- Low rotation speed to guarantee a low operating temperature
- Belt transmission
Technical data
| LN2 A49B 270 T4 DOL | |
| Power Supply | 400V |
| Goodwill | Direct |
| Absorbed power | 3 kW |
| Power | 4 HP |
| Tank capacity | 270 L |
| Number of Cylinders | 2 / TWO-STAGE |
| Number of laps | 1300RPM |
| Scope | 553 L/min |
| Max. pressure | 11 bars |
| Noise at 4m | 69dB |
| Dryer | No |
| Dimension | 152 x 74 x 151 cm |
| Weight | 238kg |
