ABAC EXP A49B 200 CT4
Three-phase compressor 4 HP

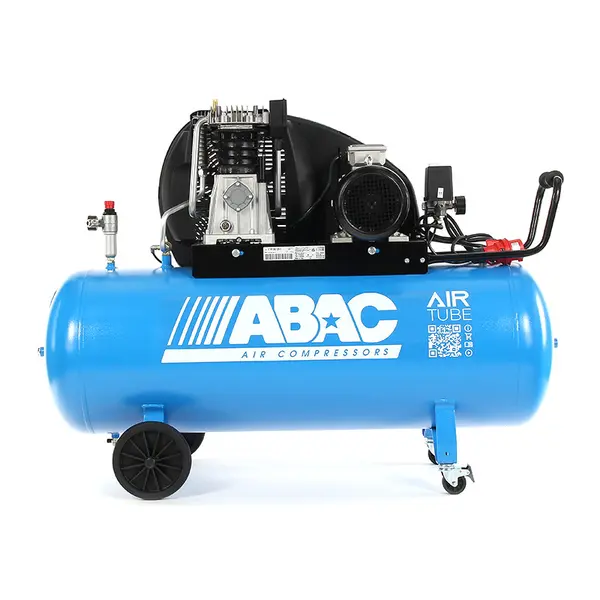

Abac EXP A49B 200 CT4 - Three-phase piston compressor for professional use

The Abac EXP A49B 200 CT4 compressor cod. 4116028553 of the EXCEED line represents a significant innovation in the field of professional air compressors. Designed to meet the needs of intensive and prolonged use, typical of industrial and professional applications.

Among the main features are:

• Three-phase piston compressor
• Belt transmission
• 200 L tank
• 4 HP (3 kW) engine
• Double outlet + filter
• Easy to move

Abac EXCEED EXpert range

Abac's EXPert line , belonging to the EXCEED range of piston compressors, represents excellence in the professional air compressor sector. Designed to offer comfort and ease of use, this series of oil lubricated compressors is ideal for prolonged use, ensuring high performance and reliability over time.

The combination of advanced features and user-friendly design makes EXpert compressors perfectly integrated into any professional context, meeting the needs of those looking for high-quality and easy-to-manage tools. With ABAC EXceed, operational efficiency is combined with ease of use, offering robust and versatile solutions for every industrial and artisanal application.

Technical specifications

Compressor with 4 HP three-phase motor

The EXP A49B 200 CT4 compressor is equipped with a 4 HP three-phase motor , which guarantees superior energy efficiency and greater durability. Its electrical power is via a 400V/3/50Hz three-phase system, which makes it suitable for industrial environments where constant and reliable power is required.

200 L tank

This Abac piston compressor has a tank with a capacity of 200 L , allowing a sufficient air reserve to support even the most demanding jobs without frequent interruptions.

Dual stage pistons

The Abac EXP A49B 200 CT4 model cod. 4116028553 is designed with dual-stage pistons , which allow you to reach a maximum pressure of 11 bar (159.5 psi). This two-stage design ensures optimization of the compression process, improving efficiency and reducing energy consumption. The Abac compressor has an air flow rate of 553 L/min , which allows it to power several pneumatic tools at the same time, making it ideal for workshops and production plants.

Easy to move

The dimensions of the compressor are 142 x 57 x 104 cm , with a weight of 121 kg . Despite its imposing dimensions, the model is equipped with an advanced mobility system that includes two fixed wheels and two swivel wheels with brakes. This configuration facilitates the movement of the compressor within the work area, while ensuring stability during use.

Double outlet to facilitate connection of pneumatic accessories

The Abac EXP A49B 200 CT4 compressor is supplied with a series of accessories that improve its functionality. It is equipped with a double output , which allows you to connect multiple pneumatic tools simultaneously. Furthermore, it is equipped with a filter to ensure that the compressed air is free of impurities, prolonging the life of the connected tools. The complete rubber package increases its resistance and durability over time.

Characteristics

• Three-phase 400V connection
• A49B two-stage pumping unit
• Small dimensions
• High efficiency
• Flow rate 553 L/min
• Less wear due to better cooling
• Available on wheels with lockable pivoting wheels or fixed with feet
• Resistant rubberized handle in the wheeled version
• Maximum pressure 11 bar
• Innovative belt guard design for improved cooling air flow
• 200 L tank
• Induction motor
• Low rotation speed to guarantee a low operating temperature
• Belt transmission

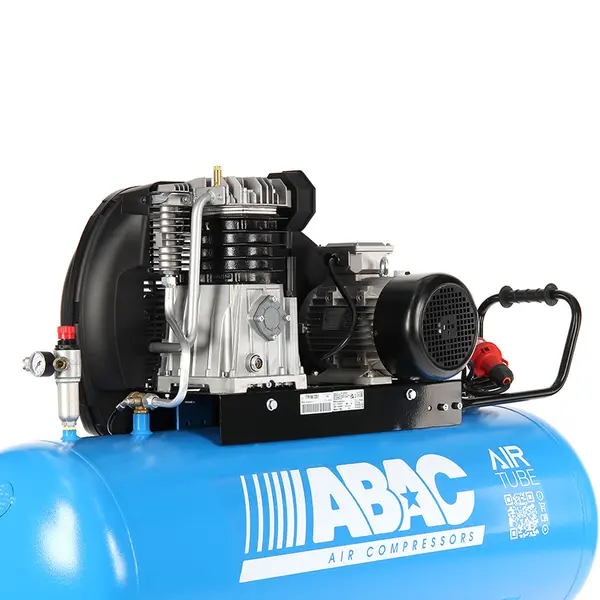

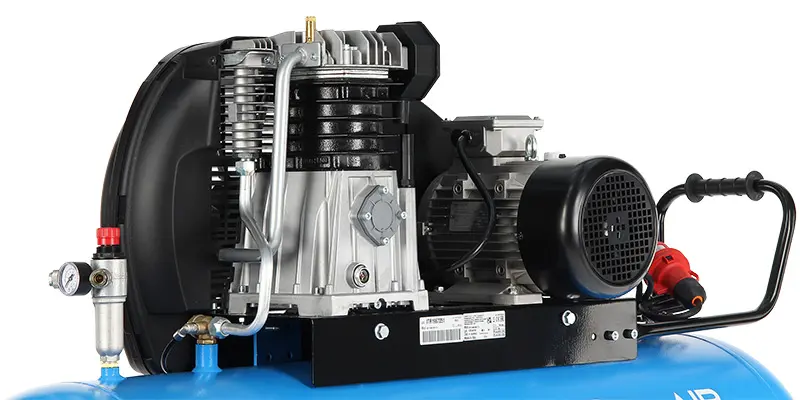

Pumping group

ABAC pumping units are the result of advanced technology and unique in terms of reliability, durability, low operating temperatures and efficiency; they use innovative materials with a low friction coefficient and high resistance to use:

• oversized oil sumps
• cast iron cylinders for greater durability
• Die-cast aluminum heads for better heat dissipation
• Highly resistant stainless steel reed valves
• aluminum aftercooler with fins
