ABAC LN2 B7000 500 T10
10 HP 500 L Silent Compressor
400V - 10 HP
11 bar - 1070 L/min
500 L tank
€4,921.00
- €600.00
€4,321.00
€3,541.80 tax excl.

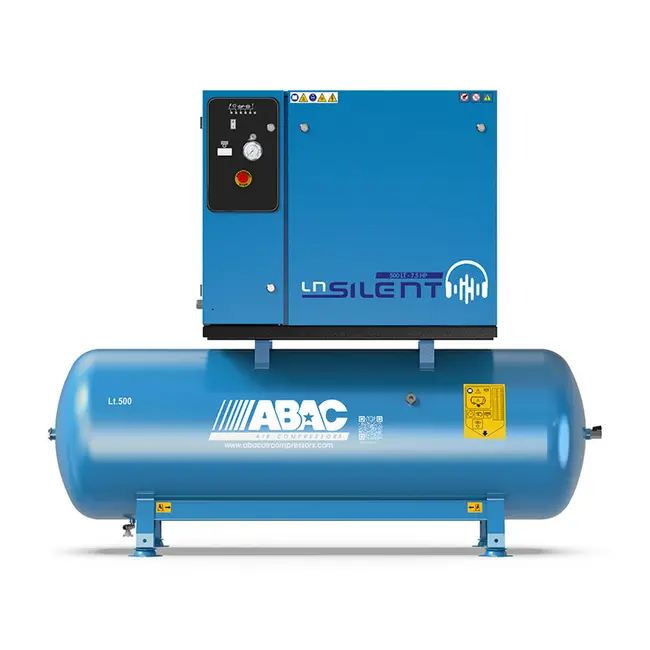

ABAC LN2 B7000 500 T10 - 500 L Industrial Compressor
The ABAC LN2 B7000 500 T10 500 L silenced industrial compressor with two-stage belt drive ensures maximum noise reduction combined with particularly easy operation. The ABAC LN2 B7000 500 T10 features a soundproof metal enclosure that makes using it incredibly comfortable, with a noise level of just 68 dB at 4 meters.
Characteristics
- High Silence and Comfort
- 500 litre tank
- Centralized control panel
- Ease of Use
- Ease of Maintenance
- Ideal for installations inside environments where a low noise level is required
- Low rotation speed to guarantee a low operating temperature
- Belt drive
- COOLING WITH ADDITIONAL FAN
Pumping group
ABAC pumping units are the result of advanced technology and are unique in terms of reliability, durability, low operating temperatures, and efficiency.
ABAC pumping units use innovative materials with a low friction coefficient and high resistance to use:
- dynamically balanced spheroidal cast iron shafts ,
- oversized oil sumps ,
- cast iron cylinders for longer life,
- die-cast aluminum heads for better heat dissipation
- high-strength stainless steel reed valves ,
- connecting rods with special anti-wear processing
Technical Data
| LN2 B7000 500 T10 DOL | LN2 B7000 500 T10 YD | |
| Start-up | Direct | Star Triangle |
| Power Supply | 400V | 400V |
| Power Absorbed | 10 HP - 7.5 kW | 10 HP - 7.5 kW |
| Tank Capacity | 500 L | 500 L |
| Number of Cylinders | 2 / TWO STAGE | 2 / TWO STAGE |
| Number of Turns | 1150 RPM | 1150 RPM |
| Flow rate | 1070 L/min | 1070 L/min |
| Max Pressure | 11 bars | 11 bars |
| Noise at 4m | 68 dB | 68 dB |
| Size | 194.3 x 73.8 x 159.3 cm | 194.3 x 73.8 x 159.3 cm |
| Weight | 448 kg | 448 kg |
