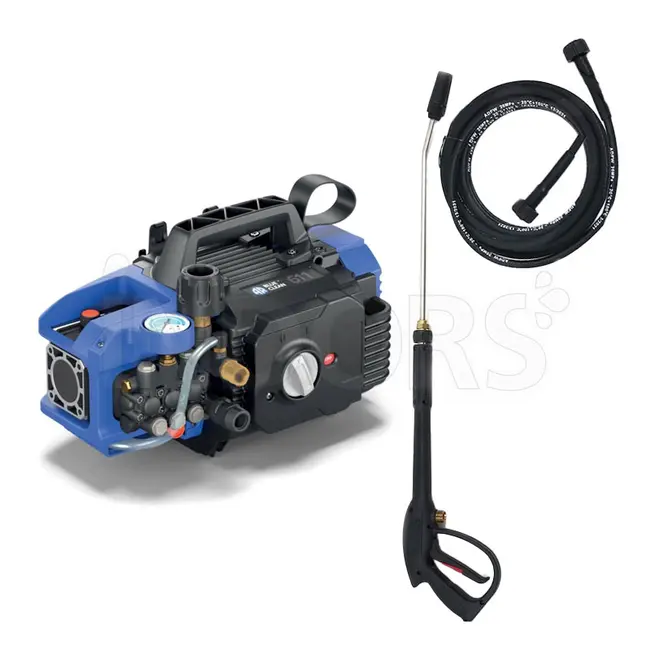

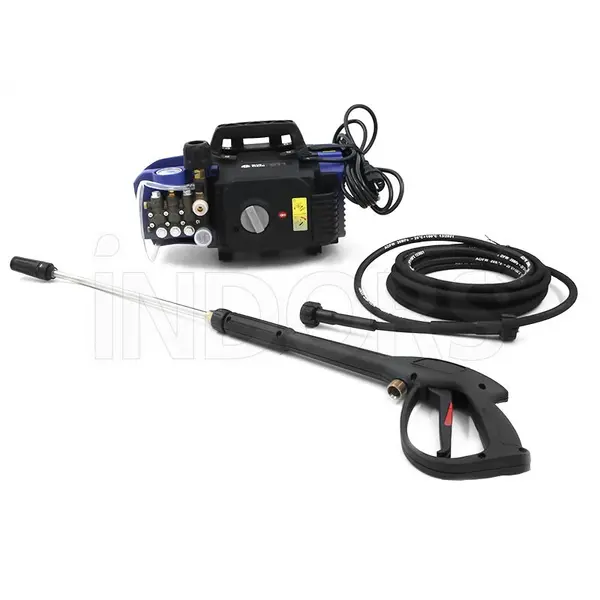

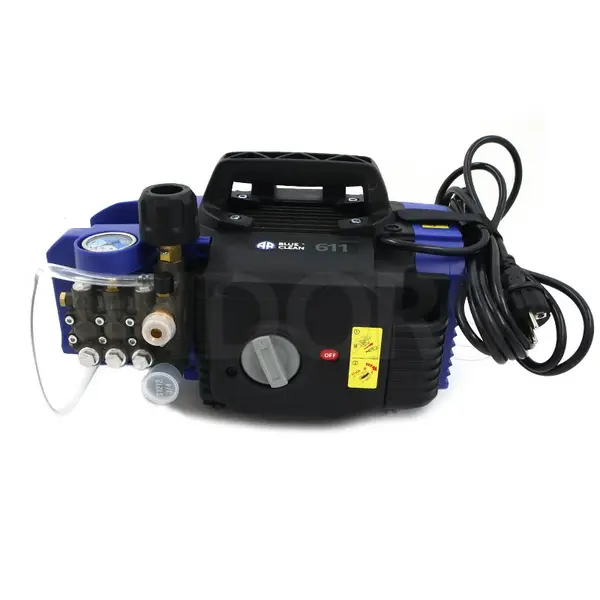

Annovi Reverberi AR 611 - Compact Pressure Washer
This compact Annovi Reverberi AR 611 pressure washer is a 230 V single-phase machine, with 2.1 kW absorption and provides a high pressure of 140 bar . With an induction motor and a 3-piston ceramic pump with a connecting rod and crank system , the Annovi Reverberi AR 611 is a portable pressure washer with a 3-piston ceramic pump and a connecting rod and crank system.
The compact dimensions of approximately 42 x 26 x 25 cm for a weight of 20 kg are designed for versatile semi-professional use and for demanding private individuals .
Functional specifications
3-piston pump with connecting rod and crank
The Annovi Reverberi AR 611 pressure washer is equipped with a 3-piston ceramic pump with a connecting rod-crank system .
Automatic safety valve
The AR 611 safety valve works with zero pressure in the pump head. The valves are inspectable.
Total Stop on Gun Release
The AR 611 pressure washer features Total Stop (TSS), an automatic stop system when the gun is released.
Pressure regulation and manometer
The safety features of this Annovi pressure washer include a pressure regulation system and a pressure gauge .
Self-priming function
The self-priming pump is designed to draw water from an external source (such as a tank, bin or container) without requiring water to be forced into the pump by initial pressure. This makes the pressure washer more versatile, allowing it to operate even in the absence of a direct connection to a pressurized water supply such as when it is not possible to connect to a tap or to use alternative water sources such as tanks and wells.
- Self-priming function
- Induction motor
- Connecting rod pump
- IPX5-S1 water protection
- Maximum inlet temperature 60°C
- Aluminum head
- Total Stop System
Technical specifications
High blood pressure
Annovi Reverberi AR 611 is equipped with a peak pressure of 140 bar .
Remarkable water flow
The high flow rate is proof of the real power of a machine and its ability to clean large surfaces. The flow rate of AR 611 is 500 L/h .

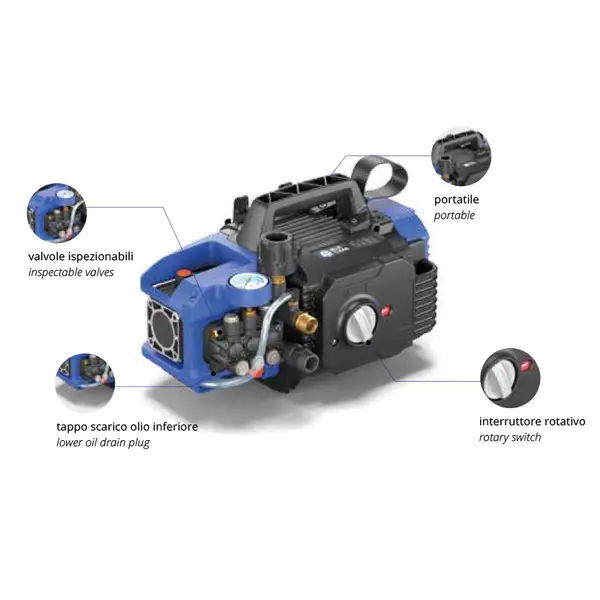

Lower oil drain plug
Oil drain plug located on the bottom side.
Commands
Rotary switch.
HJRS-A Pump
- Self-priming 3-piston ceramic pump with connecting rod-crank system, brass pump head;
- Pistons in tempered stainless steel;
- Automatic safety valve with pressure relief in the pump head;
- Direct coupling pump/internal combustion engine.
Characteristics
.jpg)
- 2.1 kW single phase pressure washer
- High pressure and flow rate
- 3-piston pump with connecting rod-crank system
- Safety valve with pressure relief
- Total Stop on Gun Release
