Nardi Extreme 3 50L
10 bar Oil-Free Compressor

Nardi Extreme 3 50L - 10 bar Oil-Free Compressor

Nardi Extreme 3 50L is a 10 bar compressor belonging to the Low Pressure line of Nardi Compressors , with oilless operation . The Low Pressure line constitutes a high-level base as regards pressures from 0-8 bar , where this Nardi Extreme 3 50L compressor has a delivered pressure of 8 bar as standard.

Made from technologically advanced materials , Nardi Extreme 3 50 L offers high performance in terms of air flow , reliability and long life: assembled components of high technical quality , for maintenance reduced to a minimum .

Oil-free compressor with low noise and minimal vibration for comfortable use . High-quality pump unit .

AVAILABLE AT 8 BAR ON REQUEST

Functional specifications

High quality materials

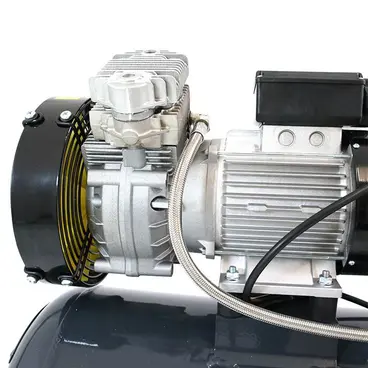

This compressor is made of die-cast aluminum . Lightweight and compact , with an exclusive connecting rod system for perfect balance . The Nardi Extreme 3 50L tank is equipped with handles and wheels for easy transport.

Heat treatments for long life

Nardi Compressori performs heat treatments on components to extend the life and performance of the Nardi Extreme 3 50L compressor.

Advanced compression technology

Continuously developed to improve the performance of Nardi compressors.

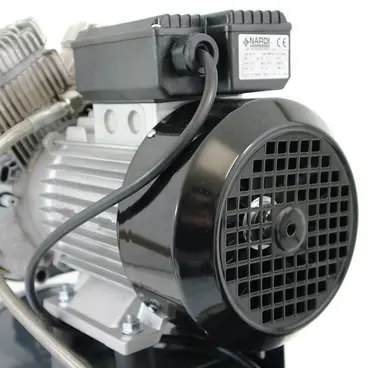

Reliable electric motors

Designed by Nardi Compressori and specific for each model, they adapt to the structural characteristics for optimal operation.

Technical specifications

Compact dimensions 81 x 40 x 69 cm , for a weight of 43 kg . A 50 L tank, Nardi Extreme 3 50 L supports a pressure of 10 bar at 1400 rpm . With 2 cylinders , this oil-free compressor has an intake air of 200÷350 L/min , for very low noise. The technical data can be found in the table below and vary according to the desired model.

Available models

The following models can be selected from the drop-down menu:

• Extreme 3 50L 0.75 HP
• Extreme 3 50L 1.5 HP
• Extreme 3 50L 2.0 HP 1400

Characteristics

• 10 bar compressor
• Professional use
• Air intake 12÷21 m³/h - 200÷350 L/min
• Vibrations reduced to a minimum
• Oil-free operation
• 50 L tank
• Very low noise
• Autonomous thermal protection
• Made in Italy
