Abac Pole Position L25P
24 L Coaxial Compressor

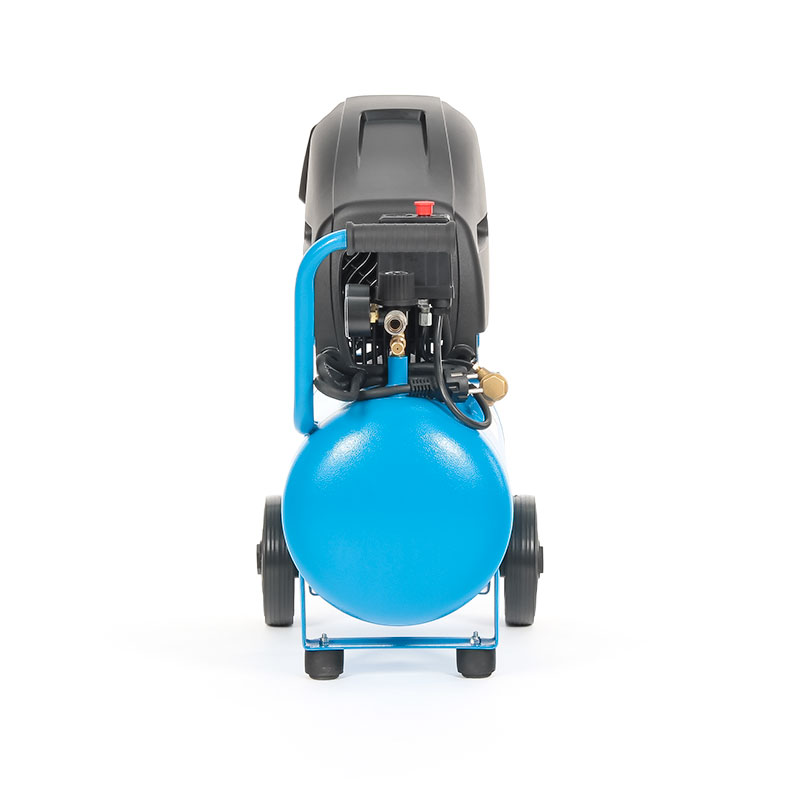

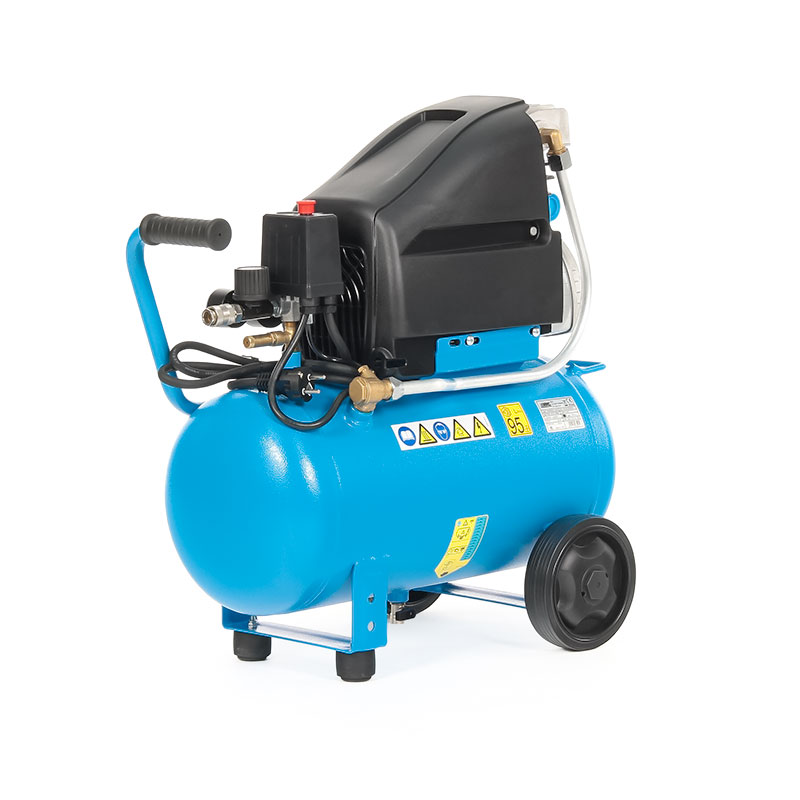

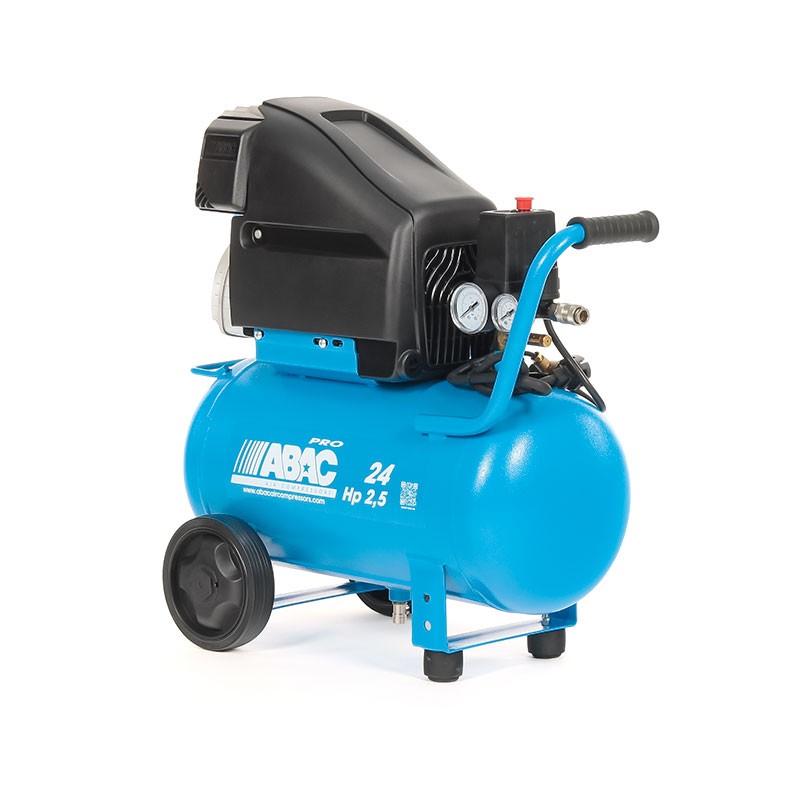

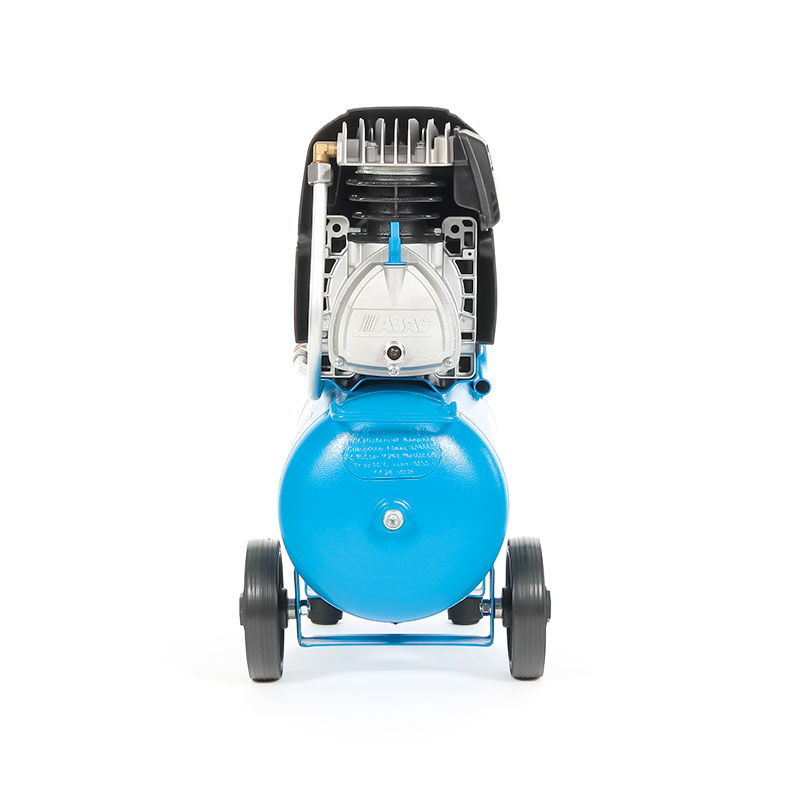

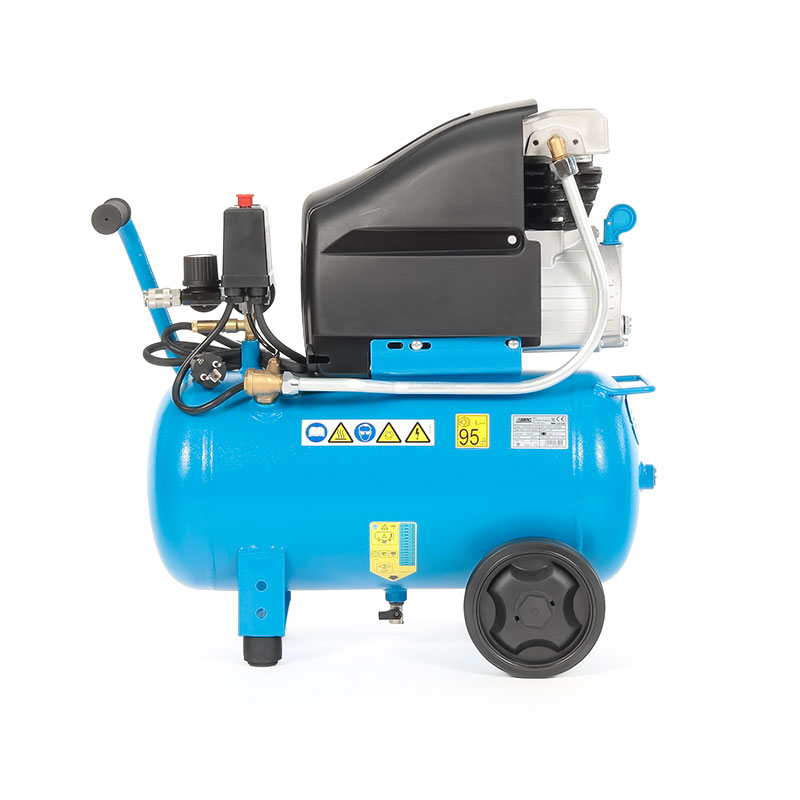

Abac Pole Position L25P - 2.5 HP Electric Compressor code 1129100042

The Abac Pole Position L25P compressor is an electric compressor with a single-phase 230V connection and a 2.5 HP electric motor with 2850 RPM . This horizontal compressor belongs to the Abac Pro line , machines that stand out for their professional build quality and excellent value for money.

Coaxial compressor , Abac Pole Postition L25P has a direct transmission , as the pump unit is connected directly to the crankshaft. This feature allows for a smaller footprint : with dimensions of 62 x 24 x 58 cm and a weight of 28 kg, this Abac brand hobby compressor is extremely functional .

You can use the Abac Pole Position L25P for inflating , blowing or as support for nailing and painting activities.

Technical specifications

This compressor supports a pressure of 10 bar , for an air displacement of 270 L/min . Abac Pole Position L25P has a 24 L capacity tank with a drain valve located in the lower area, to drain the water generated by condensation.

The pumping unit is single-stage, with an oil lubrication system .

The Abac compressor we are describing is equipped with two sturdy plastic wheels for movement , rubber feet for more stable support and a handle for moving it.

Commands include:

• Knob to adjust the output pressure
• Two inclined pressure gauges to read tank pressure and delivered pressure
• Pressure switch for automatic tank refilling
• Main switch for on/off
• Female outlet fitting

The noise level of this machine perceived at 7 metres is around 95 dB (A).

Characteristics

• Coaxial compressor with direct drive
• Hobby use Abac Pro line
• For blowing, painting, inflating and nailing
• Durable construction material
• Oil lubricated
• Pressure 10 bar
• 24 L tank
• Wheels for movement, handle and anti-vibration rubber pads

Standard equipment

• Wheels
• Instruction booklet
