Stihl MSA 60
Chainsaw with 30 cm Bar with Battery Kit and Charger

Stihl MSA 60 - 36V Chainsaw with 30 cm Bar including Battery Kit and Charger

The STIHL MSA 60 cordless chainsaw is the ideal solution for garden maintenance, pruning trees and shrubs, cutting firewood, and light carpentry work. Powered by the STIHL AK battery system, this electric pruning saw combines maximum maneuverability with extremely quiet operation and zero emissions, making it perfect for use in residential areas.

Supplied as standard with a 30 cm guide bar, 1/4" Picco Micro 3 (PM 3) chain, and STIHL Rollomatic E Mini guide, it ensures a clean and consistent cut. The continuously variable speed control allows for complete control over the power output, while the quiet cordless chainsaw complete with AK 20 Battery Kit and AL 10 charger offers a high-performance ready-to-use package for demanding professionals and private users.

Battery and Charger INCLUDED.

Kit Composition

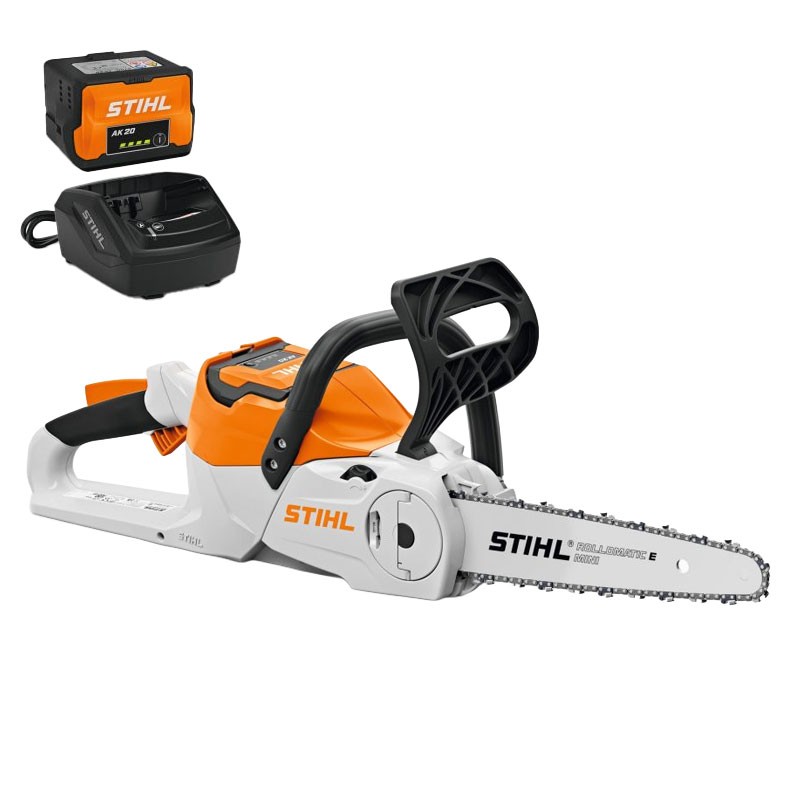

This Stihl MSA 60 C-B Chainsaw KIT includes:

• MSA 60 C electric chainsaw
• AK 20 Battery
• AL 10 Charger

Technical Specifications

This STIHL MSA 60 chainsaw is equipped with a highly energy-efficient EC brushless motor, which is lightweight, requires minimal maintenance, and offers a long service life. Compatible with the STIHL AK 36 V battery line (max. 40 V), this chainsaw has an absorbed power of 0.90 kW (output power of 0.70 kW). Power management is optimized by intelligent electronic technology, which ensures constant power throughout the entire battery charge.

The cutting assembly consists of a 30 cm guide bar, 1/4" P Picco Micro 3 (PM3) chain pitch, and a 1.10 mm groove for smooth penetration into the wood. In combination with the recommended AK 20 battery, the machine ensures an operating autonomy of up to 40 minutes of continuous work. The acoustic impact is limited to only 91 dB(A) sound power level, ensuring optimal working comfort.

Battery Compatibility and Runtime

Functional Features

Efficient Cutting and High-Durability EC Motor

The EC brushless motor combines a compact structure with low weight to offer high energy efficiency and consistent performance in the field. The continuous power delivery technology avoids the performance drops typical of battery depletion, allowing for the same cutting effectiveness from the first to the last minute of work.

Quick Tensioning System

Chain tension adjustment is performed quickly and safely without the need for additional tools, thanks to the dedicated adjustment knob. The automatic locking of the guide bar and the transparent oil tank for immediate visual check of the lubricant optimize daily maintenance times.

Soft-touch Handle and Ergo Lever

The rear control handle made of soft material ensures a firm and comfortable grip even in humid conditions, reducing vibration transmission to the operator. The integrated Ergo lever allows for immediate restart without needing to unlock the device each time, provided one hand maintains grip on the rear handle.

QuickStop Super Braking System

The two-handed control managed via the ergonomic tubular handle ensures complete control of the device in any working position. Safety is further enhanced by the QuickStop Super braking system, which instantly activates the chain brake as soon as the rear handle is released or in case of kickback.

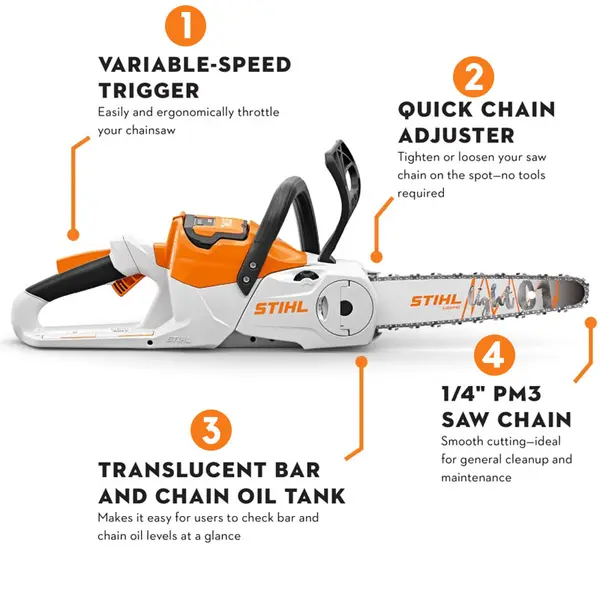

1. Button for speed adjustment
2. Quick Chain Tensioner
3. Transparent Oil Tank
4. 1/4" PM3 Chain

Features

• High-efficiency EC brushless motor
• STIHL AK battery system
• Constant power during work
• Tool-free quick chain tensioner
• Transparent chain oil tank
• Ergonomic soft anti-vibration handle
• Ergo lever for continuous use
• QuickStop Super safety braking system
• 30 cm Rollomatic E Mini bar
• 1/4" Picco Micro 3 (PM3) chain

Standard Equipment

• MSA 60 C Chainsaw
• AK 20 Battery
• AL 10 Charger
• User Manual
