Novamach N1/S16
Manual Lift 1000 Kg

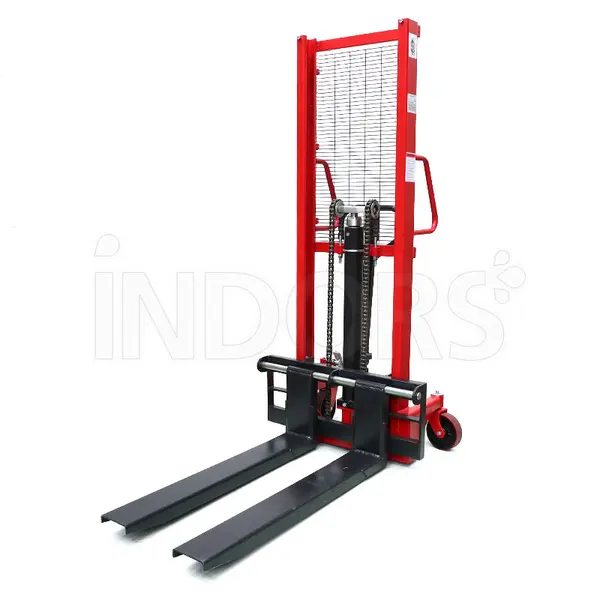

Novamach N1/S16 - Manual Lift 1000 Kg

The Novamach N1/S16 manual lift is designed for professional handling of loads up to 1000 kg in warehouses and industry . The forks measure 54 ÷ 55 x 115 cm and allow a minimum height of 8.5 ÷ 8.8 cm and a maximum of 160 cm. The compact structure with a 198 cm mast and a weight of 220 kg guarantees stability and safety even in the most demanding operations.

Available models

Novamach N1/S16 is available in two versions, selectable from the drop-down menu:

• N1/S160
• N1/S16G

Technical specifications

The Novamach N1/S16 is equipped with polyurethane rollers and wheels , a wear-resistant material with sound insulation and minimal water absorption. The overall dimensions of the lift range from 77.7 to 88.7 cm in width and 170 cm in length , while the closed mast measures 198 cm . The compact and robust design ensures reliability and long life even under intensive use.

Functional specifications

Capacity 1000 kg

The Novamach N1/S16 handles loads up to 1000 kg with precision and stability, ideal for industrial handling of pallets and machinery.

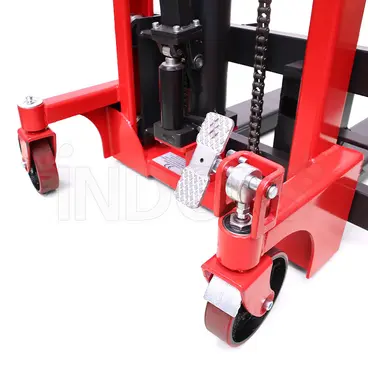

Polyurethane rollers and wheels

The polyurethane rollers and wheels ensure smooth running, mechanical resistance and sound insulation, guaranteeing long life and consistent performance.

Dimensional versatility

Available in the N1/S160 and N1/S16G versions, the lift offers total widths of 88.7 and 77.7 cm respectively, adapting to different operating spaces without compromising stability or capacity.

Characteristics

• Manual lift
• Height from 85 to 1600 mm
• Capacity 1000 kg
• Closed upright height 1980 mm
• Open upright height from 1939 to 1980 mm
• Polyurethane rollers
• Polyurethane wheels
• Dimensions 77.7 x 170 cm / 88.7 x 170 cm
• Weight 220 kg
