Novamach NSDYG0511 / NSDYG0513
500 kg Self-Loading Electric Lift
€3,619.00
€2,966.39 tax excl.
Warranty 5
years
14 days to change your mind
Shipped on Pallet

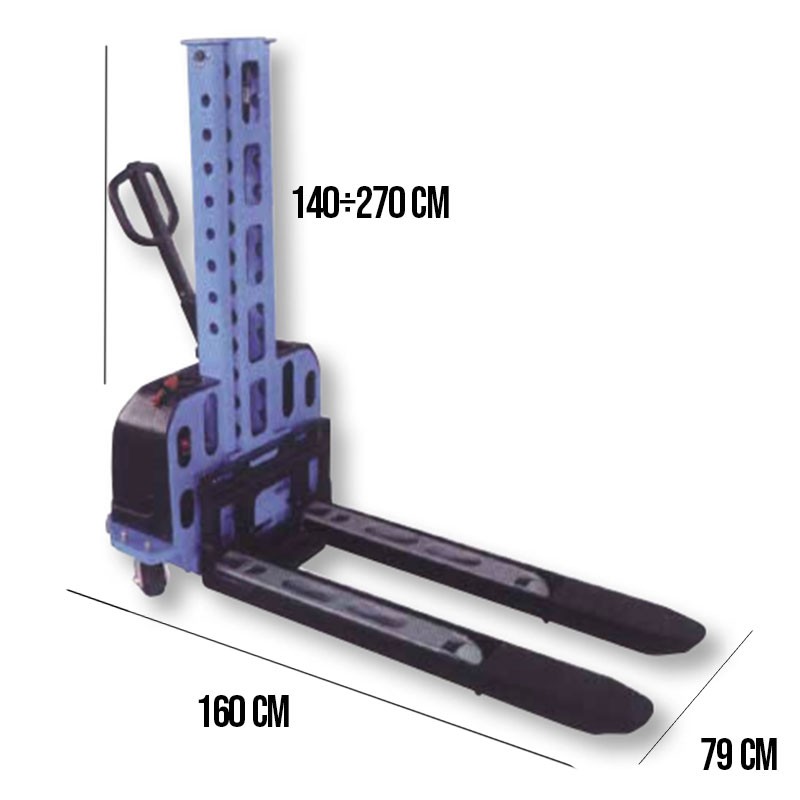

Novamach NSDYG0511 NSDYG0513 - Electric Lift 500 kg
The Novamach NSDYG0511 and NSDYG0513 electric lifts are designed for handling loads up to 500 kg in warehouses and industry , with the innovative ability to self-lift onto the truck bed . These lifts combine manual traction and electric lifting , allowing safe and rapid operations even in complex logistics contexts.
Equipped with an internal battery and integrated charger , the NSDYG0511 and NSDYG0513 models guarantee immediate autonomy and efficient load management, simplifying loading/unloading and transport.
Available models
Selectable from the drop-down menu:
- NSDYG0511 : Capacity 500 kg; Fork length: 115-160 cm; Fork height: 90-110 cm
- NSDYG0513 : Capacity 500 kg; Fork length: 115-160 cm; Fork height: 90-130 cm
Technical specifications
The electric lift allows heights from 9 to 110 cm for the NSDYG0511 and from 9 to 130 cm for the NSDYG0513, with fork length adjustable from 115 to 160 cm and mast overall dimensions variable between 140–270 cm and 160–290 cm respectively. The turning radius is 110 cm for the NSDYG0511 and 112 cm for the NSDYG0513, while the lifting speed varies between 80 and 110 mm/s depending on the load.
The frame is equipped with nylon wheels (7x6 cm front, 10x5 cm rear, 4x2.6 cm swivel) that ensure maneuverability and smoothness on various surfaces. The 12V/0.8A lifting motor and internal 12V/33Ah battery with integrated charger ensure autonomy and reliability for continuous operations. Net weight ranges from 197 kg (NSDYG0511) to 219 kg (NSDYG0513).
Functional specifications
Capacity 500 kg
The Novamach NSDYG0511 and NSDYG0513 electric lifts move loads up to 500 kg , combining safety and precision even in intensive industrial and logistics contexts.
Self-lifting on trucks
The innovative self-lifting function allows the lift to independently climb onto the truck bed , simplifying loading/unloading operations without the use of ramps.
Electric lift with manual traction
The combination of electric lifting and manual traction ensures total control of the load , adjustable speed and reduced operating effort.
Internal battery and charger
The models have an internal 12V/33Ah battery and integrated charger , ensuring immediate autonomy, simple management and continuous operations without interruptions.
Nylon wheels
The front, rear and swivel nylon wheels ensure optimal maneuverability, stability and smoothness on industrial floors, reducing friction and wear.
Watch the video
Characteristics
- Electric lift
- Height from 90 to 1100 mm / from 90 to 1300 mm
- Capacity 500 kg
- Nylon wheels
- Dimensions 79 x 160 cm
- Weight from 197 to 219 kg
Technical Data
| Model | NSDYG0511 | NSDYG0513 |
| Typology | Electric Lift | Electric Lift |
| Traction | Manual | Manual |
| Max Fork Height | 9÷110 cm | 9÷130 cm |
| Fork Length | 115÷160 cm | 115÷160 cm |
| External Fork Length | 53.5 cm | 53.5 cm |
| Upright Overall Size | 140÷270 cm | 160÷290 cm |
| Turning Radius | 110 cm | 112 cm |
| Flow rate | 500 kg | 500 kg |
| Front Wheel | Nylon - 7 x 6 cm | Nylon - 7 x 6 cm |
| Rear Wheel | Nylon - 10 x 5 cm | Nylon - 10 x 5 cm |
| Pivoting Wheel | 4 x 2.6 cm | 4 x 2.6 cm |
| Lifting Speed (Unloading) | 110 mm/s | 110 mm/s |
| Lifting speed (full load) | 80 mm/s | 80 mm/s |
| Descent Speed | 80 mm/s | 80 mm/s |
| Lifting Motor | 12V0.8 | 12V0.8 |
| Battery Voltage | 12/33 V/Ah | 12/33 V/Ah |
| Battery Weight +/- 5% | 10 kg | 10 kg |
| Approximate Dimensions | 160 x 79 x 140 cm | 160 x 79 x 160 cm |
| Net Weight | 197 kg | 219 kg |
| Battery Charger | Internal | Internal |
| Drums | Internal | Internal |
Technical Data
| Model | NSDYG0511 | NSDYG0513 |
| Typology | Electric Lift | Electric Lift |
| Traction | Manual | Manual |
| Max Fork Height | 9÷110 cm | 9÷130 cm |
| Fork Length | 115÷160 cm | 115÷160 cm |
| External Fork Length | 53.5 cm | 53.5 cm |
| Upright Overall Size | 140÷270 cm | 160÷290 cm |
| Turning Radius | 110 cm | 112 cm |
| Flow rate | 500 kg | 500 kg |
| Front Wheel | Nylon - 7 x 6 cm | Nylon - 7 x 6 cm |
| Rear Wheel | Nylon - 10 x 5 cm | Nylon - 10 x 5 cm |
| Pivoting Wheel | 4 x 2.6 cm | 4 x 2.6 cm |
| Lifting Speed (Unloading) | 110 mm/s | 110 mm/s |
| Lifting speed (full load) | 80 mm/s | 80 mm/s |
| Descent Speed | 80 mm/s | 80 mm/s |
| Lifting Motor | 12V0.8 | 12V0.8 |
| Battery Voltage | 12/33 V/Ah | 12/33 V/Ah |
| Battery Weight +/- 5% | 10 kg | 10 kg |
| Approximate Dimensions | 160 x 79 x 140 cm | 160 x 79 x 160 cm |
| Net Weight | 197 kg | 219 kg |
| Battery Charger | Internal | Internal |
| Drums | Internal | Internal |
