Pramac Lifter HY 10
Pantograph Pallet Truck - Professional 1000 kg
MPN: TR0420UV01M
€1,060.00
€868.85 tax excl.
Warranty 5
years
14 days to change your mind
Shipped on Pallet
Pramac Lifter HY20 - Professional Manual Scissor Lift Pallet Truck 1000 kg

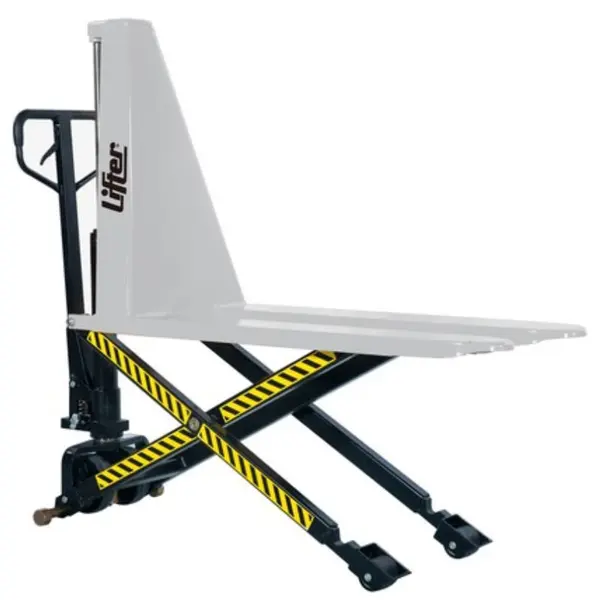

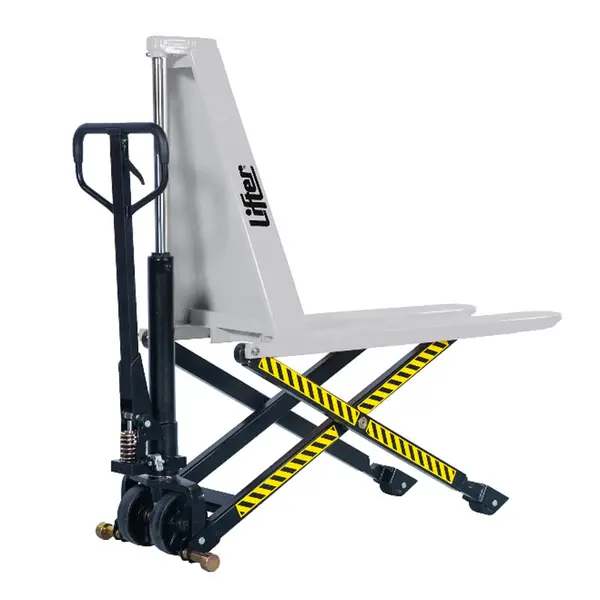

Pramac Lifter HY 10 is a professional manual scissor lift pallet truck with a load capacity of up to 1000 kg , designed for industrial and warehouse applications. It combines the function of a pallet truck, lifting table and workbench , offering a maximum lifting height of 800 mm to ensure ergonomic postures and optimize loading/unloading operations.
Equipped with manual hydraulic system and automatic stabilizers , it ensures safety and versatility in dynamic working environments.
TECHNICAL SPECIFICATIONS
Pramac HY 10 uses a manual hydraulic lifting system, with walk-behind propulsion and a nominal capacity of 1000 kg , centre of gravity at 600 mm . The forks measure 115x16x5 cm, while the lifting height reaches 71.5 cm (up to 80 cm with pantograph extension). The operating mass is 113 kg , with polyurethane tyres (front 18x5 cm, rear 8x7 cm). The total width is 54 cm , the turning radius 144 cm , ideal for narrow aisles.
FUNCTIONAL SPECIFICATIONS
High performance pantograph system
The pantograph system allows a higher lifting height than traditional pallet trucks, offering improved ergonomics and safety . Ideal for lifting and positioning operations in small spaces, it combines manual functionality and automatic stability for intensive professional applications.
Manual hydraulic lift up to 80 cm
The pantograph mechanism lifts loads up to a height of 80 cm via manual operation, with a maximum of 74 pump strokes at full load, ensuring progressive and stable elevation .
Proportional control valve for regulated lowering
The lever on the steering wheel allows precise control of the descent speed , essential for the safe handling of delicate loads.
Automatic stabilizers for operational safety
The rear stabilizers activate automatically above 40 cm ensuring stability and preventing oscillations during lifting operations.

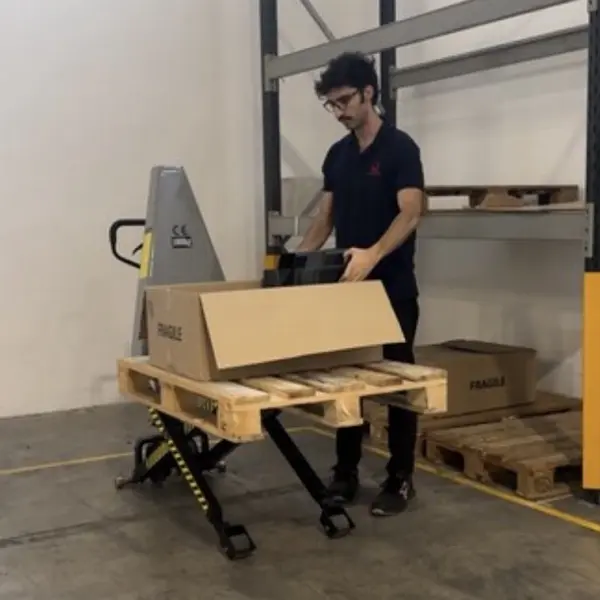

Multifunction: handling and workbench
This Pramac pallet truck is suitable both for handling and as a height-adjustable workbench , improving ergonomics and productivity in the warehouse and workshop.
Watch the Video
Characteristics
- Manual pallet truck for loads up to 1000 kg
- Dimensions 165 x 54 cm
- Pantograph structure
- Ideal for professional use
- Polyurethane wheels
- Strong and resistant constitution
Technical Data
| Model | Lifter HY 10 |
| Typology | Manual |
| Rudder Height | 56÷123 cm |
| Lifting Height | 71.5 cm |
| Fork Height Lowered | 8.5 cm |
| Flow rate | 1000 kg |
| Wheels | Polyurethane |
| Fork Length | 115 cm |
| Fork Width | 16 cm |
| Fork Thickness | 5 cm |
| Dimensions | 165 x 54 cm |
| Weight | 113 kg |
Technical Data
| Model | Lifter HY 10 |
| Typology | Manual |
| Rudder Height | 56÷123 cm |
| Lifting Height | 71.5 cm |
| Fork Height Lowered | 8.5 cm |
| Flow rate | 1000 kg |
| Wheels | Polyurethane |
| Fork Length | 115 cm |
| Fork Width | 16 cm |
| Fork Thickness | 5 cm |
| Dimensions | 165 x 54 cm |
| Weight | 113 kg |
