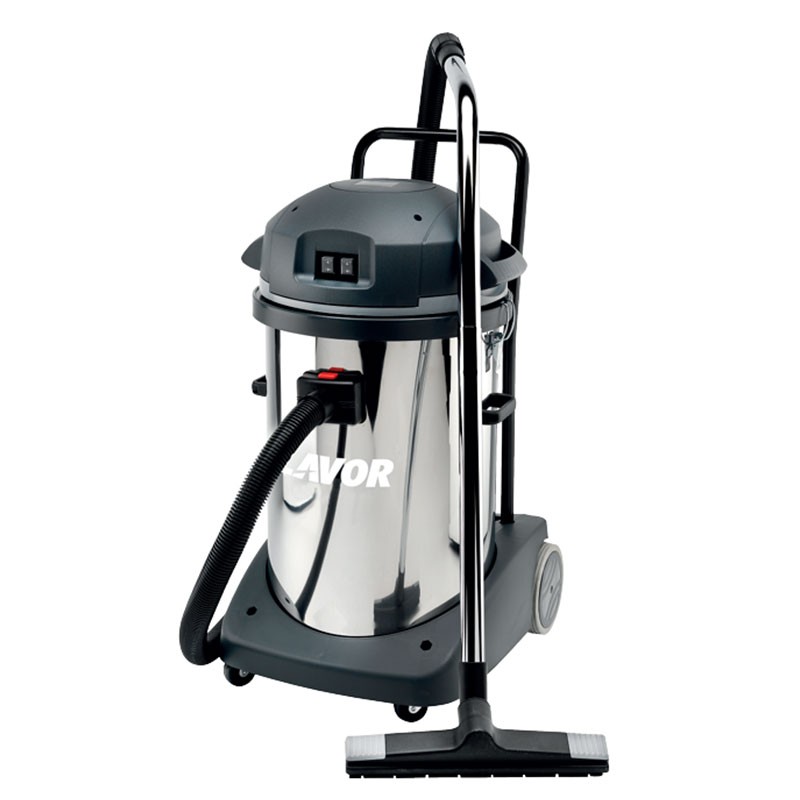

Lavor Domus IF
Single-Phase Vacuum Cleaner

Lavor Domus IF - Professional Vacuum Cleaner

Lavor Domus IR is a professional vacuum cleaner for dust and liquids designed to meet the needs of professional operators, cleaning companies, workshops, laboratories, artisan businesses, and industrial environments where reliability, suction power, and durability are essential requirements. Entirely Made in Italy, this professional vacuum cleaner drum combines an extremely robust structure with high performance thanks to its 2 silenced two-stage motors, capable of ensuring significant suction capacity for both solid materials and liquids.

Designed for intensive use, Lavor Domus IR features a large 78 L stainless steel tank, a suction system with by-pass cooling, an anti-static system, an anti-shock trolley, a liquid discharge hose, and professional accessories with a 40 mm diameter. The high air flow rate of 108 L/sec, the suction power of 22 kPa, and the maximum power of 2400 W allow it to effectively tackle even the most demanding cleaning operations, maintaining high productivity and reliable long-term operation.

Functional Specifications

High-Performance Professional Suction

Lavor Domus IR is equipped with 2 silenced two-stage motors powered by 230V single-phase, developing a rated power of 2000 W and a maximum power of 2400 W. This configuration allows for a suction power of 22 kPa and an air flow rate of 108 L/sec, ensuring high suction force for both fine dust collection and liquid vacuuming.

By-Pass Cooling System

The suction system with by-pass cooling protects the motors from the direct flow of the aspirated air, limiting overheating and increasing the machine's reliability during continuous use. This structural solution extends the operating life of the motor unit even under intensive professional use conditions.

High-Strength Stainless Steel Tank

The robust stainless steel tank offers high resistance to impacts, corrosion, and chemical agents commonly found in work environments. The total capacity of 78 L, with 35 L for dust and 48 L for liquids, allows for long working cycles, reducing emptying operations.

Dust and Liquid Suction

Thanks to the presence of the float valve, the transition from solid to liquid suction occurs in complete safety. The float automatically interrupts suction when the maximum liquid level is reached, effectively protecting the motors.

Quick Liquid Discharge

The practical tank discharge hose allows for quick emptying of the container without having to lift or tilt the entire machine. This solution improves ergonomics and reduces downtime during cleaning operations.

Anti-Static System

The anti-static system helps reduce the accumulation of electrostatic charges during dust suction, improving operational safety and user comfort, especially in professional environments.

Anti-Shock Trolley and Non-Marking Wheels

The anti-shock trolley protects the machine body from accidental impacts during movement, while the non-marking wheels allow for smooth maneuvering without leaving marks on surfaces. This configuration makes the Lavor Domus IR particularly suitable for environments where maximum floor care is required.

Maximum Practicality During Maintenance

The vacuum cleaner is equipped with professional locking hooks, a cloth filter, a tip-over resistant head rest that facilitates filter cleaning operations, and a 10 m power cord, ideal for operating over large areas while limiting the need to move between electrical outlets.

Professional Accessories Ø40 mm

The machine uses professional accessories with a 40 mm diameter, a standard particularly suitable for ensuring high air flow rates, reduced pressure drops, and greater efficiency in vacuuming heavy dirt, debris, liquids, and dust.

Features

• Professional vacuum cleaner for dust and liquids
• 230V single-phase power supply
• Rated power 2000 W
• Maximum power 2400 W
• 2 silenced two-stage motors
• Suction system with by-pass cooling
• Suction power 22 kPa
• Air flow rate 108 L/sec
• Total tank capacity 78 L
• Dust capacity 35 L
• Liquid capacity 48 L
• Stainless steel tank
• Anti-static system
• Anti-shock system
• Anti-shock trolley
• Float valve
• Cloth filter
• Liquid discharge hose
• Professional locking hooks
• Tip-over resistant head rest
• Non-marking wheels
• 10-meter power cord
• Professional accessories Ø40 mm
• Made in Italy

Watch the Lavor Domus IF Video

Standard Equipment

• 2.5 m hose

• 2 Chrome Steel Extensions

• 250 mm Flat Lance

• Round Brush

• 300 mm Accessory Holder

• 300 mm Bristled Accessory

• 300 mm Liquid Accessory

• Cloth Filter


Optional Equipment

• 10 Paper Filter Bags

• Nylon Pre-filter

• Washable Filter

• Hepa Filter
