IPC GC 2/90 SUB
90 L Flooded Area Vacuum Cleaner

IPC GC 2/90 SUB - Special Vacuum Cleaner for Large Quantities of Water 504 m³/h

The IPC GC 2/90 SUB professional vacuum cleaner for flooded areas, code ASDO15 , is designed for intensive work in agricultural, construction, industrial, automotive, and hardware environments . Thanks to the on-board power socket and professional submersible pump, it guarantees continuous and safe drainage even in critical conditions. Equipped with a brass connection for liquid drainage , it offers maximum resistance and durability. The maximum power of 2400 W , the depression of 2560 mmH2O , and the air flow rate of 504 m³/h ensure high performance. The capacious 90 L polyethylene tank allows for prolonged work without interruptions. The standard accessories – including a 5 m high-resistance hose , rigid pipes, liquid brush, and antifreeze hose – make the IPC GC 2/90 SUB a complete and reliable vacuum cleaner for the professional management of large quantities of water.

5 m high resistance flexible hose
Power cable 8.5 m

Functional specifications

Professional vacuum cleaner for managing flooded areas

The IPC GC 2/90 SUB flooded area vacuum cleaner is a professional vacuum cleaner designed for the rapid and continuous recovery of large quantities of water in agricultural, construction, industrial, automotive, and hardware environments. Part of the category of special vacuum cleaners for flooded areas, it is designed to ensure reliability, power, and safety in demanding operating scenarios.

90 L drum and flow rate 504 m³/h

The GC 2/90 SUB is equipped with two motors for a total power of 2000–2400 W, offering professional suction capacity. The 2560 mmH2O vacuum and 504 m³/h air flow rate ensure high performance even with particularly difficult-to-remove liquids. The 90 L tank made of high-strength plastic (polyethylene) allows for long work cycles without interruption, while the on-board power socket facilitates the use of the integrated submersible pump.

Integrated professional submersible pump

One of the strong points of the IPC GC 2/90 SUB is its professional submersible pump , with a power of 370 kW , a flow rate of 180 L/min and a head of up to 7 metres . This configuration allows for continuous discharge during suction, drastically reducing intervention times. The brass fitting guarantees robustness and resistance to corrosion, while the pump is capable of expelling solids up to 20 mm in diameter, making it suitable even for difficult scenarios such as construction sites and very dirty rooms.

Robust and compact water aspirator

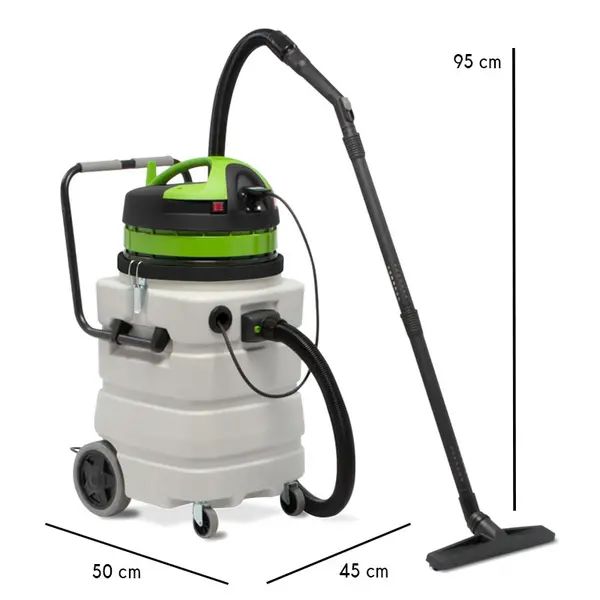

Measuring 45 x 50 x 95 cm and weighing 26 kg, the vacuum cleaner is compact and stable. The noise level of 77 dB(A) (compliant with EN 60704 and IEC 60335 standards) ensures more comfortable use than other machines in the same category. The 8.5 m power cord offers an excellent operating range.

Watch the video

Submersible Pump Tutorial

Liquid Front Accessory Assembly Tutorial

Fields of Application

• Agriculture : Removes water from fields and temporary ponds
• Construction : clear construction sites, excavations, and flooded basements
• Hardware : manages water spills in workshops and warehouses
• Automotive: Recover liquids in garages and industrial washes
• Industry : Sucks up process water and industrial floods
• Special flooded areas : intervenes on large surfaces and floods

Characteristics

• Vacuum cleaner for floods
• Power 2.4 kW
• Air flow 504 m³/h
• 90 litre polyethylene drum
• Brass fitting for liquid drainage
• Professional submersible pump
• 5m Flexible Hose
• Independent motors with illuminated buttons
• Hermetically sealed float
• Integrated anti-foam system
