Nuair B3800B/200 CM3
Belt compressor 200L 3hp

Nuair B3800B/200 CM3 - Belt compressor 200L

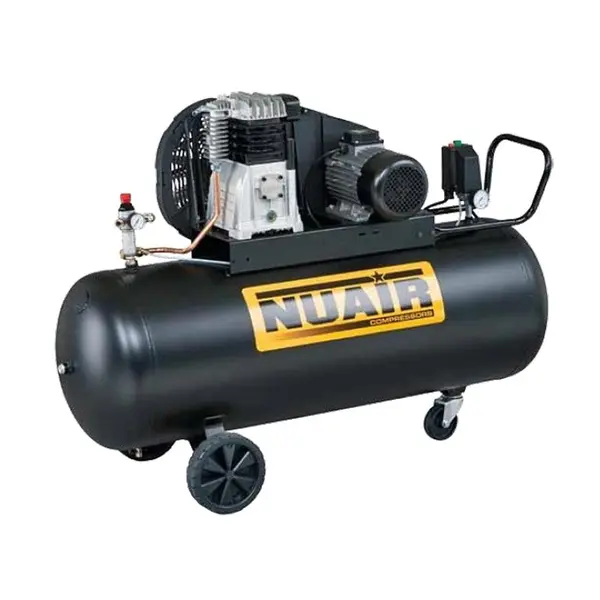

Nuair B3800B/200 CM3 is a single-stage belt compressor with a 200L tank belonging to the Standard Range , which includes professional screw compressors that are easy to use and highly reliable. Nuair single-stage belt compressors are built to guarantee, thanks to the reduced rotation speed of the pumping units, reliability and durability over time . Suitable for heavy and continuous use, the Nuair B3800B/200 CM3 compressor is the ideal hobby compressor for DIY, professionals and small businesses.

High quality technical compressor Made in Italy , Nuair B3800B/200 CM3 is a single-stage belt compressor equipped with a lubricated 3 HP B3800B pump unit . Extremely reliable pump unit , with 2 cast iron cylinders .

Functional specifications

High efficiency pumping group

The B3800B pumping unit is highly efficient and places the Nuair B3800B/200 CM3 compressor among the best Nuair compressors in the range.

Nuair 3 HP compressor

The Nuair B3800B/200 CM3 compressor is equipped with a 3 HP, single-phase 230V electric motor with 2.2 kW power. The supported pressure is 10 bar .

Air intake 390 L/min

Belt compressor with a large capacity for producing aspirated air, Nuair B3800B/200 CM3 has a flow rate of 390 L/min . Thanks to the 200 L tank , this Nuair compressor has a large air reserve to ensure long continuity of work.

Robust compressor

Nuair B3800B/200 CM3 is a compressor with a robust structure, with large wheels and a comfortable handle for easy transport. This Nuair compressor has a robust plastic belt guard that protects all moving parts.

Second quick attack on the tank

This Nuair compressor has a second quick coupling screwed directly onto the tank, for better use of the compressed air .

Nuair: Italian excellence in compressed air

Synonymous with innovation , design and technology , Nuair is an Italian excellence that, thanks to its consolidated experience in the compressed air sector, has become the world's largest manufacturer of piston compressors and one of the largest manufacturers of screw compressors. Having established itself on the market thanks to the great innovative propulsion , design and dynamism of its compressors, Nuair combines high technical quality of compressors with the search for new technical solutions to satisfy the professional, the craftsman and the hobbyist user.

Characteristics

• Single stage belt driven compressor
• 200 L tank
• Reduced rotation speed of the pumping group
• Reliability and durability over time
• High technical quality
• Made in Italy
• 3 HP electric motor
• High air intake production 390 L/min
• Large wheels and comfortable handle
• Sturdy plastic belt guard
• Second screwed quick coupling
