Nuair B3800B / 100 CM3
Belt driven compressor 100L

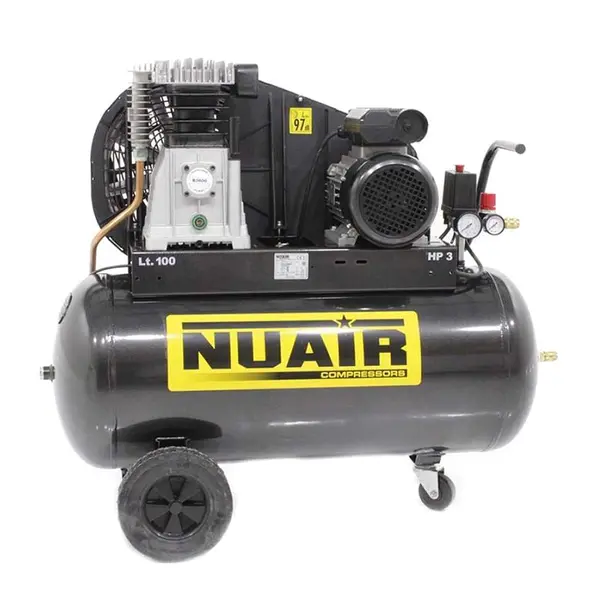

Nuair B3800B / 100 CM3 - 100L single-stage belt compressor

Nuair B3800B / 100 CM3 is a single-stage belt compressor with 100L tank belonging to the Standard Range , which includes professional screw compressors , easy to use and highly reliable. Nuair's single-stage belt compressors are built to guarantee reliability and durability over time , thanks to the reduced rotation speed of the pumping units. Suitable for heavy and continuous use, the Nuair B3800B 100 CM3 compressor is the ideal hobby compressor for DIY, professionals and small businesses.

Compressor of high technical quality Made in Italy , Nuair B3800B / 100 CM3 is a single-stage belt compressor equipped with a 3 HP lubricated B3800B pumping unit . Extremely reliable pumping unit , with 2 cast iron cylinders .

Functional specifications

High efficiency pumping unit

The B3800B pumping unit is highly efficient and places the Nuair B3800B / 100 CM3 compressor among the best Nuair compressors in the range.

3 HP Nuair compressor

The Nuair B3800B / 100 CM3 compressor is fitted with a 3 HP , single-phase 230V electric motor with 2.2 kW power. The supported pressure is 10 bar .

Air intake 390 L / min

Nuair B3800B / 100 CM3 belt-driven compressor with a large capacity of intake air, has a flow rate of 390 L / min . Thanks to the 100 L tank , this Nuair compressor has a large air reserve to ensure a long continuity of work.

Robust compressor

Nuair B3800B / 100 CM3 is a compressor with a sturdy structure, with large wheels and a comfortable handle for easy transport. This Nuair compressor features a sturdy plastic belt guard that protects all moving parts.

Second quick coupling on the tank

Nuair B3800B / 100 CM3 has a second quick coupling screwed directly onto the tank, for better use of compressed air .

Nuair: Italian compressed air excellence

Synonymous with innovation , design and technology , Nuair is an Italian excellence which, thanks to its consolidated experience in the compressed air sector, has become the largest manufacturer of piston compressors in the world and one of the major manufacturers of screw compressors. Established on the market thanks to the great innovative propulsion , the design and dynamism of its compressors, Nuair combines the high technical quality of the compressors, in search of new technical solutions to satisfy the professional, the craftsman and the hobby user.

Features

• Single-stage belt compressor
• 100 L tank
• Reduced pumping unit rotation speed
• Reliability and durability over time
• High technical quality
• Made in Italy
• 3 HP electric motor
• Large production of intake air 390 L / min
• Large wheels and comfortable handle
• Sturdy plastic belt cover
• Second quick coupling screwed
