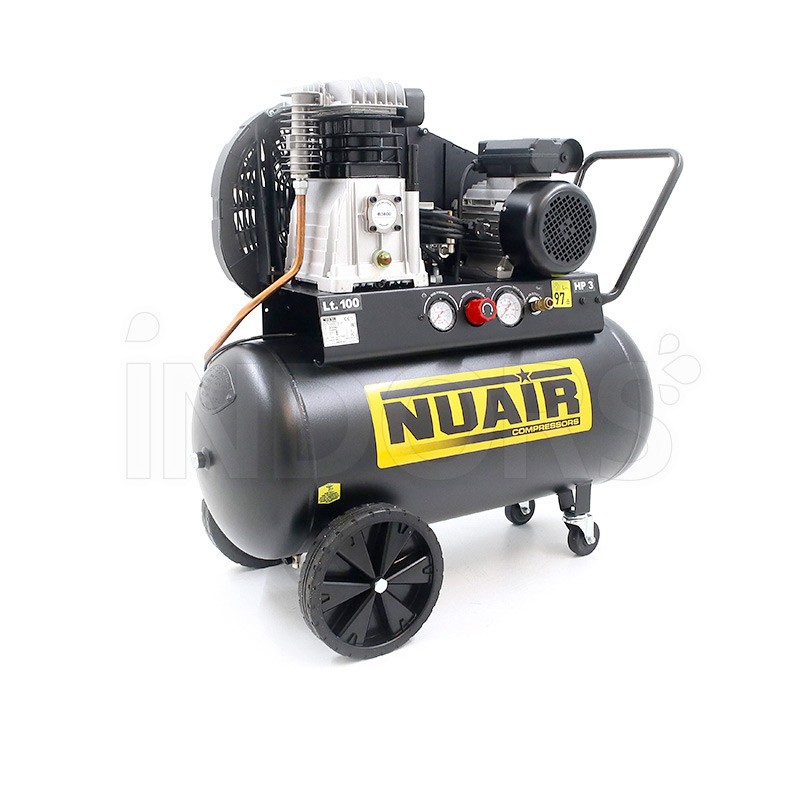

Nuair B3800B/3M/100 TECH
3HP Belt-Driven Compressor

Nuair B3800B/3M/100 TECH Range - Space-Saving 3HP Belt-Driven Compressor

Nuair B3800B/3M/100 belonging to the TECH range is a single-stage belt-driven compressor with 100L tank belonging to the Technical range , which includes professional screw compressors , simple to use and highly reliable.

High-quality technical compressor Made in Italy , Nuair B2800B/2M/100 TECH is a single-stage belt-driven compressor equipped with a lubricated 3 HP B3800B pump unit . Extremely reliable pump unit , with 2 cast iron cylinders .

Functional specifications

Intuitive controls and integrated instrumentation

With a panel integrated into the tank structure , this 100L Nuair compressor features oversized pressure gauges positioned for easy reading . Nuair Tech compressors feature ergonomic pressure reducer knobs with "step" adjustment .

Nuair 3 HP compressor

The Nuair B3800B/3M/100 Gamma TECH compressor is equipped with a 3 HP , single-phase 230V electric motor with 2.2 kW power.

Air intake 390 L/min

Belt-driven compressor with a large intake air production capacity, the Nuair B3800B/3M/100 TECH range has a flow rate of 390 L/min .

Robust compressor

Nuair B3800B/3M/100 Gamma TECH is a compressor with a robust structure, with oversized wheels that guarantee high stability and agility during transport . The two front wheels are swiveling . The solid handle can be fixed or tilted for easier transport. The robust plastic belt guard of this Nuair compressor protects all moving parts thanks to the large slots , to increase ventilation of the pumping unit.

Second quick attach on the tank

Nuair B3800B/3M/100 TECH range has a second quick coupling screwed directly onto the tank, for better use of the compressed air .

Nuair: Italian excellence in compressed air

Synonymous with innovation , design , and technology , Nuair is an Italian company of excellence that, thanks to its consolidated experience in the compressed air sector, has become the world's largest manufacturer of piston compressors and one of the leading manufacturers of screw compressors. Having established itself on the market thanks to the highly innovative propulsion , design , and dynamism of its compressors, Nu Air combines high-quality compressors with the pursuit of new technical solutions to satisfy professionals, artisans, and hobbyists.

Characteristics

• Single-stage belt compressor
• TECH range - professional compressors
• 100 L tank
• 3 HP electric motor
• Pressure 10 bar
• High technical quality Made in Italy
• B3800B pumping group
• Control panel integrated into the compressor structure
• Great power in a small space - ideal for craftsmen and small businesses
• Ball drain cock
• Robust oversized wheels and pivoting front wheels
• Durable plastic belt guard
• Tilting handle for easy transport
• Second quick coupling screwed onto the tank
