ABAC LN1 A49B 0 T5.5 DOL
Piston Compressor
Silenced 5.5 HP

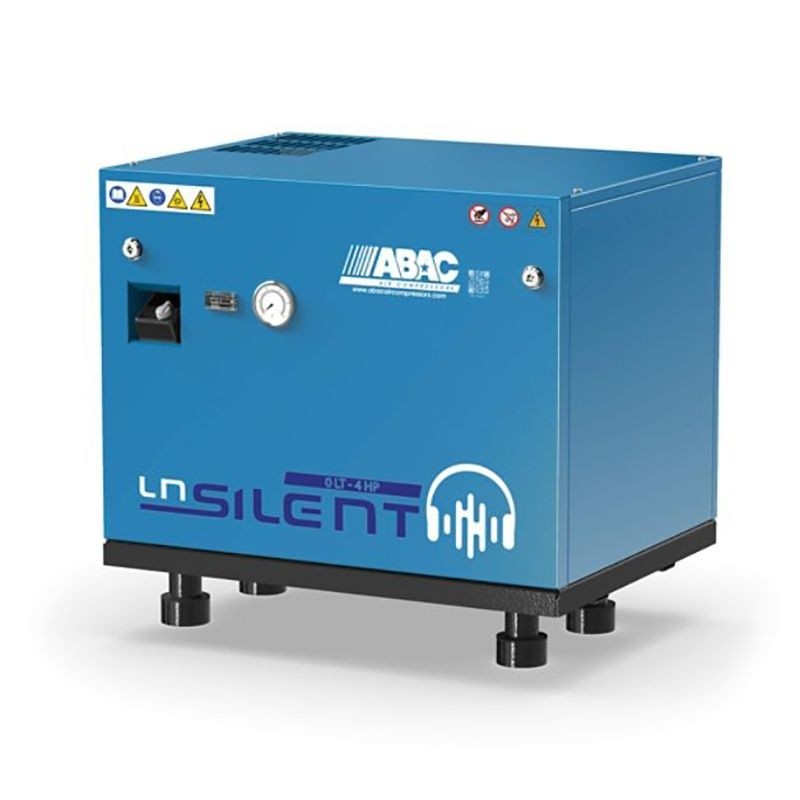

ABAC LN1 A49B 0 T5.5 DOL - Lubricated Piston Compressor

The ABAC LN1 A49B 0 T5.5 DOL Silent Piston Compressor is part of the ABAC LN Silent S1 line of compressors and is a compressor with lubricated belt drive that is highly reliable even in difficult environments thanks to the efficient cooling system with large flywheel. .

Furthermore, this professional ABAC compressor is extremely silent , making it a machine also suitable for delicate environments, the noise level is in fact only 69 dB(A) .

These ABAC Lubricated Piston Compressors allow quick maintenance thanks to easy access to the components. Furthermore, ABAC of the LN SILENT S1 line have a support base for the tank, DOL.

The ABAC LN1 A49B 0 T5.5 DOL compressor has an integrated Control Panel with front pressure gauge and ergonomic level for greater ease of reading.

Technical specifications

ABAC LN1 A49B 0 T5.5 DOL in question have a 400/3/50 Volt power supply and an engine power of 5.5 Hp . This Lubricated Piston Compressor is characterized by a pressure of 11 bar and 598 L/min of air output . The absorbed power is 4 kW . The model in question does NOT have a tank included.

Furthermore, the ABAC LN SILENT S1 are characterized by their silence, in fact they reach a maximum of 69 dB(A), becoming the ideal machines even in more delicate environments.
This ABAC Professional Compressor is equipped with an easy to read control panel with front pressure gauge and ergonomically positioned.

Characteristics

• 598 L/min of air delivered
• 5.5 HP
• Power absorbed 4 kW
• Extremely Quiet
• Simple Control Panel
• High performance
• Lubricated
• Belt transmission
• A49B Pump Group
• 1400 rpm

1. Superior performance, easy to use
   air filter in a cool and easily accessible area

2. Lower noise level
   Sound-absorbing foam on all panels of the structure

3. Reliability in any condition
   Efficient cooling system with large flywheel

4. Easy to read
   Pressure gauge on the front panel, ergonomically designed

5. Reliability and long life
   Pressure switch

6. Long-lasting pumps and drive components
   Non-return valve to depressurize

7. Easy access to internal components
   Removable panels for easy maintenance

8. Lower noise level
   Anti-vibration bearings

9. Lower noise level
   Shutter

10. Higher performance
    Intercooler and aftercooler
