ABAC LN2 A49B 0 T4 DOL
Silent Compressor 4 HP

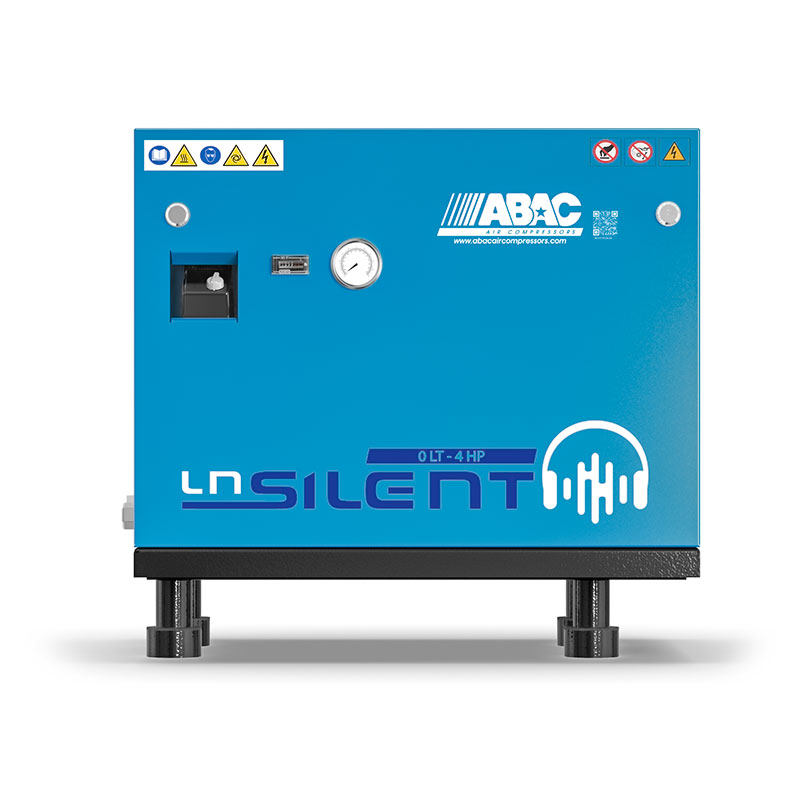

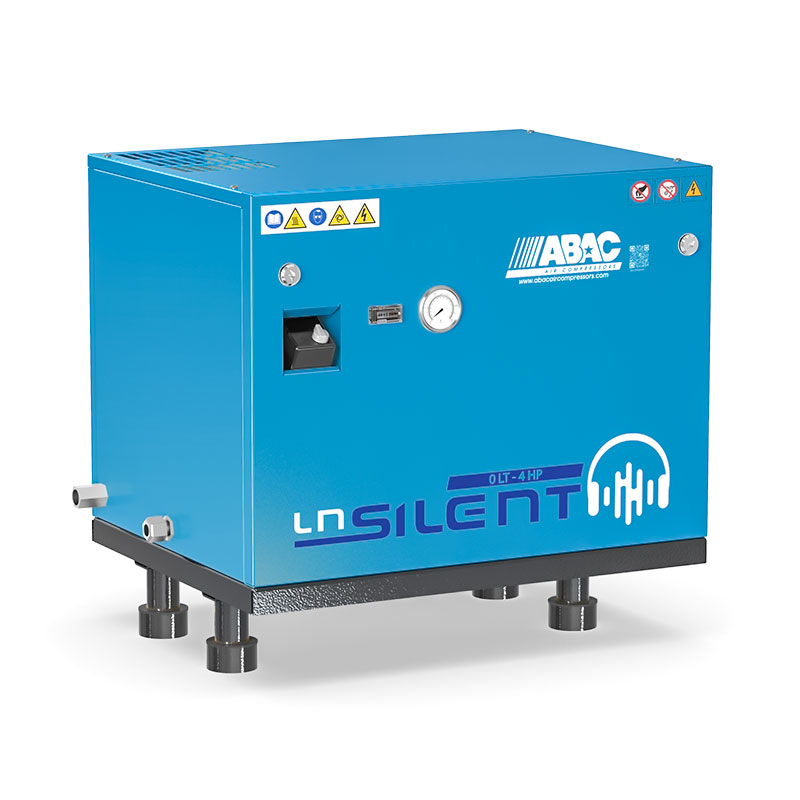

Abac LN2 A49B 0 T4 DOL - Silenced Piston Compressor

Abac LN2 A49B 0 T4 DOL is a super silent professional air compressor with belt drive . The compressor offers high reliability in every situation, thanks to its high-efficiency cooling system.

Technical specifications

The Abac LN2 A49B 0 T4 DOL air compressor with belt drive is easy to read, powered by 400 V , features a front pressure gauge and has an ergonomic design , which allows for easy handling. Its high silence of 69 dB is guaranteed by the presence of anti-vibration bearings , which allow the use of the compressor in environments where loud noises are not permitted, therefore close to homes, hospitals, parks etc...

The compressor has an air flow rate of 553 L/min and is capable of exerting a pressure of 11 bar , with a power of 3 kW , and a motor with 1300 RPM and 4 HP . This Abac LN2 A49B 0 T4 DOL compressor is oil lubricated and features an A49B pump , has an integrated control panel and a cooling fan . This model does not have the tank included.

Characteristics

• Belt transmission
• Pistons
• Silent
• Reliable
• Ergonomic design
• A49B pump

1. Superior performance, easy to use
   air filter in a cool and easily accessible area

2. Lower noise level
   Sound-absorbing foam on all panels of the structure

3. Reliability in any condition
   Efficient cooling system with large flywheel

4. Easy to read
   Pressure gauge on the front panel, ergonomically designed

5. Reliability and long life
   Pressure switch

6. Long-lasting pumps and drive components
   Non-return valve to depressurize

7. Easy access to internal components
   Removable panels for easy maintenance

8. Lower noise level
   Anti-vibration bearings

9. Lower noise level
   Shutter

10. Higher performance
    Intercooler and aftercooler
