ABAC LN1 A39B 0 T4 DOL / 10 bar
4 HP Silent Compressor

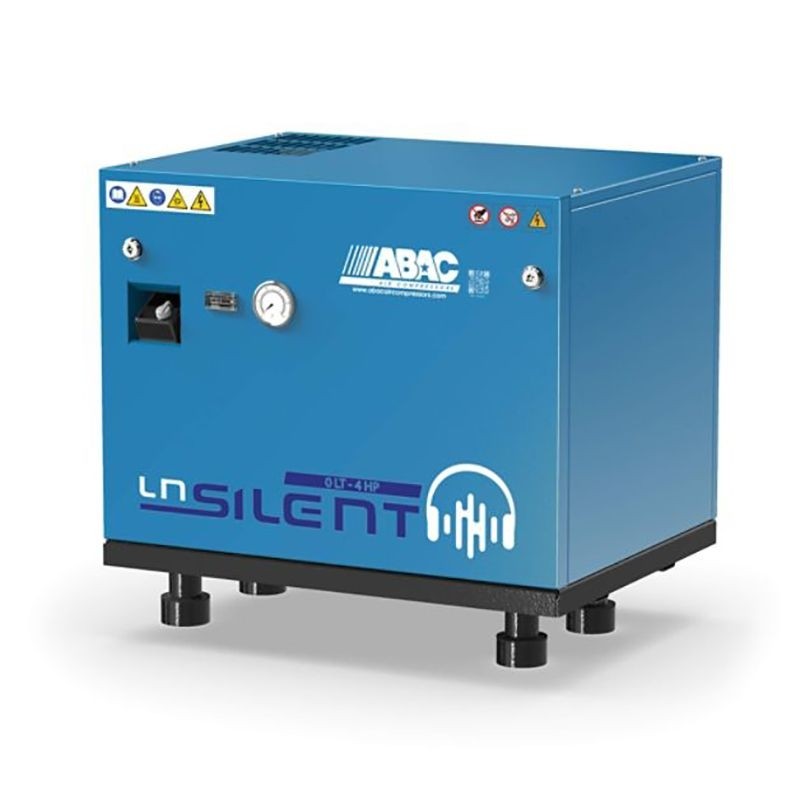

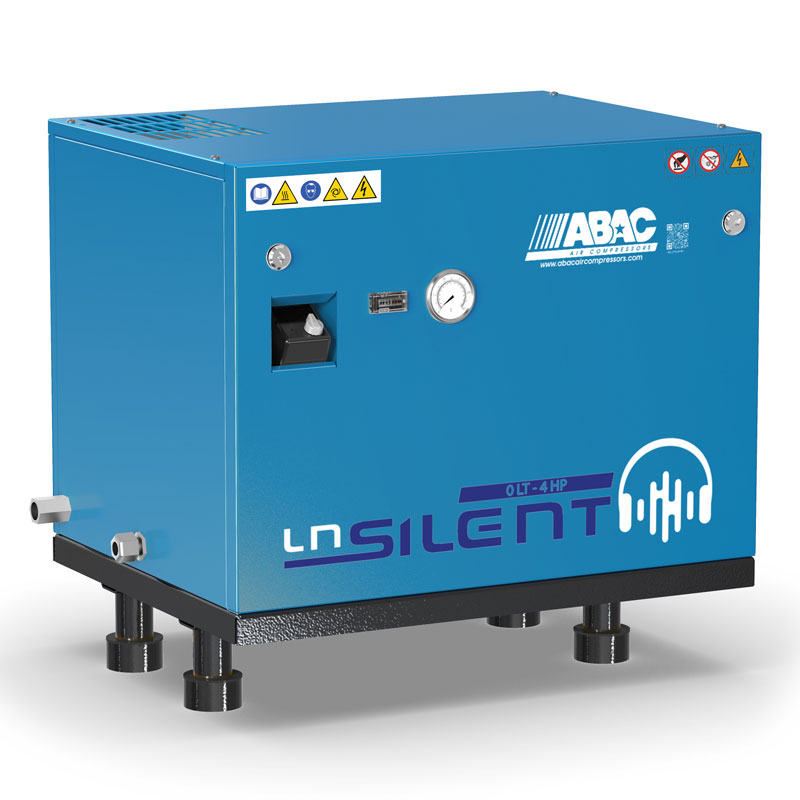

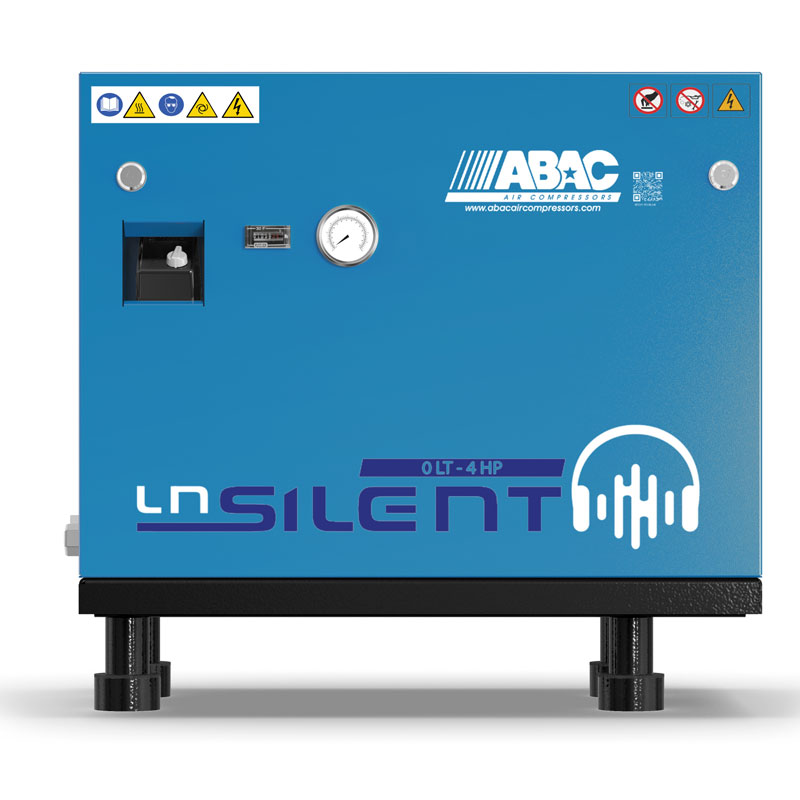

ABAC LN1 A39B 0 T4 DOL - Belt-Driven Piston Compressor

The ABAC LN1 A39B 0 T4 DOL Silent Piston Compressor is a highly reliable, lubricated belt-driven compressor in any context thanks to the efficient cooling system with large flywheel.

Furthermore, this professional ABAC compressor is extremely silent, making it a machine suitable even for delicate environments, as the noise level is only 68 dB(A).

These ABAC Lubricated Piston Compressors allow for quick maintenance thanks to easy access to components. Furthermore, the ABAC LN SILENT S1 line features a DOL tank support base.

The ABAC LN1 A39B 0 T4 DOL compressor has an integrated control panel with front pressure gauge and ergonomic level for ease of reading.

Technical Specifications

The ABAC LN1 A39B 0 T4 DOL models in question have a power supply of 400/3/50 Volts and a motor power of 4 Hp . This lubricated piston compressor is characterised by a pressure of 10 bar and 490 L/min of air output . The absorbed power is 3 kW . The model in question does NOT have a tank included.

Furthermore, the ABAC LN SILENT S1 are characterised by their silence, reaching a maximum of 68 dB(A), making them the ideal machines even in the most delicate environments.
This ABAC Professional Compressor features an easy-to-read control panel with a front-mounted, ergonomically positioned pressure gauge.

Characteristics

• Extremely Quiet
• Simple Control Panel
• High performance
• 490 L/min of air output
• Lubricated
• Belt Drive
• A39B Pump Group
• 1300 rpm

1. Superior performance, easy to use
   air filter in a cool and easily accessible area

2. Lowest noise level
   Sound-absorbing foam on all panels of the structure

3. Reliability in any condition
   Efficient cooling system with large flywheel

4. Easy to read
   Ergonomic pressure gauge on the front panel

5. Reliability and long life
   Pressure switch

6. Long-life pumps and transmission components
   Non-return valve for depressurization

7. Easy access to internal components
   Removable panels for easy maintenance

8. Lowest noise level
   Anti-vibration pads

9. Lowest noise level
   Shutter

10. Higher performance
    Intercooler and aftercooler
