Abac EXP A49B 270V FT4/FT 5,5
Vertical Belt-Driven Compressor

400V - 4÷5.5 HP
11 bar - 553÷595 L/min
Belt Driven - Lubricated

€1,683.00

€1,379.51 tax excl.

MPN: 4116028851

Select model

Select Accessories

COMEX 115/12D Vortex Blow Gun for Car...

30,00 €

+ info

Estimated Shipping
Friday 24 April

Quantity

Quantity Discounts

from 2 to 5pz	- 5 %
more than 5	Quote Request

Warranty 2 years

14 days to change your mind

Shipped on Pallet

You can choose the Secure Payment method you prefer

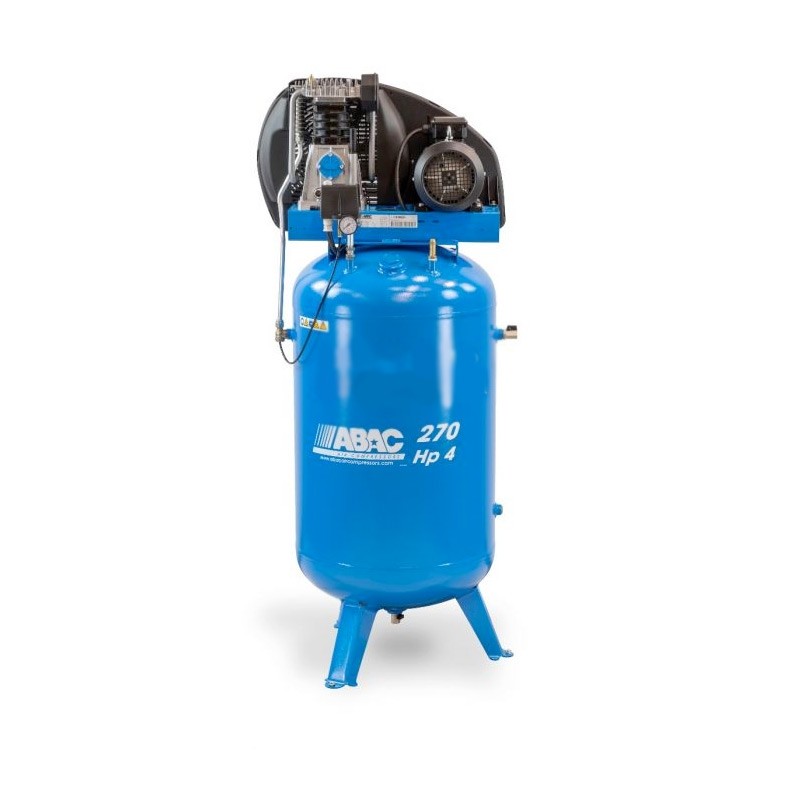

Abac EXP A49B 270V FT4/FT 5,5 - 200 L Vertical Piston Compressor

The Abac EXP A49B 270V FT4 and Abac EXP A49B 270V FT5.5 are two-stage reciprocating compressors designed to deliver high performance and reliability in demanding industrial environments. These models are known for their robust construction and operational efficiency, making them ideal for applications requiring consistent, high-quality airflow.

Abac EXP A49B 270V FT4/FT 5.5 are belt-driven, two-stage piston compressors that ensure efficient air compression, reducing energy consumption and extending the compressor's lifespan. The two-stage configuration achieves higher pressure with less motor effort, extending the device's lifespan. The fixed vertical installation is ideal for industrial spaces where space optimization is crucial.

The double filter outlet ensures that the compressed air delivered is of high quality, free from particles and moisture, making these compressors suitable for applications requiring pure air.

ABAC PRO A49B 270 VT - Vertical compressor from 4 to 5.5 HP

Catalog image

Available models

The following models can be selected from the drop-down menu:

EXP A49B 270V FT4 - cod. 4116028851
EXP A49B 270V FT5.5 - cod. 4116028852

Technical specifications

The 270-litre Abac vertical compressors have the following features:

Two-stage pumping group
Compact size
High efficiency
Less wear thanks to better cooling
Maximum pressure 11 bar
Innovative belt guard design for improved cooling airflow
270 L tank
Induction motor
Low rotation speed to guarantee a low operating temperature
Belt drive
Transmission pulley with ventilation fins
Ball purge valve
Three feet for maximum stability

Pumping Group

ABAC A49B pump units are the result of advanced technology and are unique in terms of reliability, durability, low operating temperatures, and efficiency. They use innovative materials with a low friction coefficient and high wear resistance:

oversized oil sumps
cast iron cylinders for longer life
die-cast aluminum heads for better heat dissipation
high-strength stainless steel reed valves
aluminum final cooler with fins

Applications

Use this compressor for:

Chiselling
Sanding/rotororbital
Screwing
Drilling
Sandblasting

Technical Data

Model	EXP A49B 270V FT4	EXP A49B 270V FT5,5
Power Supply	Three-phase - 400V	Three-phase - 400V
Horses	4 HP	5.5 HP
Power	3 kW	4.1 kW
Reservoir	270 L	270 L
Flow rate	553 L/min	595 L/min
Transmission	Belt	Belt
Max. pressure	11 bars	11 bars
Pumping Group	A49B	A49B
Engine RPM	1300 rpm	1400 rpm
Configuration	Vertical	Vertical
Configuration	Fixed - Vertical	Fixed - Vertical
Handle	NO	NO
Pressure Switch Kit	Double Output + Filter	Double Output + Filter
Dimensions	83 x 60 x 171 cm	83 x 60 x 171 cm
Weight	120 kg	145 kg

Technical Data

Model	EXP A49B 270V FT4	EXP A49B 270V FT5,5
Power Supply	Three-phase - 400V	Three-phase - 400V
Horses	4 HP	5.5 HP
Power	3 kW	4.1 kW
Reservoir	270 L	270 L
Flow rate	553 L/min	595 L/min
Transmission	Belt	Belt
Max. pressure	11 bars	11 bars
Pumping Group	A49B	A49B
Engine RPM	1300 rpm	1400 rpm
Configuration	Vertical	Vertical
Configuration	Fixed - Vertical	Fixed - Vertical
Handle	NO	NO
Pressure Switch Kit	Double Output + Filter	Double Output + Filter
Dimensions	83 x 60 x 171 cm	83 x 60 x 171 cm
Weight	120 kg	145 kg

On Request Accessories
