Fiac AB 100/415
Compressor 3 HP Made in Italy
410 Liters per minute
€690.00
€565.57 tax excl.
| or in 3 rates from 230.00 € with |  | |
| or in 3 rates from 230.00 € with |  |
library_add
more options
230V/400V - 3 HP
10 bar - 410 L/min
Serbatoio 100 L
Warranty 2 years
14 days to change your mind
Shipped on Pallet

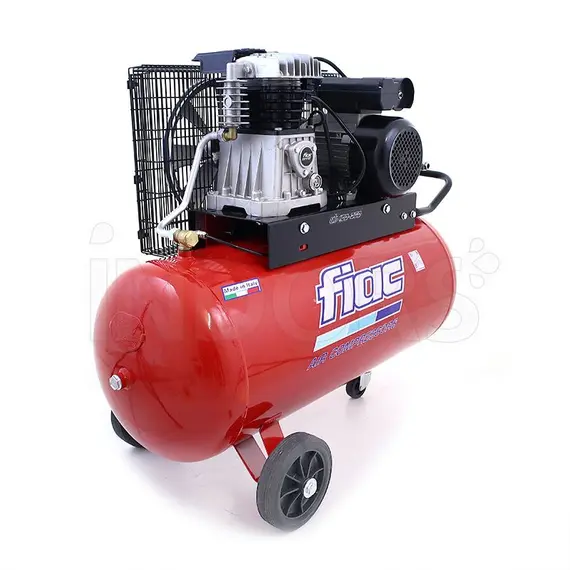

Fiac AB 100/415-3-MC and AB 100/415-3-TC Single-Phase Belt Driven Compressors 100 Liters Single-Phase or Three-Phase

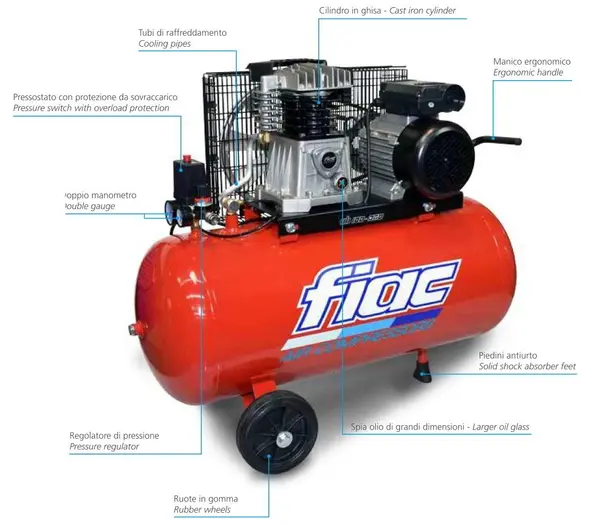

The compressors of the Fiac AB 100/415-3 range are professional single-stage lubricated compressors equipped with an AB415 pumping unit with double cast iron cylinder. Equipped with a 100 L tank , these compressors for professional use ensure high performance at low rotation speed , thus preventing engine overheating and significantly extending the life of the compressor.
With 3 HP power they have maximum operating pressure 10 bar and are equipped with practical transport wheels and a handle . The two models differ in terms of connection:
- Fiac AB 100/415-3-MC - Single phase 230V
- Fiac AB 100/415-3-TC - Three-phase 400V
These Fiac AB compressors are also perfectly suited for use in painting and for inflating tyres and with nail guns.
Professional Compressors Made in Italy
Available Models
| Model | AB 100/415-3-MC | AB 100/415-3-TC |
| Power | 3 HP - 2.2 kW | 3 HP - 2.2 kW |
| Revolutions per Minute | 1000 RPM | 1000 RPM |
| Flow rate | 410 L/min | 410 L/min |
| Connection | Single phase 230 V | Three phase 400V |
| Pumping Group | AB 415 | AB 415 |
Technical Specifications
The 100L Fiac single-phase compressors of the Fiac AB 100 line are belt-driven compressors equipped with a pressure switch with overload protection and pressure regulator . These 100L tank compressors stand out for their high air flow rate of 410/min and low engine speed (1000 RPM).
The Fiac AB 100/415-3 compressor has a 2-cylinder single-stage 3 HP motor (2.2 kW of absorbed power) and an air flow rate of 410 L/min with maximum pressure of 10 bar. Equipped with an AB 415 pumping unit, this piston compressor is ideal for professional use and works at 1000 rpm .

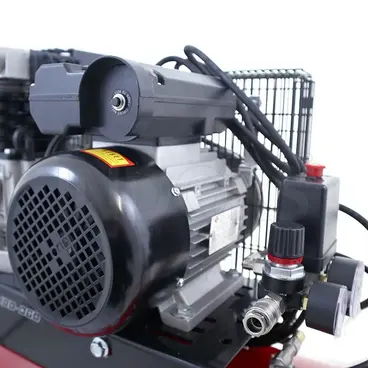

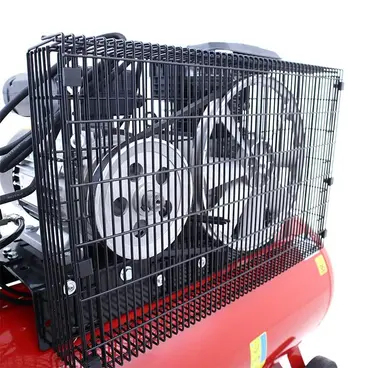

Mechanically flawless, the pumping unit is a robust and highly reliable Italian-made unit with a low rotation speed and belt drive . The electric motor used is a professional induction motor built to a high standard to support the high peaks required during the start-up phase.
Characteristics
- Single-phase compressor 230V / Three-phase 400V
- Single stage 2 cylinder engine
- Max pressure 10 bar
- Capacity 100 L
- Power 3 HP
- Engine speed 1000 RPM
- Flow rate 410 L/min
- Noise level 76 dB
Technical Data
| Model | AB 100/415-3-MC | AB 100/415-3-TC |
| Code | 4116028316 | 4116028321 |
| Food | 230V | 400V |
| Power | 3 HP | 3 HP |
| Absorbed Power | 2.2 kW | 2.2 kW |
| Cylinders | 2 - Monostadium | 2 - Monostadium |
| Engine RPM | 1000 RPM | 1000 RPM |
| Scope | 410 L/min | 410 L/min |
| Pressure | 10 bars | 10 bars |
| Tank | 100L | 100L |
| Pompante Group | AB 415 | AB 415 |
| Noise level at 7 meters | 76 dB(A) | 76 dB(A) |
| Configuration | Cartellato | Cartellato |
| Dimensions | 50.2 x 98.2 x 91.5h cm | 50.2 x 101.8 x 91.5h cm |
| Peso | 58 kg | 76 kg |
Technical Data
| Model | AB 100/415-3-MC | AB 100/415-3-TC |
| Code | 4116028316 | 4116028321 |
| Food | 230V | 400V |
| Power | 3 HP | 3 HP |
| Absorbed Power | 2.2 kW | 2.2 kW |
| Cylinders | 2 - Monostadium | 2 - Monostadium |
| Engine RPM | 1000 RPM | 1000 RPM |
| Scope | 410 L/min | 410 L/min |
| Pressure | 10 bars | 10 bars |
| Tank | 100L | 100L |
| Pompante Group | AB 415 | AB 415 |
| Noise level at 7 meters | 76 dB(A) | 76 dB(A) |
| Configuration | Cartellato | Cartellato |
| Dimensions | 50.2 x 98.2 x 91.5h cm | 50.2 x 101.8 x 91.5h cm |
| Peso | 58 kg | 76 kg |
