Fiac AB 300/678
Wheeled Air Compressor 5.5 HP 270L Tank

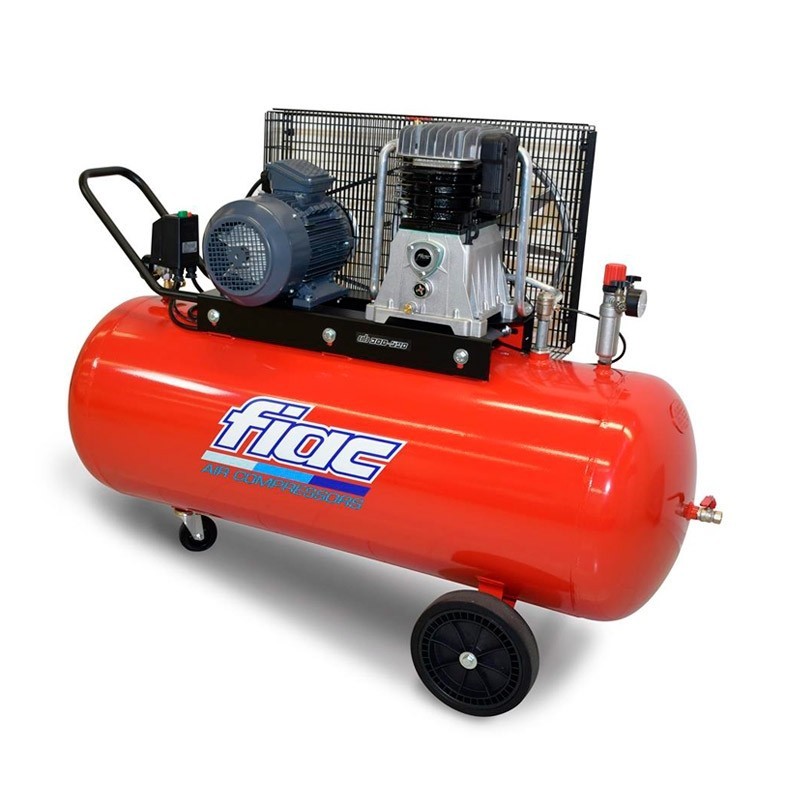

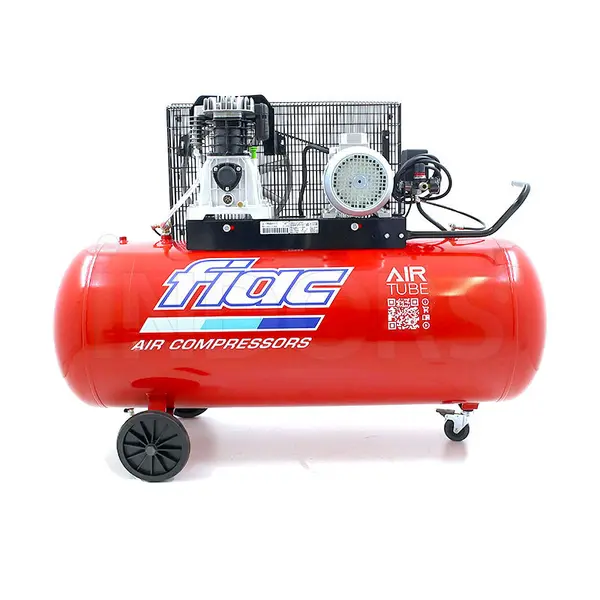

Fiac AB 300/678 - Wheeled Air Compressor 5.5 HP 270L Tank

FIAC AB 300/678 is a professional belt-driven compressor designed to offer reliability and continuous use in workshops, businesses, and workplaces where compressed air is an essential resource for daily activities. Its robust construction and configuration designed for professional use make it suitable for supporting various operational needs, from maintenance to industrial activities.

The belt drive and low-speed operation are solutions aimed at durability and reducing component wear. The FIAC professional compressor also integrates construction features designed to ensure long-term reliability and stable operation, offering a solution for those seeking a machine designed for regular and demanding use.

Technical Specifications

The FIAC belt-driven compressor is equipped with 400V power supply, a 5.5 HP motor, and an absorbed power of 4 kW. The AB 678 pump unit uses a 2-cylinder two-stage configuration with belt drive and a rotation speed of 1000 RPM, a solution designed to prioritize reliability, component durability, and reduced wear over time.

The tank has a capacity of 270 liters and is protected by epoxy powder coating for good long-term resistance. The machine achieves an air flow rate of 650 L/min and a maximum pressure of 10 bar, with a declared noise level of 74 dB(A). The solid structure and construction system aimed at reducing vibrations complete the compressor's technical features.

Functional Specifications

Belt-Driven Compressor

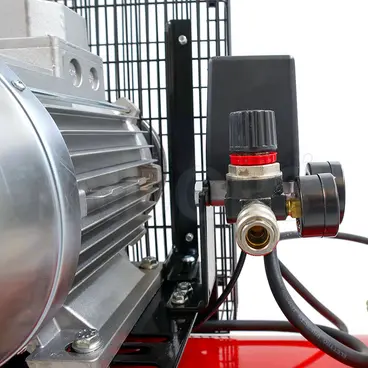

This oil-lubricated piston compressor with belt drive is ideal for professional use. The Fiac AB 300 compressor is a two-stage compressor, equipped with 2 pistons that compress air in 2 pressure stages, to achieve a lower air temperature. With cooling pipes, cast iron cylinder, pressure switch and overload protection, dual pressure gauge, metal bearing cover, and large oil level indicator. Reduced vibrations and noise impact.

Epoxy Powder Coating

Epoxy powder coated to ensure perfect long-term durability.

Features

• Belt-driven compressor
• 400 / 230 V
• Single-stage 2-cylinder motor
• Max pressure 10 bar
• Capacity 270 L
• Power 5.5 HP / 7.5 HP
• Motor speed 1000 / 1280 RPM
• Flow rate 650 / 831 L/min
• Noise level 74 / 76 dB(A)

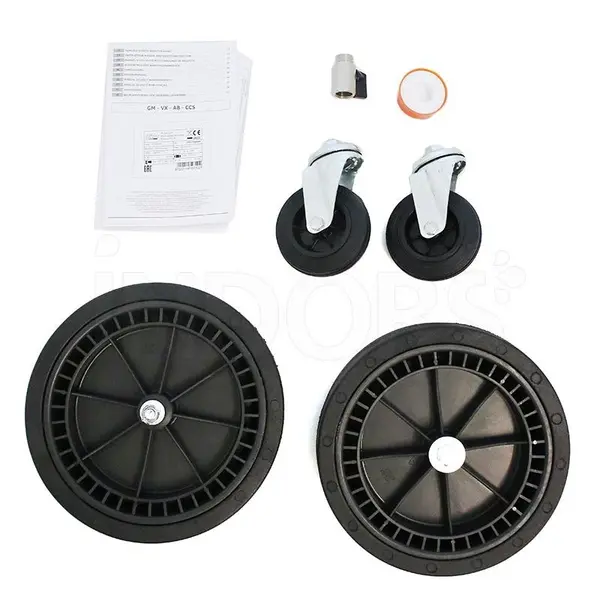

Standard Equipment

• Wheels
• Swivel casters
• Nozzle
• Instruction manual
