ABAC EXP A39B-0 200 CT4
Professional Air Compressor

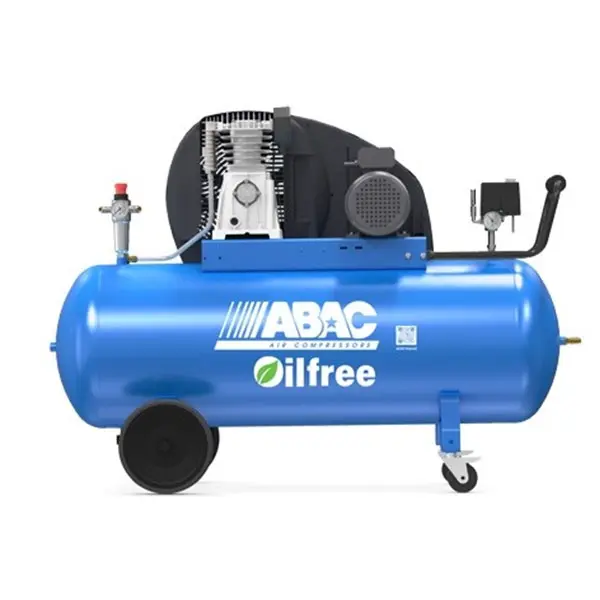

Abac EXP A39B-0 200 CT4 - 200 L Professional Piston Compressor

The Abac EXP A39B-0 200 CT4 piston compressor code 4116028565 represents an advanced and reliable solution for professional and industrial applications that require compressed air.

Belonging to the Abac EXceed range, the Abac EXpert compressor line is characterized by belt-driven single-stage piston compressors , designed to guarantee high performance and durability.

These Abac 200L compressors are characterized by comfort and ease of use, perfectly combining design with excellent technical features. Ideal for use in a professional environment where high technical quality of the materials and the pumping unit is required to obtain high performance.

The salient features of these Abac piston compressors are:

• 200 L tank
• Three-phase connection
• Power 3 kW (4 HP)
• A39B-0 pumping unit
• 1300 rpm

Catalog image

Functional specifications

The EXP A39B-0 200 CT4 model is equipped with a three-phase motor with a nominal power of 3 kW - 4 HP . The maximum pressure of 10 bar (145 psi), with 1300 rpm. The tank has a capacity of 200 L. The air flow rate is 486 L/min , while the tank capacity is 200 L.

This Abac compressor is equipped with four wheels , two of which are pivoting with brakes to facilitate movement and ensure stability during use.

Double air outlet, equipped with a filter to improve the quality of the air supplied, while the electrical system is equipped with a three-phase plug assembled for greater ease of use in industrial environments .

Watch the video

Abac EXCEED range presentation video.

Characteristics

• Three-phase piston compressor
• EXpert line by EXCEED
• High technical quality
• 486 L/min
• Ideal for professional/industrial use
• Portable configuration with 2 wheels + 2 swivel wheels with brakes
• Rubber grip
