ABAC EXP A39B-0 100 CM3/CT3
Compressor Oil Less 393 L/min

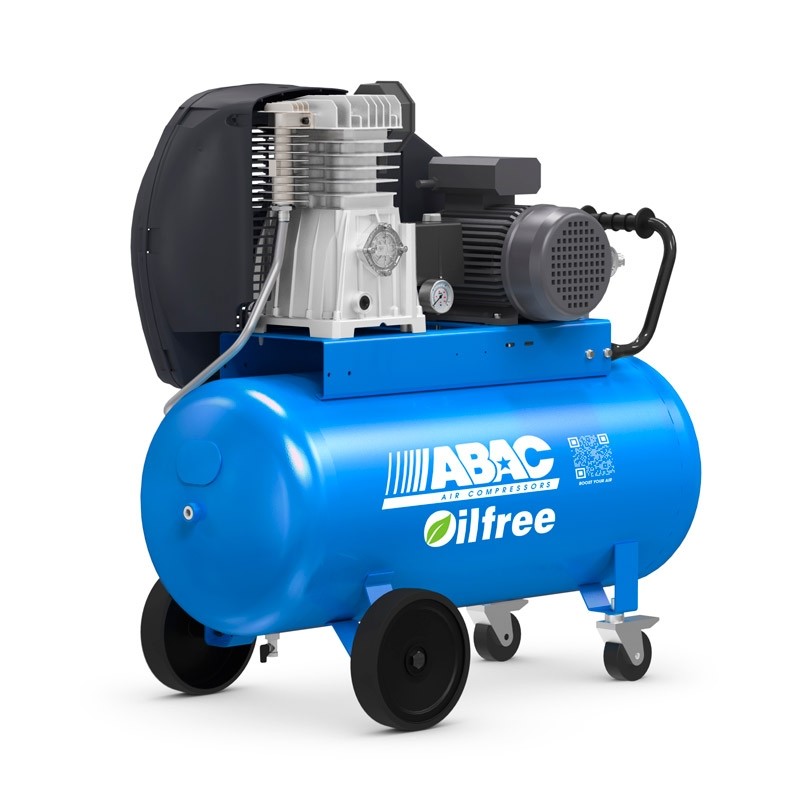

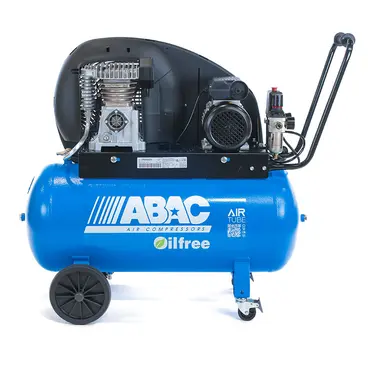

ABAC EXP A39B-0 100 CM3/CT3 - Oil Less Compressor 393 L/min

The Abac EXpert compressors model EXP A39B-0 100 available in the EXP A39B-0 100 Single-Phase 230V version and in the EXP A39B-0 100 Three-Phase 400V version are compressors for professional use forming part of the Abac EXceed range. Characterised by an excellent balance between performance and reliability , these air compressors with 90 L tank are designed to be safely connected to compressed air tools thanks to an output filter that protects their operation.

With a 90L tank, the Abac EXtensive EXP A39B-0 100 piston compressor has an air flow rate of 393 L/min and 3 HP power with a maximum pressure of 10 bar .

Image from Catalog

Available models

• EXP A39B-0 100 CM3 - Single phase 230V - 3 HP
• EXP A39B-0 100 CT3 - Three-phase 400V - 3 HP

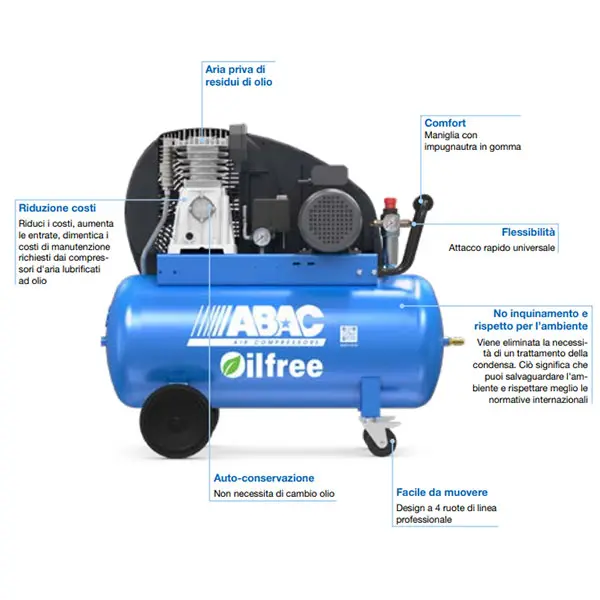

Functional specifications

Stable and Easily Transportable

With a sturdy structure supported by 4 wheels , 2 of which are swivel and have a brake at the front and 2 of which are 200 mm at the rear, this professional 10 bar compressor is easy to move, thanks to the presence of a full handle with a rubber grip designed for a firm, comfortable and ergonomic grip.

Energy Efficiency and Safety

This compressor is equipped with an optimised control system to reduce consumption. It also features safety valves and thermal protections for safe operation.

Noise

The sound power level is 96 dB / 76 LPA.

Functional Specifications

ABAC EXP A39B-0 100 CM3 and ABAC EXP A39B-0 100 CT3 are respectively equipped with a single-phase motor and a 3 HP (2.2 kW) motor , both with a maximum air flow rate of 393 L/min at 10 bar max .

With a 90 L tank , the ABAC single-phase piston compressor is equipped with a Schuko socket while the three-phase model has a three-phase socket assembled both with a single output + filter.

Characteristics

• Single-phase compressor
• 90 L horizontal tank
• Power 3 HP - 2.2 kW
• Pressure 10 bar
• Low rpm 1050 rpm
• Easy to carry
