ABAC EXP A29B-0 100 CM2
Oil-Free Compressor 90L

ABAC EXP A29B-0 100 CM2 - Air Compressor 90L Oil Free 10 bar

The Abac EXceed compressor model EXP A29B-0 100 CM2 of the EXpert line with code 4116028216 is a high quality 230V single-phase piston compressor designed specifically for professional use. With an excellent balance between performance and reliability , this 90 L air compressor is designed to be safely connected to compressed air tools thanks to an output filter that protects its operation.

With a 90L tank, the Abac EXtensive EXP A29B-0 piston compressor has a 230V 2 HP motor with an air flow rate of 255 L/min .

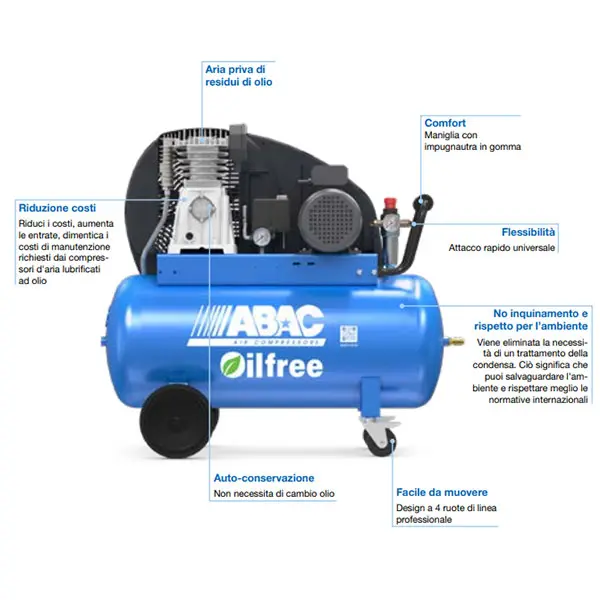

Catalog images

Functional specifications

Stable and Easily Transportable

With a resistant structure resting on 4 wheels , of which 2 at the front are pivoting and with brakes and 2 at the rear of 200 mm, this professional 10 bar compressor is easy to move, thanks to the presence of a complete handle with rubber grip designed for a firm grip , comfortable and ergonomic.

Energy Efficiency and Safety

This compressor is equipped with an optimized control system to reduce consumption, and there are also safety valves and thermal protections for safe operation.

Noise

The sound power level is 96 dB / 75 LPA.

Functional Specifications

Abac EXtensive A29B-0 100 CM2 is equipped with a 2 HP (2.2 kW) single-phase 230V single-stage motor with a 1075 rpm A29B-0 pumping unit . This professional compressor has a maximum air flow rate of 255 L/min and an operating pressure of 10 bar .

With a 90 L tank, the ABAC piston compressor is equipped with a Schuko socket and has a single outlet + filter.

Characteristics

• Single phase compressor
• 90 L horizontal tank
• Power 2 HP - 1.5 kW
• Pressure 10 bar
• Low speed 1075 rpm
• Easy to carry
