ABAC EXP A29B-0 50 CM2/CT2
Oilless Piston Compressor
50 L Tank

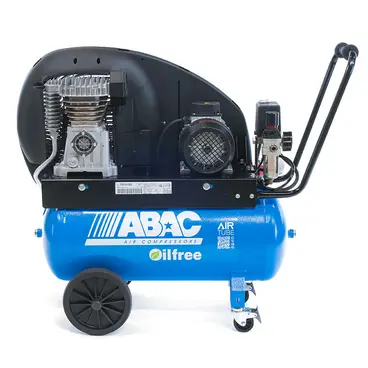

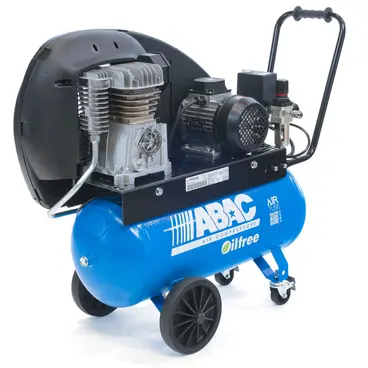

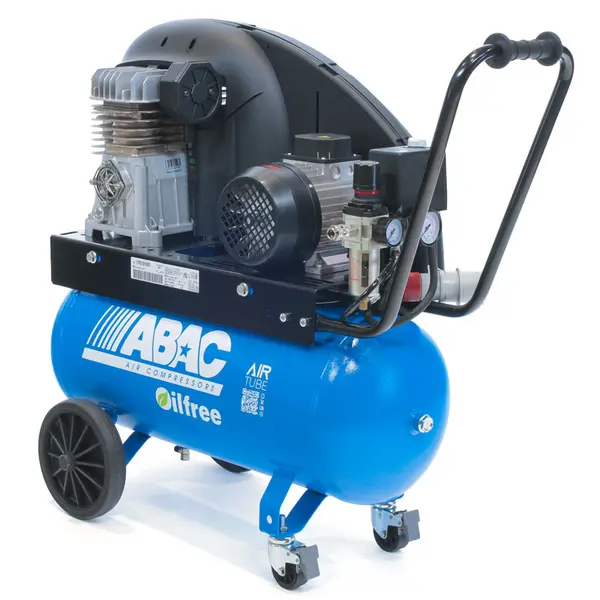

ABAC EXP A29B-0 50 CM2/CT2 - Oil-Free Belt-Driven Piston Compressor

The ABAC EXP A29B-0 50 CM2 and ABAC EXP A29B-0 50 CT2 oil-free piston compressors are belt-driven piston compressors ideal for professional, industrial, and domestic applications. These ABAC compressors stand out for their robust construction and the absence of oil , which guarantees clean air production while reducing maintenance costs and downtime.

Both the Abac EXP A29B-0 50 CM2 and EXP A29B-0 50 CT2 models have a power of 2 HP (1.5 kW) and can reach a maximum pressure of 10 bar (145 psi). Their air delivery capacity is 255 L/min , with a tank capacity of 50 L. Their dimensions are identical at 101 x 42 x 84 cm, for a weight of 40 kg.
These Abac compressors are easily transportable thanks to the two large wheels and two swivel wheels with brakes , which make them easy to move and ensure stable positioning during use.

The single outlet with filter ensures that the air supplied is clean and free from impurities.

Among the main features are:

• Oilless Operation
• 50 L tank and 255 L/min air delivery
• Robust and easily transportable construction
• 1075 rpm

Features of the ABAC Expert OIL FREE range

The ABAC Expert range includes models designed to provide oil-free compressed air , essential in many industrial applications where contamination is intolerable . Thanks to oil-free technology, ABAC Expert compressors ensure clean operation, reducing the need for maintenance and eliminating the risk of compressed air contamination.

The ABAC OIL-FREE piston compressors EXP A29B-0 50 CM2 and EXP A29B-0 50 CT2 belong to the ABAC Expert range which represents the pinnacle of innovation in the field of oil-free piston compressors, guaranteeing clean, high-quality air for your industrial and professional needs.

An integral part of the prestigious ABAC EXCEED line , these compressors combine the reliability and performance typical of ABAC with high-tech components, advanced design solutions and long experience in the sector.

Available models

Selectable from the drop-down menu:

• Abac EXP A29B-0 50 CM2 - cod. 4116028012
• Abac EXP A29B-0 50 CT2 - cod. 4116028013

Functional specifications

ABAC EXP A29B-0 50 CM2 SINGLE-PHASE piston compressor

The Abac EXP A29B-0 50 CM2 is designed to operate on a single-phase current of 230 V and 50 Hz, making it suitable for use in domestic environments and small workshops where the electrical supply is limited to these specifications. This model is equipped with a Schuko socket , making it easily compatible with standard European power outlets.

Abac EXP A29B-0 50 CT2 THREE-PHASE piston compressor for industry

The Abac EXP A29B-0 50 CT2 is configured for a three-phase power supply of 400 V and 50 Hz and is intended for industrial and professional applications where three-phase power is available. This type of power supply allows the compressor to operate more efficiently and handle more intense and prolonged workloads without compromising performance.

Oilless Operation

The absence of oil in the ABAC EXP A29B-0 50 CM2 and EXP A29B-0 50 CT2 compressors makes them ideal for applications where clean air is essential, such as in the food, pharmaceutical and healthcare industries . Furthermore, the reduced need for maintenance due to the absence of oil lubrication contributes to greater reliability and lower operating costs in the long term.

Watch the video

EXCEED line presentation video.

Characteristics

• Belt-driven piston compressors
• Compact and portable
• Transport wheels
• Oil-free operation
• Easier maintenance than traditional models
• Universal air intake
• Handle with rubber grip
• Low rotation speed: 1075 rpm
• Air intake capacity 255 L/min
