ABAC EXT A29B 200 CM3/CT3
200 L Piston Compressor

The Abac EXT A29B 200 CM3/CT3 compressor is an air compressor designed to offer high and long-lasting performance . With a tank capacity of 200 litres , this compressor is ideal for applications requiring continuous and intensive use of compressed air.
The new range of ABAC EXtensive compressors, which includes the Abac EXT A29B 200 CM3/CT3 models, offers versatile, high-quality solutions for a variety of users, both professional and hobbyist. These compressors are robust , reliable, and adaptable to a variety of uses.

The EXtensive range delivers high performance and value, with advanced features for all users – a smart choice for a durable, versatile compressor.
The Extensive range is part of the new Abac EXCEED compressor line. Abac EXCEED compressors are professional belt-driven piston compressors .

Selectable from drop-down menu

Available models:

• ABAC EXT A29B 200 CM3 - cod. 4116028681
• ABAC EXT A29B 200 CT3 - cod. 4116028682

Functional specifications

ABAC EXT A29B 200 CM3 - cod. 4116028681

The Abac EXT A29B 200 CM3 air compressor is a single-phase piston compressor designed to deliver high, long-lasting performance. With a 200-liter tank capacity, this compressor is ideal for applications requiring continuous, intensive use of compressed air.

• 3 HP (2.2 kW) motor: constant and reliable production of compressed air.
• Maximum working pressure: 10 bar (145 psi) , suitable for a wide range of air tools and applications.
• Voltage and frequency: 230V / 1 phase / 50Hz, making it compatible with most domestic and industrial electrical networks.
• 1300 rpm , which ensures efficient and long-lasting operation of the engine
• 320 L/min air flow: to power multiple instruments simultaneously.
• Weighs 102 kg , with a sturdy structure but easily transportable thanks to its wheels.
• 200 L tank , which guarantees a high compressed air reserve.
• Noise level 75 dB , relatively quiet for a compressor of this power.
• 2 fixed wheels + 1 swivel wheel with brake , for greater mobility and stability.
• Connection type: Schuko plug , with single output for compressed air.

ABAC EXT A29B 200 CT3 - cod. 4116028681

The Abac EXT A29B 200 CT3 - code 4116028682 is the three-phase version of the model described above. This three-phase piston compressor is ideal for intensive industrial use.

Main technical features:

• 3 HP (2.2 kW) motor like the CM3 model.
• Maximum working pressure: 10 bar (145 psi), for medium and high pressure applications.
• Voltage and frequency: 400V / 3 phase / 50Hz, ideal for industrial environments with 3-phase power supply.
• 1300 rpm motor speed, which ensures efficiency and operability.
• 320L/min air flow: enough to support multiple operations simultaneously.
• Weighing 90kg , it is slightly lighter than the CM3 model, making it even easier to handle.
• Noise level 75 dB to maintain a comfortable working environment.
• 200 L tank identical to the CM3 model, for a wide availability of compressed air.
• 2 fixed wheels + 1 swivel wheel for optimal maneuverability.
• Connection type: Without plug , with single output for compressed air, adaptable to different electrical configurations.

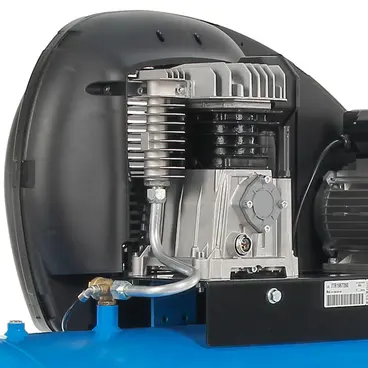

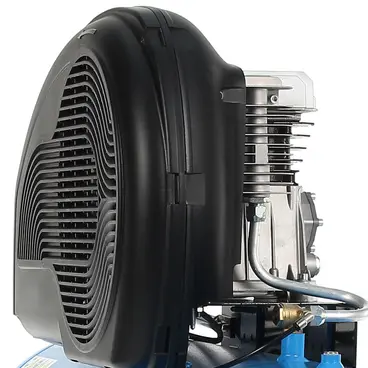

A29B Pumping Group

ABAC pumping units are the result of advanced technology and are unique in terms of reliability, durability, low operating temperatures, and efficiency.
ABAC pumping units use innovative materials with a low friction coefficient and high resistance to use:

• Oversized oil sump
• DOUBLE CYLINDER in cast iron for greater durability over time
• Single-stage
• Die-cast aluminum head for better heat dissipation,
• High strength stainless steel reed valves ,
• Aluminum final cooler with fins

Watch the video

Short video presentation of the Abac Exceed range.

Characteristics

• Professional piston compressor
• Single-phase/three-phase version available
• Low noise
• 1300 rpm engine speed
• Significant air flow
• Professional quality
