ABAC EXP A39B 90 CM3/CT3
90 L Piston Compressor

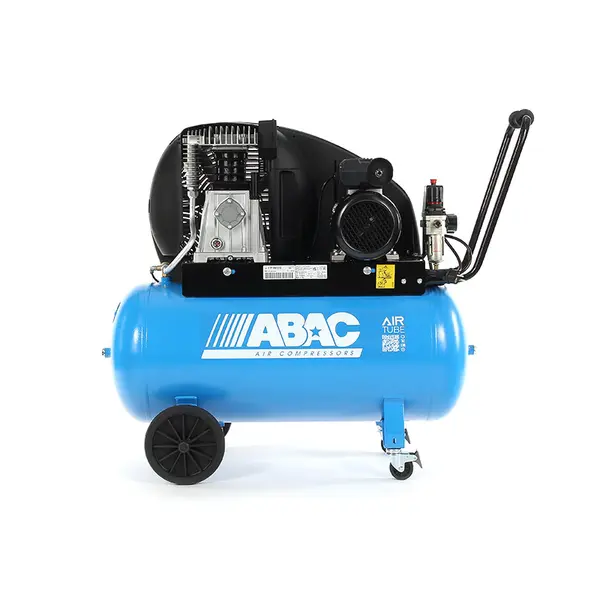

Abac EXP A39B 90 CM3/CT3 - 90 L Piston Compressor

The Abac EXP A39B 90 CM3 piston compressors cod. 116028203 and Abac A39B 90 CT3 cod. 4116028202 represent two advanced and reliable solutions for professional and industrial applications requiring compressed air.

Both Abac EXP A39B 90 CM3/CT3 models belong to the A39B series, featuring single-stage, belt-driven piston compressors , designed to ensure high performance and durability.

The reference line for these Abac 90 L compressors is the EXpert : the Abac EXCEED compressors of the Expert line are characterized by comfort and ease of use . These oil-lubricated piston compressors are designed for prolonged use. The Abac EXpert by EXCEED perfectly combines design with excellent technical functionality: the Abac EXP A39B 90 CM3/CT3 compressors are ideal for use in professional environments where high technical quality of the materials and the pump unit is required to achieve high performance.

The salient features of these Abac piston compressors are:

• 90 L tank
• Single-phase or three-phase connection
• Power 2.2 kW (3 HP)
• A39B Pumping Group
• 1050 rpm

Available models

Selectable from the drop-down menu:

• Abac EXP A39B 90 CM3 - cod. 4116028203
• Abac EXP A39B 90 CT3 - cod . 4116028202

Functional specifications

Abac EXP A39B 90 CM3 code 4116028203 SINGLE PHASE

The EXP A39B 90 CM3 model is equipped with a single-phase motor with a rated power of 2.2 kW (3 HP) . The maximum pressure is 10 bar (145 psi), with 1050 rpm. The tank has a capacity of 90 L. The air flow rate is 393 L/min , while the tank capacity is 90 L.

This Abac compressor is equipped with four wheels , two of which are swivel and have brakes to facilitate movement and ensure stability during use.

The air outlet is single , equipped with a filter to improve the quality of the air supplied, while the electrical system is equipped with a Schuko plug , ensuring compatibility with common European power sockets.

Abac EXP A39B 90 CT3 cod. 4116028202 THREE-PHASE

The Abac EXP A39B 90 CT3 model shares many technical features with the CM3, but differs in its three-phase power supply. It also has a power of 2.2 kW (approximately 3 HP) and operates at a maximum pressure of 10 bar (145 psi), but is powered by a voltage of 400V at a frequency of 50 Hz. The air flow rate remains unchanged at 393 L/min , and the tank capacity is 90 L.

The Abac EXP A39B 90 CT3 maintains the four-wheel configuration , with two pivoting wheels equipped with brakes. The compressor dimensions are identical to those of the CM3, however, the weight is slightly lower, equal to 65 kg.

Like the single-phase Abac EXP A39B 90 CM3 model, the three-phase version has a single outlet with filter to ensure clean air.

The three-phase electrical connection is pre-assembled for ease of use in industrial environments .

Watch the video

Presentation video of the Abac EXCEED range.

Characteristics

• Abac EXP A39B 90 CM3/CT3 piston compressor
• EXCEED EXpert Line
• High technical quality
• 393 L/min
• Ideal for professional/industrial use
• Portable configuration with 2 wheels + 2 swivel wheels with brakes
• Rubber grip
