Telwin Dynamic 520 Start
Battery charger and starter code 829383
MPN: 829383
230V - 12 kW
12V/24V batteries - 20÷1550 Ah
Traditional with starter
€485.00
€397.54 tax excl.

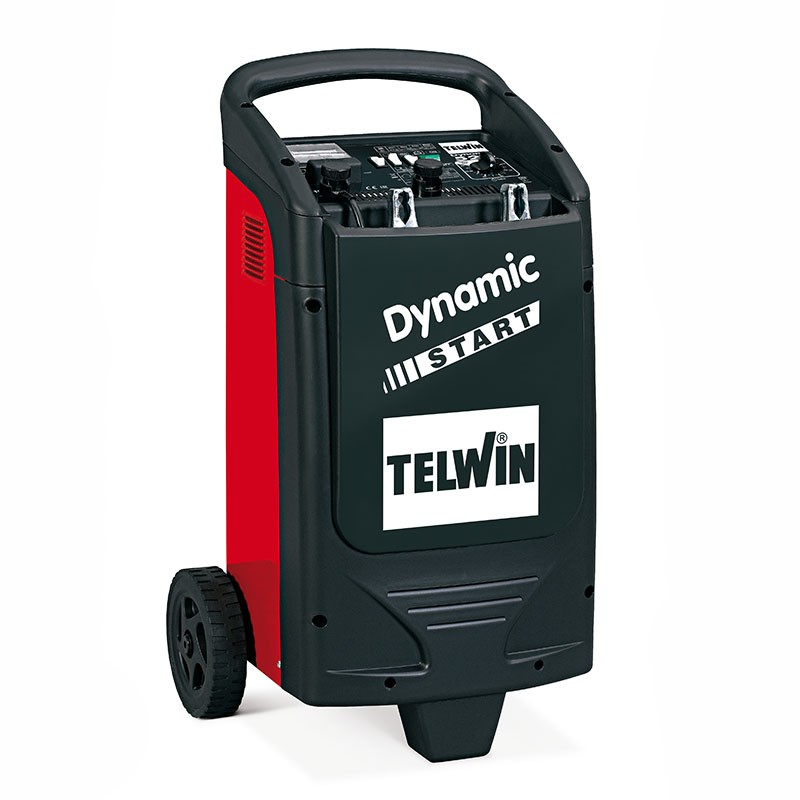

Telwin Dynamic 520 Start - Battery Charger and Starter 12 kW 829383
The Dynamic 520 Start battery charger code 829383 by Telwin is a highly effective and reliable charging and starting solution, characterized by superior power and versatility.
This Telwin single-phase charger is adaptable to different configurations and power conditions, ensuring optimal performance in every situation.
With a charging capacity of 2 kW , Dynamic 520 Start is ideal for managing a wide variety of batteries. Its starting power of 12 kW ensures a quick and efficient start even for the most discharged batteries.
Functional specifications
12/24 V voltage and Quick Start
Dynamic 520 Start has a charging voltage of 12/24 V and a charging current of 90 A , which guarantees a stable flow of energy for efficient charging of the batteries. Complying with EN60335-2-29, the charging current is limited to 60 A , ensuring safety and compliance with international standards.
Starter for Cars, Vans and Light Trucks
The starting current, in line with the EN60335-2-29 regulation, reaches 300 A , with a maximum of 400 A , allowing easy starting even for large and heavy vehicles such as cars, vans and light trucks.
4 adjustment positions
Equipped with 4 adjustment positions , Dynamic 520 Start by Telwin allows the user to customize the device according to their specific needs, guaranteeing flexibility and control during charging and starting operations.
Dynamic 520 Start Compact and transportable
With a footprint of 36.5 x 46 x 75.5 cm and a weight of 20 kg , this compact loader has two rear wheels to ensure easy movement wherever needed.
Characteristics
- Battery charger and starter
- Voltage 12/24 V
- Quick starting of cars, trucks and vans
- Charging type selection - also BOOST
- Protection against overloads
- Polarity reversals
- 4 adjustment positions
- Compact size
Technical data
| Code | 829383 |
| Power Supply | 230V |
| Starting power | 12/24V |
| Effective Charging Current | 90 A |
| Starting Current | 300 A |
| Capacity | 20÷1000 Ah |
| Positions Adjustment | 4 |
| Charging Voltage | 2 kW |
| Charging Current | 60 A |
| Max. Starting Current | 400 A |
| Nominal Capacity | 1000 Ah |
| Dimensions | 36.5 x 46 x 75.5 cm |
| Weight | 20kg |
Technical data
| Code | 829383 |
| Power Supply | 230V |
| Starting power | 12/24V |
| Effective Charging Current | 90 A |
| Starting Current | 300 A |
| Capacity | 20÷1000 Ah |
| Positions Adjustment | 4 |
| Charging Voltage | 2 kW |
| Charging Current | 60 A |
| Max. Starting Current | 400 A |
| Nominal Capacity | 1000 Ah |
| Dimensions | 36.5 x 46 x 75.5 cm |
| Weight | 20kg |
