Helvi DIGICAR 1100 E + SUPPLY
Battery charger with Booster 2.2 kW

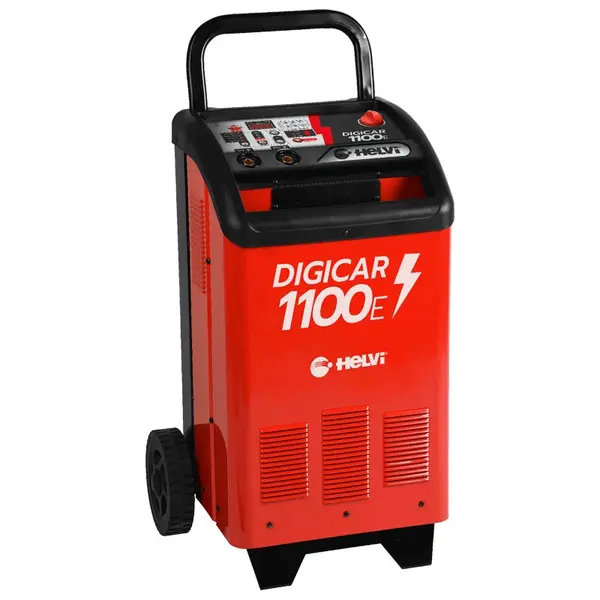

Helvi DIGICAR 1100 E + SUPPLY - 12/24 V battery charger with microprocessor

Helvi Digicar 1100E + SUPPLY cod. 99010051 is a 2200 W intelligent starter battery charger with electronic control (microprocessor) . The advanced control panel of Helvi Digicar 1100E + Supply allows the user to select the type of batteries to charge: AGM , GEL , LIQUID or Universal . Equipped with 4 different charging levels and a timer to set the charging time.

The electronic charge control allows Helvi Digicar to optimize the charge (100%) and does not require the removal of the battery . The charging process is totally controlled and safe and does not require user supervision. Once the charging phase is finished, the device will enter the maintenance phase .

The 12/24 V battery voltage , after correctly connecting the cables, is indicated on the on-board display . During charging it is possible to view the battery voltage and the remaining time. Furthermore, the battery status is always visible via 3 LEDs on the panel (Low, Medium, Charge)

Functional specifications

Battery charger and starter

Helvi Digicar 1100E + SUPPLY cod. 99010051, is a powerful and reliable unit designed to meet the starting and charging needs of automotive and industrial batteries . Equipped with 230 V input, it is suitable for use in industrial, automotive or private use. The power of 2200 W guarantees a reliable charging capacity for 12/24V batteries, making it ideal for vehicles of different sizes and types.

Fast charging

The maximum current of 100A and the charging current of 70A allow you to recharge the batteries efficiently and quickly. Furthermore, the maximum Boost current of 580 Acc and the starting current of 400 A ensure the power necessary to start even the most discharged batteries.

4 charging positions

Helvi Digicar 1100E + SUPPLY cod. 99010051, has 4 charging positions and Boost and Supply functions for quick charging.

LED devices for displaying charging status

Furthermore, the battery status is always visible via 3 LEDs on the panel ( Low, Medium , Charge ). The models in the HELVI DIGICAR range are also equipped with advanced control systems including: polarity reversal , overcurrent , faulty battery indication , safe and protected starting .

Safe starting

Thanks to the advanced CPS electronic system, the DIGICAR range allows safe and secure starting of 12V or 24V vehicles .

Automatic start

Particularly useful for modern vehicles equipped with numerous electronic control units which could be damaged in the event of starting not protected from voltage peaks. AUTOMATIC START: The CPS system does not require remote devices for starting. In fact, the Helvi DIGICAR models deliver the starting current only when the user turns the vehicle key.

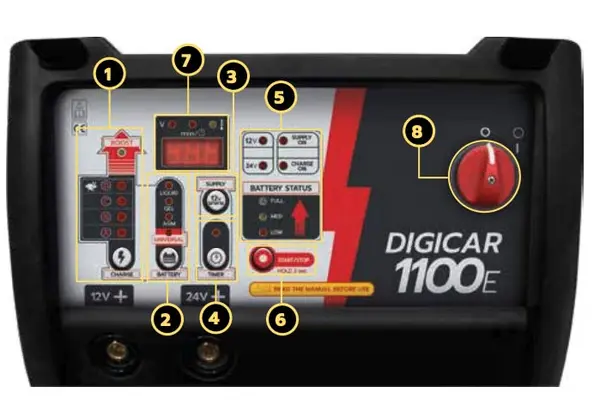

Control Panel

1. Selection of charge levels and/p starting mode
2. Battery type selection
3. Supply function
4. Timer
5. LED display charging status or errors
6. Start or stop button
7. Display for viewing charging voltage level and remaining time. Overtemperature indication LED.
8. ON/OFF switch

Characteristics

• 4 charging positions + booster
• Professional starter with microprocessor
• For AGM, GEL, LIQUID and Universal batteries
• No user supervision required
• Reverse polarity and overcurrent
• CPS system for automatic starting

• CE
• Certification
• EAC
• Single phase
• Electronic Control
• Connector 25 mm
• Automotive
• Charger
• Starter
• Charger Cars
• Charger Vans
• Charger Nautical
• Charger Trucks
• Charger Tractors
• Full CPS
• Maintenance
• Supply
• PB
• Gel
• Ca/Ca
• AGM
• Start and Stop

Areas of use

• Automotive
• Agricultural sector
• Nautical sector
• Construction
• Industrial sector
• Rescue and roadside assistance services

HELVI: Italian excellence for welding and battery chargers

Helvi SpA is an Italian company belonging to the Beta group. Based in Sandrigo, in the province of Vicenza, this Italian manufacturing company specializes in industrial welding machines , plasma cutting machines, professional battery chargers and accessories .
