Helvi Digicar 540E
Intelligent Battery Charger with Booster

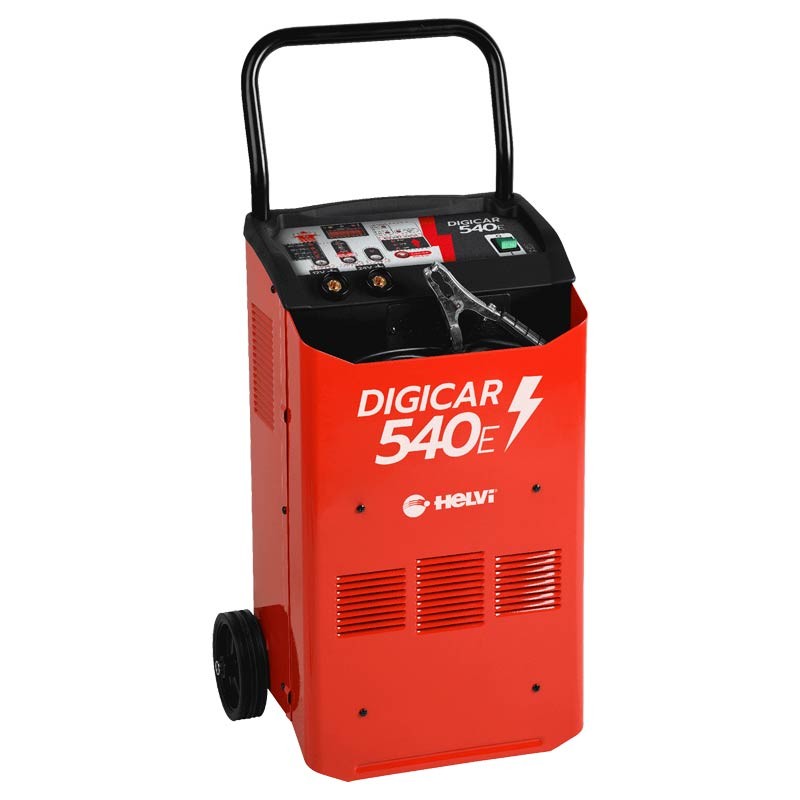

Helvi Digicar 540E - 1320W Intelligent Booster Charger

Helvi Digicar 540E is a 1320 W intelligent battery charger with electronic control (microprocessor) . The advanced control panel of Helvi Digicar 540E allows the user to select the type of battery to be charged: AGM , GEL , LIQUID or Universal . Equipped with 4 different charge levels and a Timer to set the charging time.

The electronic charge control allows Helvi Digicar to optimize the charge (100%) and does not require the removal of the battery . The charging process is completely controlled and safe and does not require user supervision. Once the charging phase is finished, the device will enter the maintenance phase .

Functional specifications

Starter 12/24 V power 1.3 kW

The Helvi DIGICAR 540E starter, code 99010049, is a powerful and reliable unit designed to meet the starting and charging needs of automotive and industrial batteries . Equipped with a 230V input, it is suitable for use in a wide range of environments and power conditions. The 1320 W power ensures reliable charging capacity for 12/24V batteries, making it ideal for vehicles of different sizes and types.

Quick charge

The maximum current of 55A and the charging current of 36A allow you to charge your batteries efficiently and quickly. In addition, the maximum Boost current of 380 Acc and the starting current of 260A ensure the power needed to start even the most discharged batteries.

4 charging positions

Helvi Digicar 540E has 4 charging positions and the Boost function for quick charging.

LED devices for displaying the charging status

The battery status is also always visible via 3 LEDs on the panel ( Low, Medium , Charge ). The models in the HELVI DIGICAR range are also equipped with advanced control systems including: polarity reversal , overcurrent , faulty battery indication , safe and protected start .

Safe start

Thanks to the advanced CPS electronic system, the DIGICAR range allows safe and protected starting of 12V or 24V vehicles .

Automatic start

Particularly useful for modern vehicles equipped with numerous electronic control units that could be damaged in the event of starting without protection from voltage peaks. AUTOMATIC START: the CPS system does not require remote devices for starting. In fact, Helvi DIGICAR models supply starting current only when the user turns the vehicle key.

Characteristics

• 4 charging positions + booster
• Professional starter with microprocessor
• For AGM, GEL, LIQUID and Universal batteries
• No user supervision required
• Reverse polarity and overcurrent
• CPS system for automatic start

• THERE IS
• Certification
• EAC
• Single phase
• Electronic Control
• Connector 25 mm
• Automotive
• Charger
• Starter
• Charger Cars
• Charger Vans
• Charger Nautical
• Full CPS
• Maintenance
• PB
• Gel
• Ca/Ca
• AGM
• Start and Stop

Areas of use

• Automotive
• Agricultural sector
• Nautical Sector
• Home Use
• Industrial Sector
• Roadside assistance and rescue services

HELVI: Italian excellence for welding and battery chargers

Helvi SpA is an Italian company belonging to the Beta group. Based in Sandrigo, in the province of Vicenza, this Italian manufacturing company specializes in industrial welding machines , plasma cutting machines, professional battery chargers and accessories .
