Telwin T-Charge 26 Evo
Battery Charger Maintainer Tester

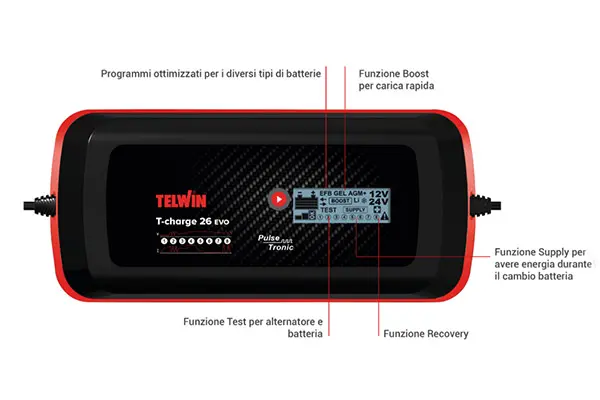

Telwin T-Charge 26 Evo 12 V / 24 V - Pulse Tronic battery charger

The Telwin T-Charge 26 Evo 12 V / 24 V battery charger is also a charge maintainer and a high quality electronic tester , with 230 V single-phase voltage and 232 W power .

Power supply of batteries of the type WET , GEL , AGM , MF , PbCa , EFB , Li at 12V / 24V , this Telwin power bank is equipped with an LCD screen .

Pulse Tronic Portable Battery

Among the programs of this Telwin professional loader there is the maintenance in Pulse Tronic .

Pulse Tronic technology consists of a precise and timely diagnosis , instant by instant, of the battery conditions with specific interventions to improve activity. The pulses generated by this technology, characteristic of the T-Charge 26 Evo power supply, allow intelligent monitoring of the battery, using particular waveforms that prevent overheating or degradation of the battery's own chemical structure. An exemplary example is the maintenance of the functionality of a car battery during periods of non-use.

Pulse Tronic: the technology at the service of T-Charge 26 EVO

• In addition to the Check function (monitoring), Pulse Tronic also works to detect and recover sulphated batteries (Desulfation) : the pulses mentioned above, in fact, make it possible to remove the sulphates from the lead plates. This restores the initial battery capacity.
• With Main Charge (maximum charging power), the T-Charge 26 Evo 12 V / 24 V power bank charges up to 80% of the battery capacity with maximum current for fast battery charging .
• The maintenance of the charge that occurs at constant voltage and the charge and maintenance of the batteries even when the temperatures drop below zero .

In conclusion, the Pulse Tronic technology pays particular attention to the safety of the battery that it implements: Pulse Tronic for Telwin T-Charge 26 EVO 12 V / 24 V is Telwin's answer to the intelligent charging / maintenance of traction batteries used in Automotive.

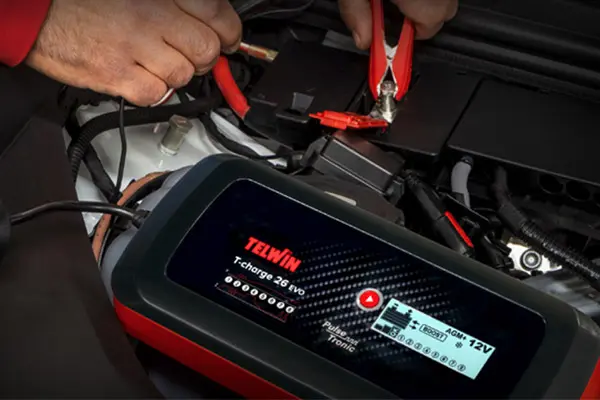

Use T-Charge 26 EVO to charge car battery , keep motorcycle charge , as a truck charger and more!

Watch the video

Technical specifications

This battery, maintainer and electronic tester, cod. 807595 , has a voltage of 230 V , voltage 12/24 V , absorbed power of 232 W.

The effective charging current of T-Charge 26 Evo is 16/8 A , with a nominal reference capacity of 250 Ah .

The battery adjustment positions are automatic.

The Telwin power bank that we are describing has an IP44 protection .

The dimensions of the product are 27 x 12 x 6.7 cm , for a weight of 1.6 kg .

Standard Equipment

• Cable with pliers
• Cable with eyelets
