Telwin T-Charge 20 12/24V
Electronic Battery Charger
Charge Maintainer
MPN: 807594
EAN: 8004897984551
230V - 115 W
Batterie 12V/24V - 5÷180 Ah
Elettronico
€155.00
- 15%
€131.75
€107.99 tax excl.

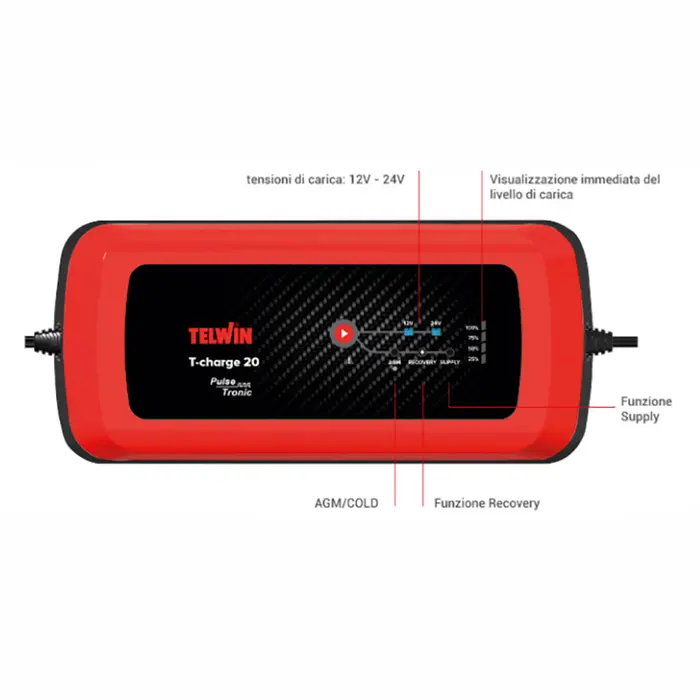

TELWIN T-CHARGE Battery Charger 20- 12/24V - 807594
Intelligent battery charger , with electronic control of the charging current, automatic interruption and restart for 12/24V Pb-Ca, WET, GEL, AGM, MF, EFB batteries .
PulseTronic technology for all battery types, through intelligent monitoring and the use of specific waveforms (pulses) , manages to maintain optimal charge without generating overheating or degrading changes to the battery's chemical structure, safeguarding the vehicles' on-board electronic components, even for extended periods.
Pulse Tronic charging and maintenance programs dedicated to the selected battery technology which, through a precise instant-by-instant diagnosis of the battery conditions together with specific interventions aimed at restoring its best operation .
Watch the video
Characteristics
- Smart technology for better results
- Boost function for fast charging
- Pulse process for the recovery of sulfated batteries
- Alternator circuit testing, starting capability check, and battery charge status measurement
- Dedicated programs based on battery technology
- Maximum performance even at low temperatures
- Continuous and reliable power supply even during battery changes
Charging phases of Telwin T-Charge 20 Boost
- CHECK checks the battery condition and verifies that the voltage set on the display is correct
- Desulfation detection and recovery of sulfated batteries; pulses allow sulfates to be removed from the lead plates, restoring the initial capacity.
- ANALYSE battery health analysis to check whether the battery is faulty or not
- MAIN CHARGE charges at maximum current until reaching 80% of the battery capacity
- FINE CHARGE charges with decreasing current up to 100% of the battery capacity
- VERIFY verification cycle to check if the battery holds a charge
- FLOAT constant voltage charge maintenance
- PULSE optimal pulse charge recovery
Standard Equipment
- Cable with terminals for connection to the battery
- Cable with eyelets
- Manual in Italian
Technical Data
| Code | 807594 |
| Power Supply | 230V |
| Power | 115 W |
| Nominal Battery Voltage | 12 / 24V |
| Average Charging Current | 8 / 4 A |
| Effective Charging Current | 8 / 4 A |
| Battery Type Rechargeable | WET, GEL, AGM, MF, PbCa, EFB, Lithium |
| Rechargeable Battery Capacity | 5÷180 Ah |
| Dimensions | 30 x 9.5 x 5.5 cm |
| Weight | 1.35 kg |
INDORS is an Authorized Service and Repair Center
Our workshop is able to guarantee efficient and professional repairs: speed of intervention, competence and availability are our strengths.
By purchasing from Indors you will also have purchased peace of mind: our Assistance and Repairs Service guarantees quick and timely solutions for any problem thanks to the safe availability of spare parts, your equipment will always be efficient and available within a few days at a low cost. More information
EU Warranty
All products sold by Indors are covered by the European legal warranty for lack of conformity pursuant to Articles 128 et seq. of Legislative Decree No. 206/2005. The warranty is valid starting from the date of purchase. Professional users are entitled to a 12-month warranty.
More information
View Full Guide
Reviews about this product
1★
2★
3★
4★
5★
10/10
Based on 1 review
-
Enrico
Published Jan 15, 2017 at 04:20 pm (Order date: Jan 08, 2017)Really good instrument, I had read in the reviews before purchase that the instructions were a little lacking, but I didn't find that at all. I had a great time with it...it desulfated a battery that had been idle for a very long time and recharged it very well, of course unfortunately miracles still can't work. The item arrived even before time...what can I say very valid tool and very serious company and dealer. (Translated review)
