Accu Italia ES06220T
6V 220Ah Lead-Acid Battery for Electric Vehicles

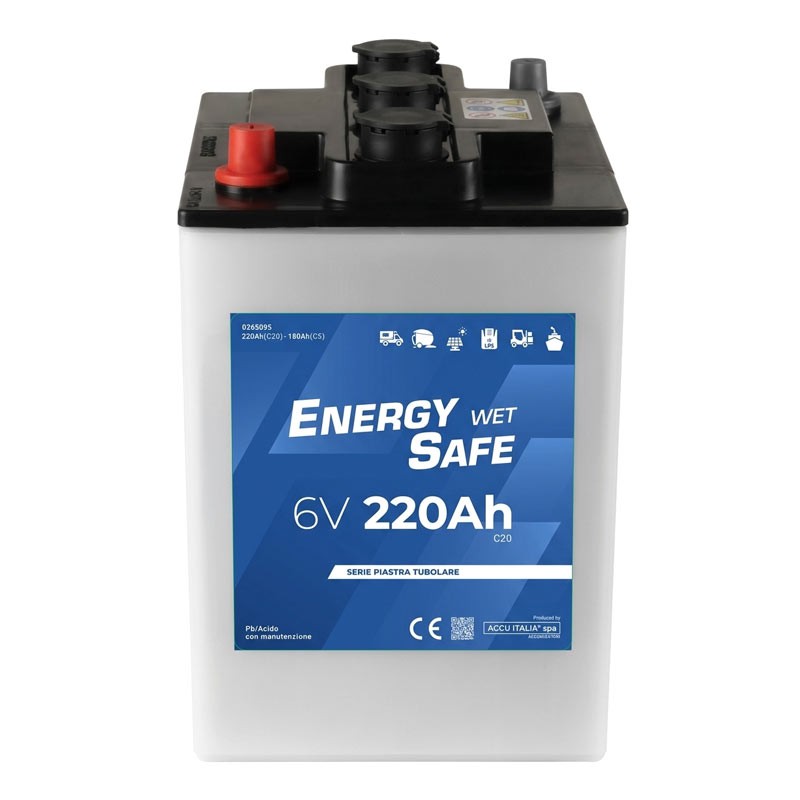

Accu Italia ES06220T - 6V 220Ah Lead-Acid Battery for Electric Vehicles

Accu Italia ES06220T is a liquid electrolyte lead-acid battery from the Energy Safe Wet series, designed for professional and industrial applications with high energy absorption. Ideal for electric vehicles, operating machines and internal handling equipment, it guarantees operational continuity in intensive work cycles thanks to a tubular plate structure and a nominal capacity of up to 220 Ah (C20).

With a nominal voltage of 6V , up to 1200 life cycles , and a reinforced 31.5 kg structure, it represents a highly reliable solution for light and medium-duty traction systems. Compatibility with 50 Hz and HF chargers expands its integration into existing systems, optimizing charging processes and company energy management.

FUNCTIONAL SPECIFICATIONS

High efficiency tubular plate

The tubular plate technology of the 6V Accu Italia ES06220T lead-acid battery ensures greater resistance to deep cycles and better electrochemical stability than traditional flat plates. This configuration is designed for industrial traction applications requiring repeated cycling and controlled discharge.

Energy capacity 180Ah C5 / 220Ah C20

The 180 Ah C5 and 220 Ah C20 capacities ensure consistent energy delivery even under prolonged use. The optimized discharge profile makes this Energy Safe Wet battery suitable for continuous work shifts, reducing voltage drops and improving operational stability.

Lifespan up to 1200 cycles

With a lifespan of up to 1200 cycles , this lead-acid battery is designed to reduce replacement frequency and lower total cost of ownership. Its high resistance to deep cycles allows for intensive use in logistics and manufacturing environments.

Robust structure and compact size

The 24.4 x 19 x 28.1 cm dimensions and 31.5 kg weight ensure an optimal balance between compactness and internal active mass. The reinforced construction is designed for harsh industrial environments, with high mechanical resistance and structural stability.

Compatibility with 50 Hz and HF chargers

The Energy Safe Wet 6V battery is compatible with traditional 50 Hz charging systems and high-frequency (HF) chargers. This flexibility allows for integration into existing infrastructures without the need for complex technical adjustments, improving charging cycle efficiency and overall energy management.

Why choose a lead-acid battery

• Proven reliability in industrial applications and electric vehicles
• Mechanical robustness to withstand vibrations and harsh working conditions
• Long operating life thanks to tubular plate technology
• Excellent charge retention , even during periods of inactivity
• High peak capacity and consistent performance in charge and discharge cycles
• Low internal resistance for stable voltage and efficient performance
• Complete recyclability of materials, with reduced environmental impact
• Competitive total cost of ownership , thanks to long life and simple maintenance

Areas of Use

• Caravans and Campers
• Floor cleaning machines
• Solar systems
• UPS (Uninterruptible Power Supply)
• Electric vehicles
• Nautical

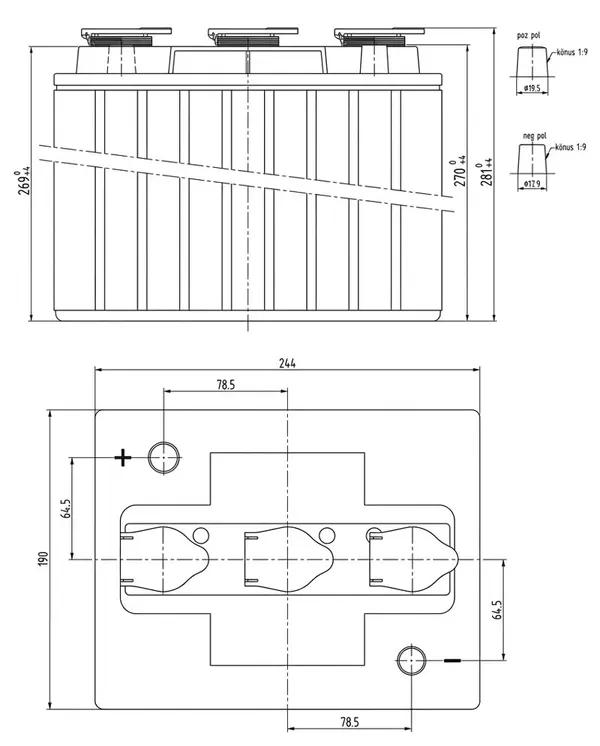

Dimensions and Base

Characteristics

• Lead-acid battery
• Nominal voltage 6V
• Capacity 180 Ah (C5) / 220 Ah (C20)
• 1200 charge cycles for intensive use
• Tubular plate
• Dimensions 24.4 x 19 x 28.1 cm
• Weight 31.5 kg

Standard Equipment

• Pole
