Sonnenschein GF12050V
12V 55Ah Gel Battery for Electric Vehicles and Equipment
12V - 50÷55 Ah
Number of cycles 700
Full Gel Lead

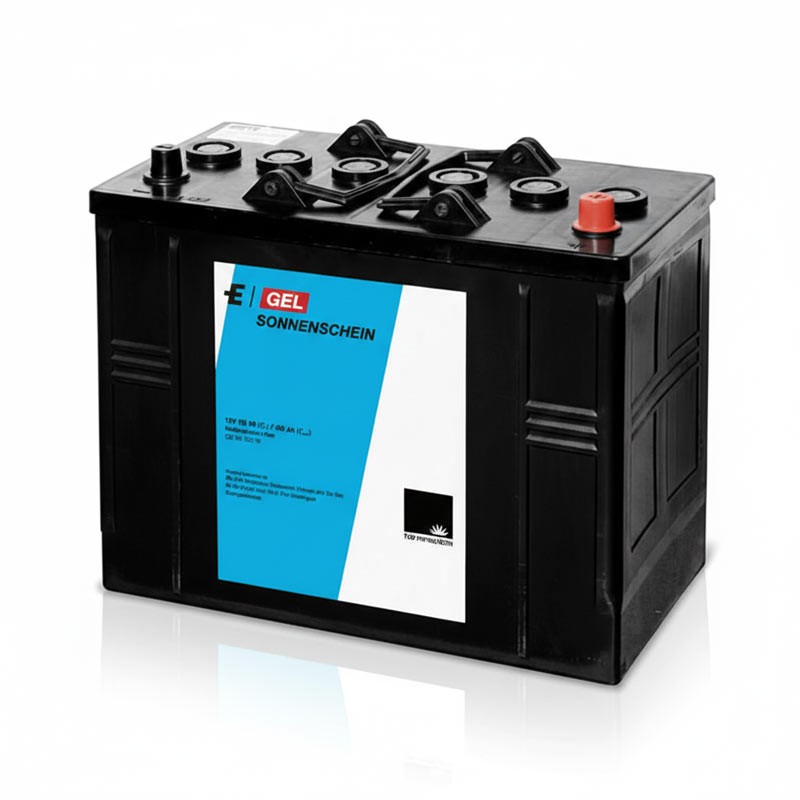

Sonnenschein GF12050V - 12V 55Ah Gel Battery for Electric Vehicles and Equipment
The Sonnenschein GF12050V is a professional 12V full gel battery designed for continuous absorption stationary systems, uninterruptible power systems, security infrastructures and 24/7 industrial applications. With a nominal capacity of 50 Ah (C5) and 55 Ah (C20) , it ensures optimised discharge management in constant load configurations, maintaining voltage stability even in the presence of repeated deep cycles.
The immobilized thixotropic gel electrolyte and flat, kneaded grid plates ensure mechanical strength, resistance to vibration and stress, and a long operating life. The 27.8 x 17.5 x 19 cm dimensions, 19 kg weight, and A-Terminal connections allow for reliable integration into professional systems requiring safety, power continuity, and zero maintenance.

FUNCTIONAL SPECIFICATIONS
12V sealed full gel battery for industrial applications
The 12V Sonnenschein GF12050V battery uses high-purity gel-filled sulfuric acid , a technical solution that prevents leaks and allows installation in complex or unmanned technical environments. Full-gel technology improves resistance to deep discharge cycles and reduces electrolyte stratification, increasing stability over time.
Capacity 50Ah C5 / 55Ah C20 for operational continuity
With a certified capacity of 50 Ah (C5) and 55 Ah (C20) , this professional 12V battery for backup systems is suitable for systems with constant energy demand and controlled absorption. The optimized discharge curve allows for stable voltage maintenance even during prolonged use.
Internal structure with lead-calcium-tin alloy
The grid, made of a lead-calcium/tin alloy, increases corrosion resistance and improves internal electrical conductivity. The high-purity lead active material , integrated with mixed-plate technology, helps ensure greater energy efficiency and extended cyclic life.
Highly reliable microporous separator
The duroplastic-microporous separator ensures uniform insulation between the plates and correct distribution of the gelled electrolyte, reducing the risk of internal short circuits. This technical configuration increases the reliability of the full gel battery for industrial stationary applications .
Compact size with A-Terminal connections
The 27.8 x 17.5 x 19 cm dimensions and 19 kg weight guarantee mechanical stability in fixed installations and professional storage systems. A- Terminals ensure solid connections and electrical continuity on high-performance wiring, compliant with technical and industrial standards.
Why choose a Gel battery?
- Reliable recovery even after deep discharges , without the need for immediate recharging
- Designed for daily use with repeated cycles
- Stable performance over long duration discharges
- Good operation in high temperature environments
- Immobilized electrolyte that eliminates stratification
- Low self-discharge and less maintenance required
- Positive plate protection for longer cycle life
- High charge acceptance due to low internal resistance
- High resistance to water loss with proper refill management
- Highly stable polymer separator , resistant to mechanical stress and short circuits

Areas of Use
- Caravans and Campers
- Floor cleaning machines
- Solar systems
- UPS (Uninterruptible Power Supply)
- Electric vehicles
- Nautical

Characteristics
- Full Gel lead-acid battery
- Nominal voltage 12V
- Capacity 50 Ah (C5) / 55 Ah (C20)
- 700 charge cycles for intensive use
- Poli A-Terminal
- Dimensions 27.8 x 17.5 x 19 cm
- Operating temperature from -20°C to +50°C
- High purity materials
- Duroplastic-microporous separators
Standard Equipment
- A-Terminal

Optional Equipment
- Pair of M6 conical pole adapters - code 90000012

Technical Data
| Model | GF12050V |
| Typology | Full Gel lead-acid battery |
| Nominal Voltage | 12V |
| Capacity | 50 Ah in C5 / 55 Ah in C20 |
| Number of Cycles | 700 |
| Pioli type | A-Terminal |
| Operating Temperature | -20 ÷ +50 °C |
| Dimensions | 27.8 x 17.5 x 19 cm |
| Weight | 19 kg |
