Haze HZY12-110EV
12V 119Ah Gel Battery for Professional Electric Machines
MPN: 7715120110
12V - 94÷119 Ah
Number of cycles 700
Full Gel Lead
€294.00
€240.98 tax excl.
Warranty 5
years
Shipped on Pallet

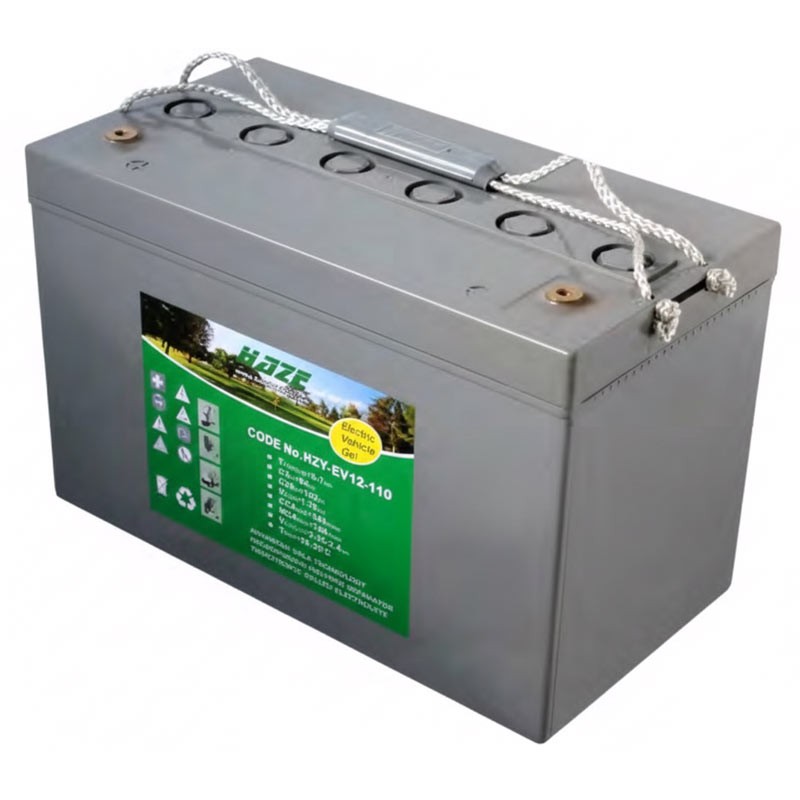

Haze HZY12-110EV - 12V 119Ah Gel Battery for Professional Electric Machines
The Haze HZY12-110EV battery is a professional lead-acid battery with Full Gel technology, designed for industrial applications and electric vehicles that require high performance and continuous reliability. It supports up to 700 charge cycles , ensuring stable and constant operation even in the most intensive uses. The compact dimensions of 32.9 x 17.3 x 20.9 cm allow for simple and versatile installation, ideal for spaces with limited overall dimensions. The battery is designed to operate safely in a temperature range of -20°C to +50°C , ensuring operational continuity even in harsh environments. Completely Made in Italy , it represents a choice of quality and reliability for professionals and operators in the sector.
FUNCTIONAL SPECIFICATIONS
Safe and High-Performance Full Gel Technology
The HZY12-110EV features advanced Full Gel technology, combining immobilized electrolyte, Amersil microporous separators, and Degussa amorphous silica gelling agent. This configuration eliminates any risk of leaks and ensures a higher level of safety than traditional lead-acid batteries. The flat plates with a kneaded grid and the use of ultra-pure lead ensure reliable performance even during intensive duty cycles.
Capacity and Duration of Charging Cycles
Designed for continuous industrial use, the battery offers a capacity of 94 Ah (C5) and 119 Ah (C20) , providing stable and reliable energy over time. The internal structure is optimized to withstand up to 700 charge cycles , maintaining uniform voltage and constant performance throughout the product's entire operating life.
Compact Size and Quick Connections
Measuring 12.9 x 6.8 x 8.2 in (32.9 x 17.3 x 20.9 cm) and weighing 70 lb (32.2 kg ), the HZY12-110EV can be easily installed even in small spaces. The left-hand positive polarity and F-M8 pins allow for quick and safe connections, compatible with major industrial electrical systems, simplifying assembly.
Charging Parameters and Operational Safety
The battery supports precise charging parameters: maintenance between 2.27 and 2.3 VPC , cyclic charging between 2.35 and 2.4 VPC and a maximum voltage of 2.4 VPC , with ripple less than 3.5% . The level of safety is further guaranteed by an EPDM vent valve and epoxy resin -sealed terminals, which prevent electrolyte leaks and ensure reliability even in the most demanding uses.
Italian Construction Quality and Production
Entirely manufactured in Italy , the HZY12-110EV features a durable ABS case and grids made of lead-calcium-tin alloy . Careful selection of materials and high production standards ensure structural solidity, chemical stability, and long-lasting performance, making this battery a professional and reliable solution for industrial applications.
Why choose a Gel battery?
- Reliable recovery even after deep discharges , without the need for immediate recharging
- Designed for daily use with repeated cycles
- Stable performance over long duration discharges
- Good operation in high temperature environments
- Immobilized electrolyte that eliminates stratification
- Low self-discharge and less maintenance required
- Positive plate protection for longer cycle life
- High charge acceptance due to low internal resistance
- High resistance to water loss with proper refill management
- Highly stable polymer separator , resistant to mechanical stress and short circuits
Areas of Use
- Caravans and Campers
- Floor cleaning machines
- Solar systems
- UPS (Uninterruptible Power Supply)
- Electric vehicles
- Nautical
Dimensions
Characteristics
- Full Gel lead-acid battery
- Nominal voltage 12V
- Capacity 94 Ah (C5) / 119 Ah (C20)
- 700 charge cycles for intensive use
- F-M8 poles with positive polarity on the left
- Dimensions 32.9 x 17.3 x 20.9 cm
- Operating temperature from -20°C to +50°C
- High purity materials
- Highly stable polymer separators
- Made in Italy
Standard Equipment
- FM8 Terminal
Optional Equipment
- Pair of M8 conical pole adapters - code 90000013
Technical Data
| Model | HZY12-110EV |
| Typology | Full Gel lead-acid battery |
| Nominal Voltage | 12V |
| Capacity | 94 Ah in C5 / 119 Ah in C20 |
| Number of Cycles | 700 |
| Pioli type | F-M8 |
| Polarity | Positive on the left |
| Operating Temperature | -20 ÷ +50 °C |
| Dimensions | 32.9 x 17.3 x 20.9 cm |
| Weight | 32.2 kg |
