Haze HZY12-65EV
12V 75Ah Gel Battery for Electric and Professional Vehicles
12V - 61.1÷75 Ah
Number of cycles 700
Full Gel Lead
Haze HZY12-65EV - 12V 75Ah Gel Battery for Electric and Professional Vehicles
The Haze HZY12-65EV battery is a professional lead-acid solution with Full Gel technology, designed for industrial applications and electric vehicles that require high performance and reliability over time. Able to withstand up to 700 charging cycles , it ensures stable and continuous performance even in the most intensive uses. The compact dimensions of 27.2 x 16.5 x 18.8 cm allow for practical and flexible installation, ideal for spaces with limited overall dimensions. The structure is developed to operate safely in a temperature range of -20°C to +50°C , ensuring operational continuity even in challenging environmental conditions. Entirely Made in Italy , this battery represents a reliable and quality choice for professionals and operators in the sector.

FUNCTIONAL SPECIFICATIONS
Advanced and Reliable Full Gel Technology
The Haze HZY12-65EV uses the latest-generation Full Gel technology, based on immobilized electrolyte, Amersil microporous separators, and Degussa amorphous silica gelling agent. This construction eliminates the risk of leaks and guarantees a higher level of safety than traditional lead-acid batteries. The flat plates with a kneaded grid, combined with the use of ultra-pure lead, allow for consistent performance even during intensive use cycles.

Energy Capacity and Charging Cycles
Designed for continuous industrial applications, the battery provides a capacity of 61.1 Ah (C5) and 75 Ah (C20) , offering stable and reliable energy delivery over time. The internal structure is optimized to withstand up to 700 charge cycles , maintaining uniform voltage and consistent performance throughout its entire operating life.
Compact Sizes and Industrial Connections
Measuring 27.2 x 16.5 x 18.8 cm and weighing 21.5 kg , the HZY12-65EV can be easily installed even in small spaces. The right-side positive polarity and F-M6 pin configuration allows for quick and safe connections, ensuring compatibility with major industrial electrical systems and simplifying installation.

Charging Parameters and Operational Safety
The battery supports precise charging parameters: float between 2.27 and 2.3 VPC , cyclic charging between 2.35 and 2.4 VPC and a maximum voltage of 2.4 VPC , with ripple less than 3.5% . Safety is further enhanced by an EPDM vent valve and epoxy- sealed terminals, which prevent any electrolyte leakage and ensure reliability even in the most demanding applications.
Construction Quality and Made in Italy
Entirely manufactured in Italy , the HZY12-65EV features a high-strength ABS container and grids made of lead-calcium-tin alloy . The high production standards and careful selection of materials guarantee structural solidity, chemical stability, and long-lasting performance, making this battery a professional and reliable solution for industrial applications.
Why choose a Gel battery?
- Reliable recovery even after deep discharges , without the need for immediate recharging
- Designed for daily use with repeated cycles
- Stable performance over long duration discharges
- Good operation in high temperature environments
- Immobilized electrolyte that eliminates stratification
- Low self-discharge and less maintenance required
- Positive plate protection for longer cycle life
- High charge acceptance due to low internal resistance
- High resistance to water loss with proper refill management
- Highly stable polymer separator , resistant to mechanical stress and short circuits

Areas of Use
- Caravans and Campers

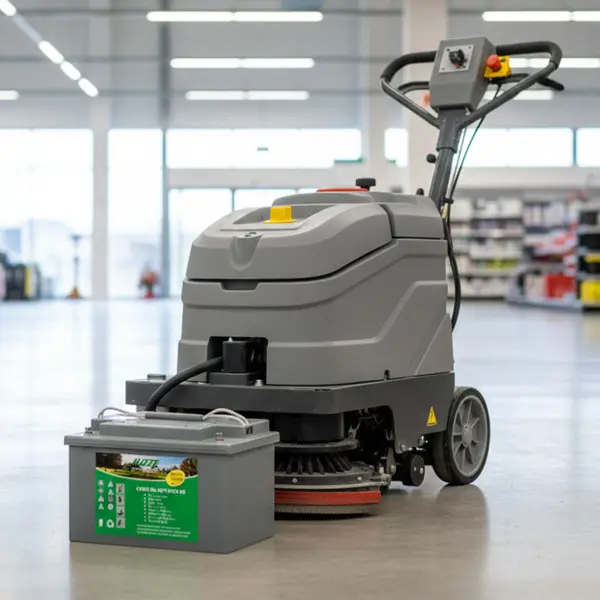

- Floor cleaning machines
- Solar systems
- UPS (Uninterruptible Power Supply)
- Electric vehicles
- Nautical

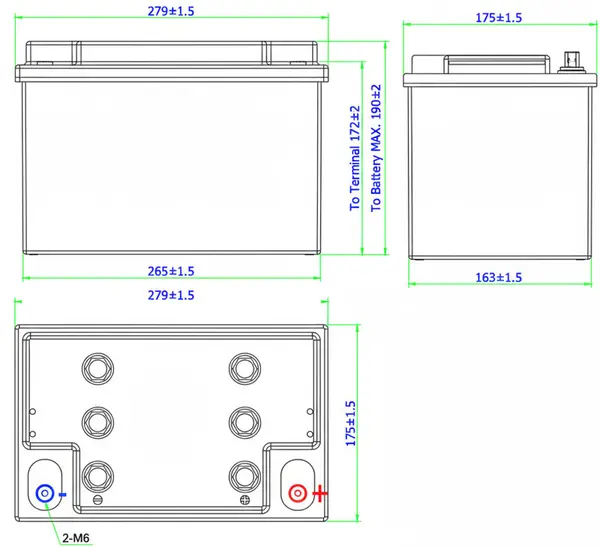

Dimensions

Characteristics
- Full Gel lead-acid battery
- Nominal voltage 12V
- Capacity 61.1 Ah (C5) / 75 Ah (C20)
- 700 charge cycles for intensive use
- F-M6 poles with positive polarity on the right
- Dimensions 27.2 x 16.5 x 18.8 cm
- Operating temperature from -20°C to +50°C
- High purity materials
- Highly stable polymer separators
- Made in Italy




Standard Equipment
- FM6 Terminal

Optional Equipment
- Pair of M6 conical pole adapters - code 90000012

Technical Data
| Model | HZY12-65EV |
| Typology | Full Gel lead-acid battery |
| Nominal Voltage | 12V |
| Capacity | 61.1 Ah in C5 / 75 Ah in C20 |
| Number of Cycles | 700 |
| Pioli type | F-M6 |
| Polarity | Positive on the right |
| Operating Temperature | -20 ÷ +50 °C |
| Dimensions | 27.2 x 16.5 x 18.8 cm |
| Weight | 21.5 kg |
