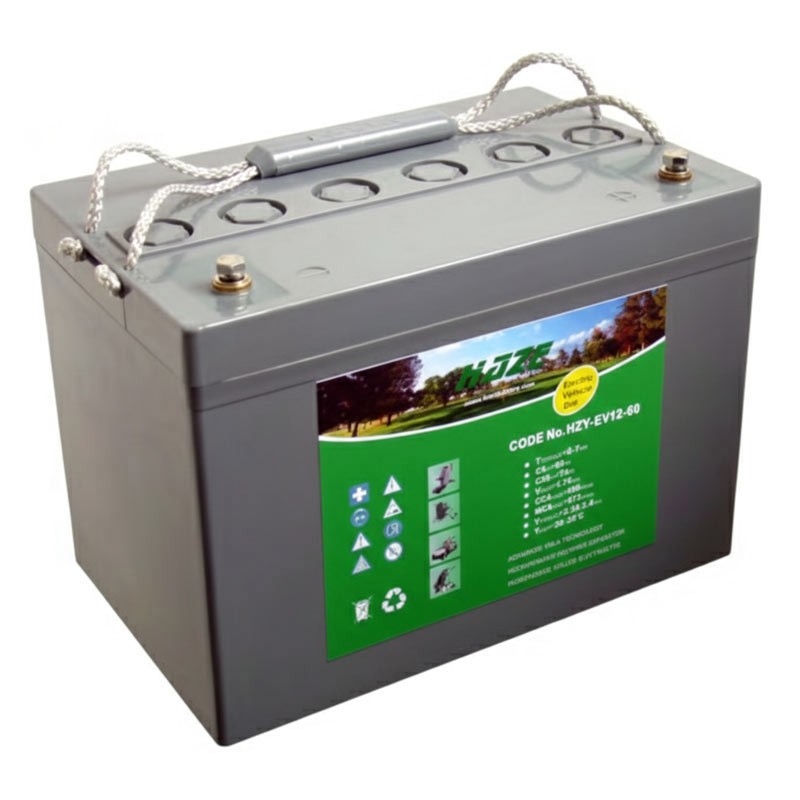

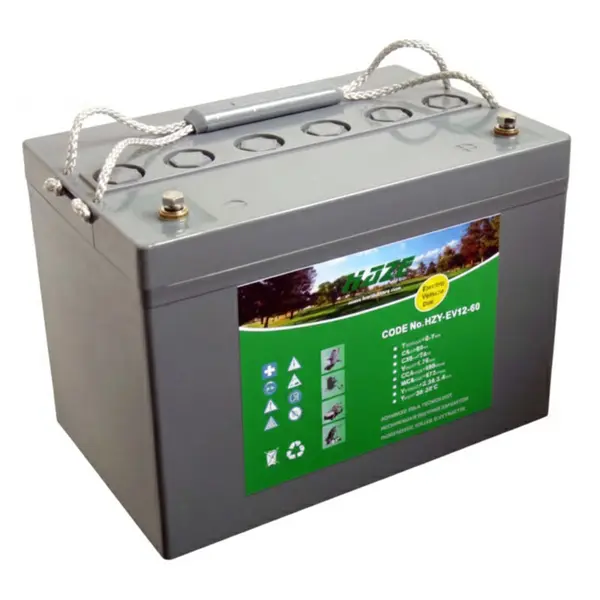

Haze HZY12-60EV
12V 74.8Ah Gel Battery for Electrical Machinery and Equipment
12V - 55÷74.8 Ah
Number of cycles 700
Full Gel Lead
Haze HZY12-60EV - 12V 74.8Ah Gel Battery for Electrical Machinery and Equipment
Haze HZY12-60EV is a professional lead-acid battery with Full Gel technology, developed for industrial applications and electric vehicles that require high performance and continuous reliability. Designed to withstand up to 700 charge cycles , it guarantees stable and constant operation even under intensive use conditions. The compact dimensions of 26 x 16.8 x 18 cm allow for simple and versatile installation, ideal for housings with limited space. The structure is designed to operate in complete safety in a temperature range between -20°C and +50°C , ensuring operational continuity even in harsh environments. Made entirely in Italy , this battery stands out for its construction quality and reliability, making it an ideal solution for professionals and operators in the sector.

FUNCTIONAL SPECIFICATIONS
Highly Safe Full Gel Technology
The HZY12-60EV is made with advanced Full Gel technology, which includes immobilized electrolyte, Amersil microporous separators, and a Degussa amorphous silica gelling agent. This solution guarantees total leakage absence and a higher level of safety than conventional lead-acid batteries. The flat plates with a kneaded grid and the use of ultra-pure lead ensure reliable performance even under intensive use cycles.

Capacity and Resistance to Charge Cycles
Designed for continuous industrial applications, the battery offers a capacity of 55 Ah (C5) and 74.8 Ah (C20) , ensuring constant energy delivery over time. The internal configuration is designed to support up to 700 charging cycles , maintaining stable voltage and uniform performance throughout the product's operating life.
Functional Dimensions and Industrial Connections
Measuring 26 x 16.8 x 18 cm and weighing 21.5 kg , the HZY12-60EV integrates easily even in limited spaces. The left-hand positive polarity and F-M6 pins allow for quick and safe connections, compatible with major industrial electrical systems, reducing installation time and simplifying integration.

Charging Voltages and Integrated Safety
The battery is compatible with controlled charging parameters: maintenance between 2.27 and 2.3 VPC , cyclic charging between 2.35 and 2.4 VPC and maximum voltage of 2.4 VPC , with ripple less than 3.5% . Operational safety is guaranteed by an EPDM vent valve and epoxy resin -sealed terminals, which prevent electrolyte leaks and increase reliability even in the most demanding applications.
Italian Construction Quality and Production
Manufactured entirely in Italy , the HZY12-60EV features a high-strength ABS container and grids made of lead-calcium-tin alloy . The high production standards and careful selection of materials ensure structural solidity, chemical stability, and long-lasting performance, making this battery a professional solution for industrial applications.
Why choose a Gel battery?
- Reliable recovery even after deep discharges , without the need for immediate recharging
- Designed for daily use with repeated cycles
- Stable performance over long duration discharges
- Good operation in high temperature environments
- Immobilized electrolyte that eliminates stratification
- Low self-discharge and less maintenance required
- Positive plate protection for longer cycle life
- High charge acceptance due to low internal resistance
- High resistance to water loss with proper refill management
- Highly stable polymer separator , resistant to mechanical stress and short circuits

Areas of Use
- Caravans and Campers

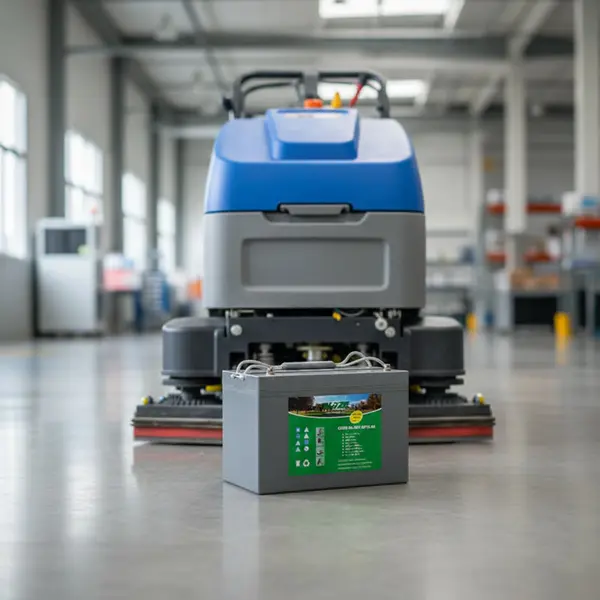

- Floor cleaning machines
- Solar systems
- UPS (Uninterruptible Power Supply)
- Electric vehicles
- Nautical

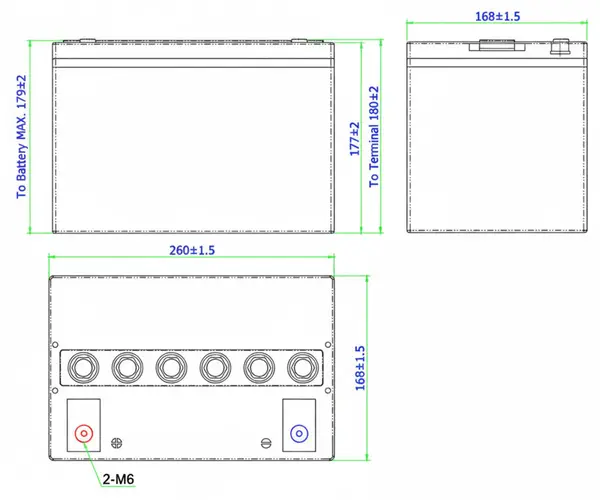

Dimensions

Characteristics
- Full Gel lead-acid battery
- Nominal voltage 12V
- Capacity 55 Ah (C5) / 74.8 Ah (C20)
- 700 charge cycles for intensive use
- F-M6 poles with positive polarity on the left
- Dimensions 26 x 16.8 x 18 cm
- Operating temperature from -20°C to +50°C
- High purity materials
- Highly stable polymer separators
- Made in Italy




Standard Equipment
- FM6 Terminal

Optional Equipment
- Pair of M6 conical pole adapters - code 90000012

Technical Data
| Model | HZY12-60EV |
| Typology | Full Gel lead-acid battery |
| Nominal Voltage | 12V |
| Capacity | 55 Ah in C5 / 74.8 Ah in C20 |
| Number of Cycles | 700 |
| Pioli type | F-M6 |
| Polarity | Positive on the left |
| Operating Temperature | -20 ÷ +50 °C |
| Dimensions | 26 x 16.8 x 18 cm |
| Weight | 21.5 kg |
