Haze HZY12-26EV
12V 27.7Ah Gel Battery for Light Electric Vehicles
12V - 21.7÷25.7 Ah
Number of cycles 700
Full Gel Lead

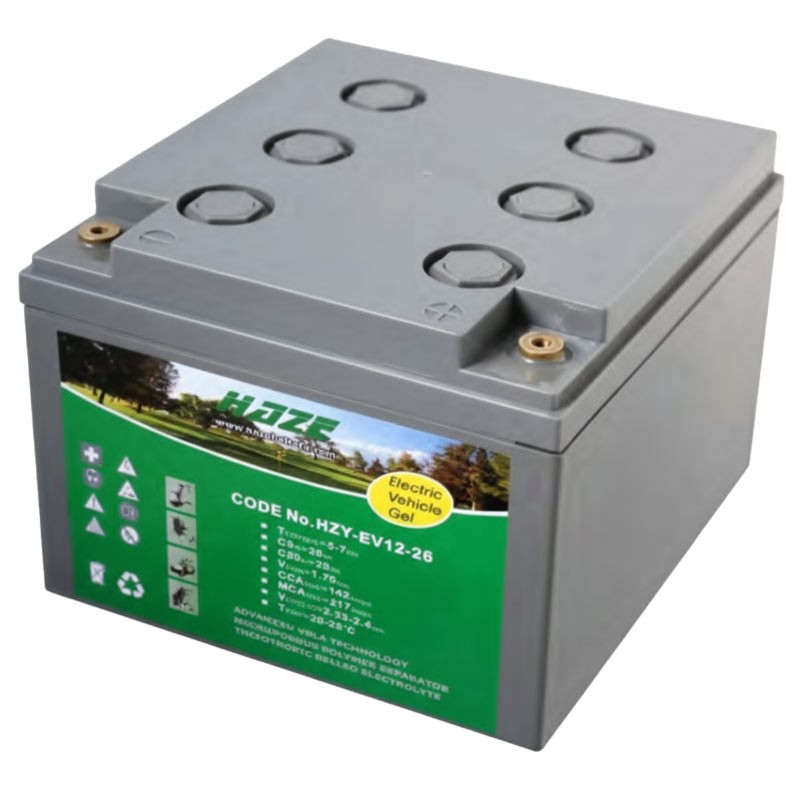

Haze HZY12-26EV - 12V 25.7Ah Gel Battery for Light Electric Vehicles
The Haze HZY12-26EV is a professional lead-acid battery with Full Gel technology, designed to meet the needs of industrial applications and high-intensity electric vehicles. With a lifespan of up to 700 charge cycles , it ensures consistent performance over time and high reliability even in continuous use. Its compact dimensions of 16.8 x 17.8 x 12.4 cm allow for simple and versatile installation, ideal for applications with limited space. The structure is designed to operate in complete safety in a temperature range of -20°C to +50°C , ensuring stability and continuity even in challenging environmental conditions. Produced entirely in Italy , it represents a quality choice for professionals and operators in the sector.

FUNCTIONAL SPECIFICATIONS
Full Gel Technology with Maximum Safety
The HZY12-26EV uses advanced Full Gel technology, which includes immobilized electrolyte, Amersil microporous separators, and a Degussa amorphous silica gelling agent. This construction eliminates the risk of leaks and improves safety during use, offering a longer life than conventional lead-acid batteries. The flat plates with a mixed grid, combined with ultra-pure lead, guarantee continuous performance even under intensive duty cycles.

Autonomy and Resistance to Charging Cycles
Designed for prolonged industrial use, the battery ensures a capacity of 21.7 Ah (C5) and 25.7 Ah (C20) , providing a reliable energy supply over time. The internal architecture is designed to sustain up to 700 charge cycles , maintaining a stable voltage and constant performance throughout the product's operating life.
Compact Size and Standard Connections
Thanks to its compact dimensions of 16.8 x 17.8 x 12.4 cm and a weight of 8 kg , the HZY12-26EV can be easily installed even in tight spaces. The positive polarity on the right and the F-M6 terminals allow for quick and safe connections, ensuring compatibility with the main electrical systems used in industrial settings and reducing installation times.


Charging Voltages and Integrated Protections
The battery is compatible with controlled charging parameters: maintenance between 2.27 and 2.3 VPC , cyclic charging between 2.35 and 2.4 VPC and a maximum voltage of 2.4 VPC , with ripple less than 3.5% . The level of safety is further increased by the presence of an EPDM vent valve and terminals sealed with epoxy resin , which prevent electrolyte leaks and guarantee reliability even in the most demanding applications.
Quality Construction Made in Italy
Manufactured entirely in Italy , the HZY12-26EV uses a high-strength ABS container and grids made of lead-calcium-tin alloy . The high construction standard and careful selection of materials ensure structural strength, chemical stability, and long-lasting performance, making this battery a reliable solution for industrial professionals.
Why choose a Gel battery?
- Reliable recovery even after deep discharges , without the need for immediate recharging
- Designed for daily use with repeated cycles
- Stable performance over long duration discharges
- Good operation in high temperature environments
- Immobilized electrolyte that eliminates stratification
- Low self-discharge and less maintenance required
- Positive plate protection for longer cycle life
- High charge acceptance due to low internal resistance
- High resistance to water loss with proper refill management
- Highly stable polymer separator , resistant to mechanical stress and short circuits

Areas of Use
- Caravans and Campers

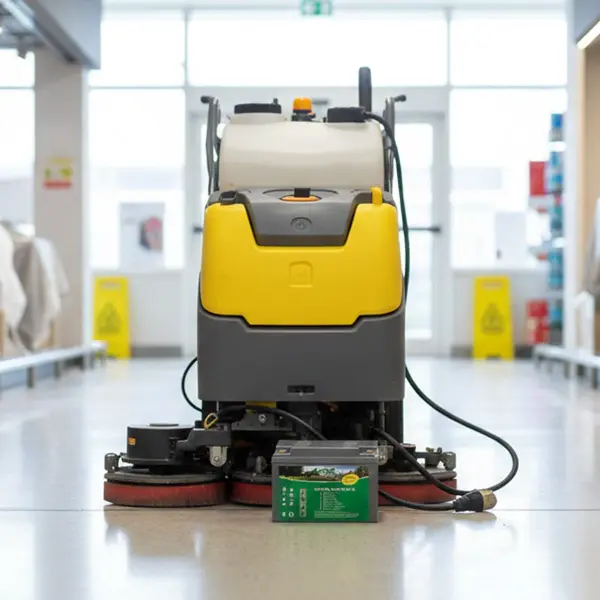

- Floor cleaning machines
- Solar systems
- UPS (Uninterruptible Power Supply)
- Electric vehicles
- Nautical

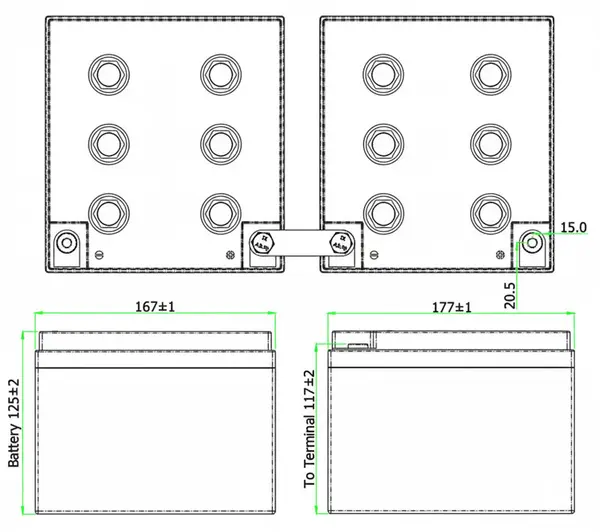

Dimensions

Characteristics
- Full Gel lead-acid battery
- Nominal voltage 12V
- Capacity 21.7 Ah (C5) / 25.7 Ah (C20)
- 700 charge cycles for intensive use
- F-M6 poles with positive polarity on the right
- Dimensions 16.8 x 17.8 x 12.4 cm
- Operating temperature from -20°C to +50°C
- High purity materials
- Highly stable polymer separators
- Made in Italy




Standard Equipment
- FM6 Terminal

Optional Equipment
- Pair of M6 conical pole adapters - code 90000012

Technical Data
| Model | HZY12-26EV |
| Typology | Full Gel lead-acid battery |
| Nominal Voltage | 12V |
| Capacity | 21.7 Ah in C5 / 25.7 Ah in C20 |
| Number of Cycles | 700 |
| Pioli type | F-M6 |
| Polarity | Positive on the right |
| Operating Temperature | -20 ÷ +50 °C |
| Dimensions | 16.8 x 17.8 x 12.4 cm |
| Weight | 8 kg |
