Fast Verdini LMD 500
Asphalt Concrete Saw

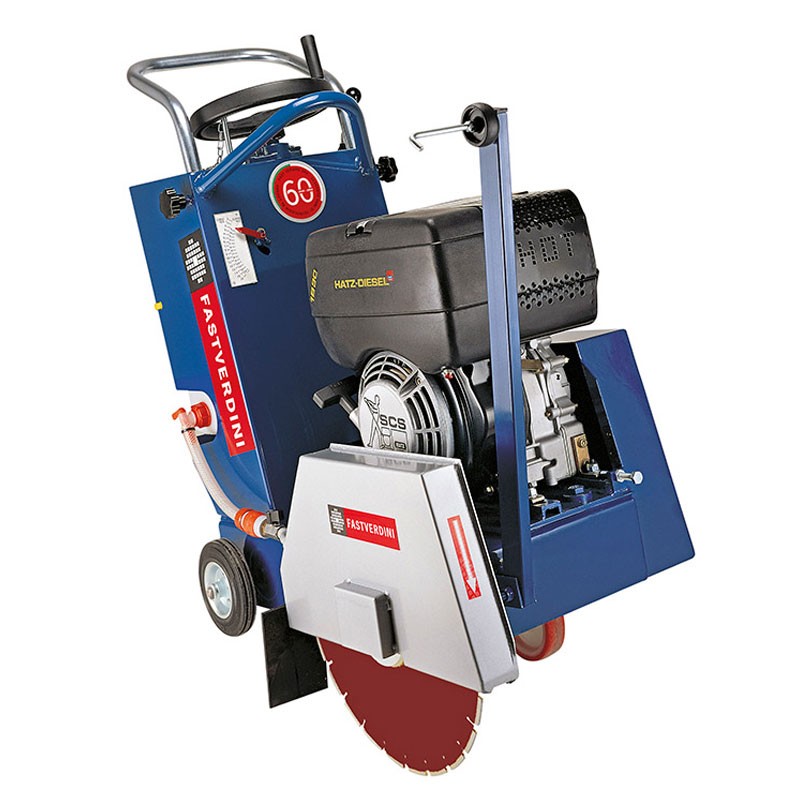

Fast Verdini LMD 500 - Water-Cooled Asphalt Cutting Saw

Fast Verdini LMD 500 is a Diesel saw designed for cutting asphalt and concrete, offering a balance between compact size, power, and ease of use. This professional machine is equipped with a depth indicator, a balanced lifting hook, and a water cooling system that allows refilling without removing the tank.

The LMD 500 is supplied with a 450 mm disc with a Max Cutting Depth of 160 mm, but can be equipped with a disc up to a maximum diameter of 500 mm, thus offering greater versatility in cutting applications, reaching a maximum depth of 185 mm.

Functional Specifications

The Fast Verdini LMD 500 Asphalt Cutting Saw is a highly versatile machine, ideal for road construction, renovation, and asphalt maintenance work.

Thanks to the included 450 mm disc, this machine can reach a maximum depth of 160 mm. However, it is possible to equip the saw with a disc up to a maximum of 500 mm (not included), thus increasing the cutting depth up to 185 mm.

Recoil Starter and Push Advancement

The recoil starter makes starting the LMD 500 Asphalt Cutting Saw easy and fast, eliminating complications in the starting process. The push advancement offers greater control over speed and direction, ideal for working with precision even in tight spaces.

Depth Adjustment

The depth adjustment system with a handwheel ensures precise and simple control, allowing the machine to be adapted to different cutting needs.

Water Cooling

One of the key features of the LMD 500 Asphalt Cutting Saw is its water cooling system. The 20-liter tank with a removable canister and double tap allows for quick and convenient refilling without having to remove the canister. This system helps reduce heat and dust during cutting, improving disc life and operator safety.

Engine of Choice

The Fast Verdini LMD 500 saw is equipped with a Yanmar L100 engine of 11 HP (8 kW), ensuring exceptional performance and significant cutting depth.

Ergonomic Handlebar

The handlebar of this asphalt cutting machine is designed for easy maneuverability, also thanks to the possibility of adjusting the grip height.

Features

• Recoil starter
• Cutting depth adjustment with handwheel
• Push advancement
• 20 L Water tank with removable canister and double tap
• Balanced lifting hook
• Handlebar with adjustable grip height
• Overall dimensions: machine 60 x 102 x 87 cm - transport 60 x 85 x 80 cm

Fast Verdini: Italian Brand for Construction and Road Equipment

Fast Verdini is a leading company in the construction and road equipment sector, renowned for its reliability and quality. It was one of the first Italian companies to focus on the production of compacting, cutting, and vibrating machinery, consolidating its reputation as a leading brand in the market.
